PREVENTIVE MAINTENANCE
10DEC05
PM4825-1
Page
22 of 30
2 Remove:
• 2 SCREWS
• RIGHT PLUSH PADDLE AY
• 2 SCREWS
• LIGHT SEAL PLUSH
3 Install:
• new LIGHT SEAL PLUSH
• 2 SCREWS
• RIGHT PLUSH PADDLE AY
• 2 SCREWS
4 Reverse Step 1.
5 Continue with Installing the New LEAF
SPRINGS.

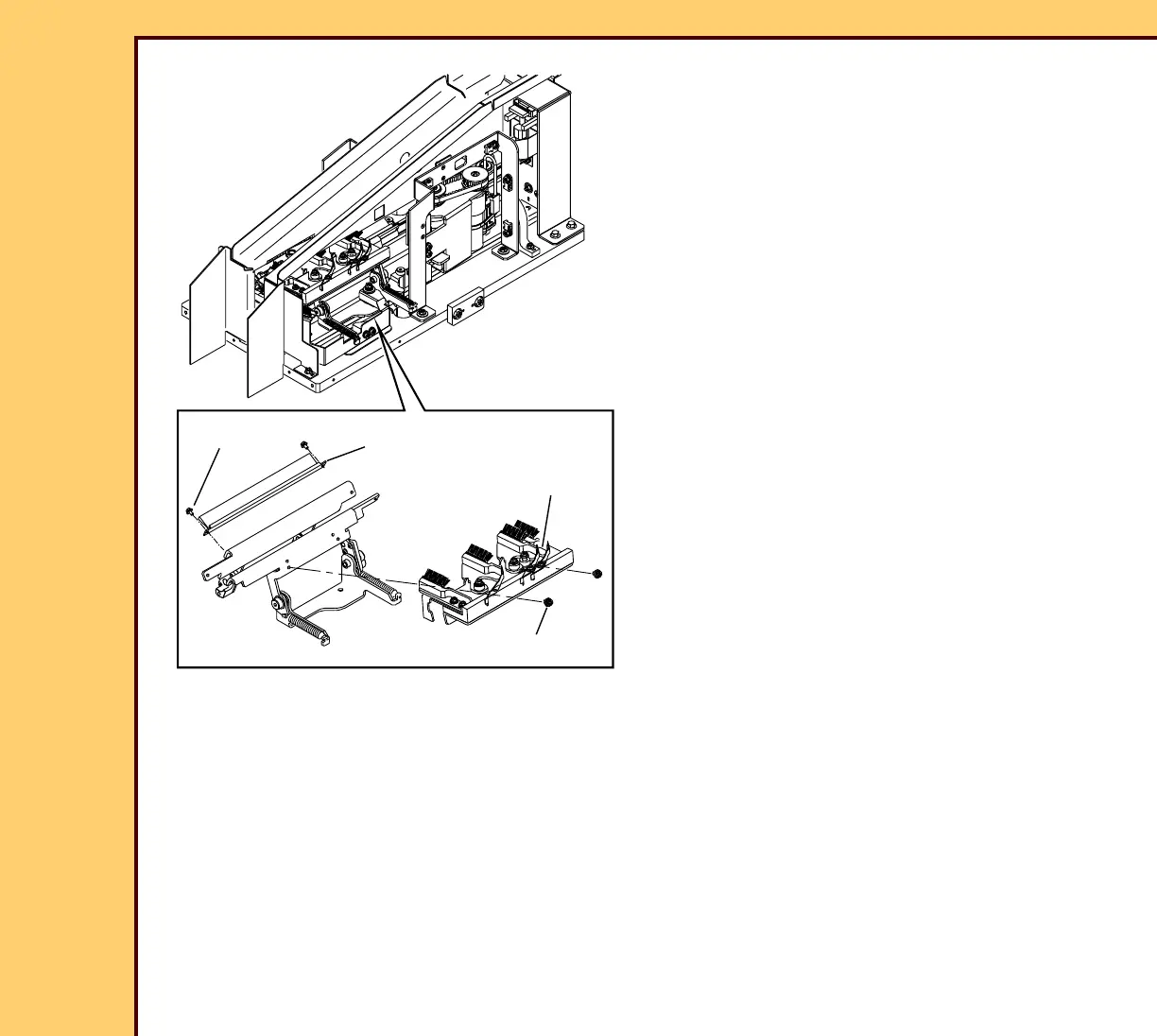

H194_1088GC
H194_1088GCA
2 SCREWS
RIGHT PLUSH
PADDLE AY
2 SCREWS
LIGHT SEAL
PLUSH
