Cleaning the imaging
guides — thorough
cleaning
Thorough cleaning of the imaging guides is recommended at the start of the
day and beginning of each shift.
NOTE: Hold the imaging guides at the green tabs to avoid getting fingerprints
on the imaging guides during the cleaning procedure.
Upper imaging guide

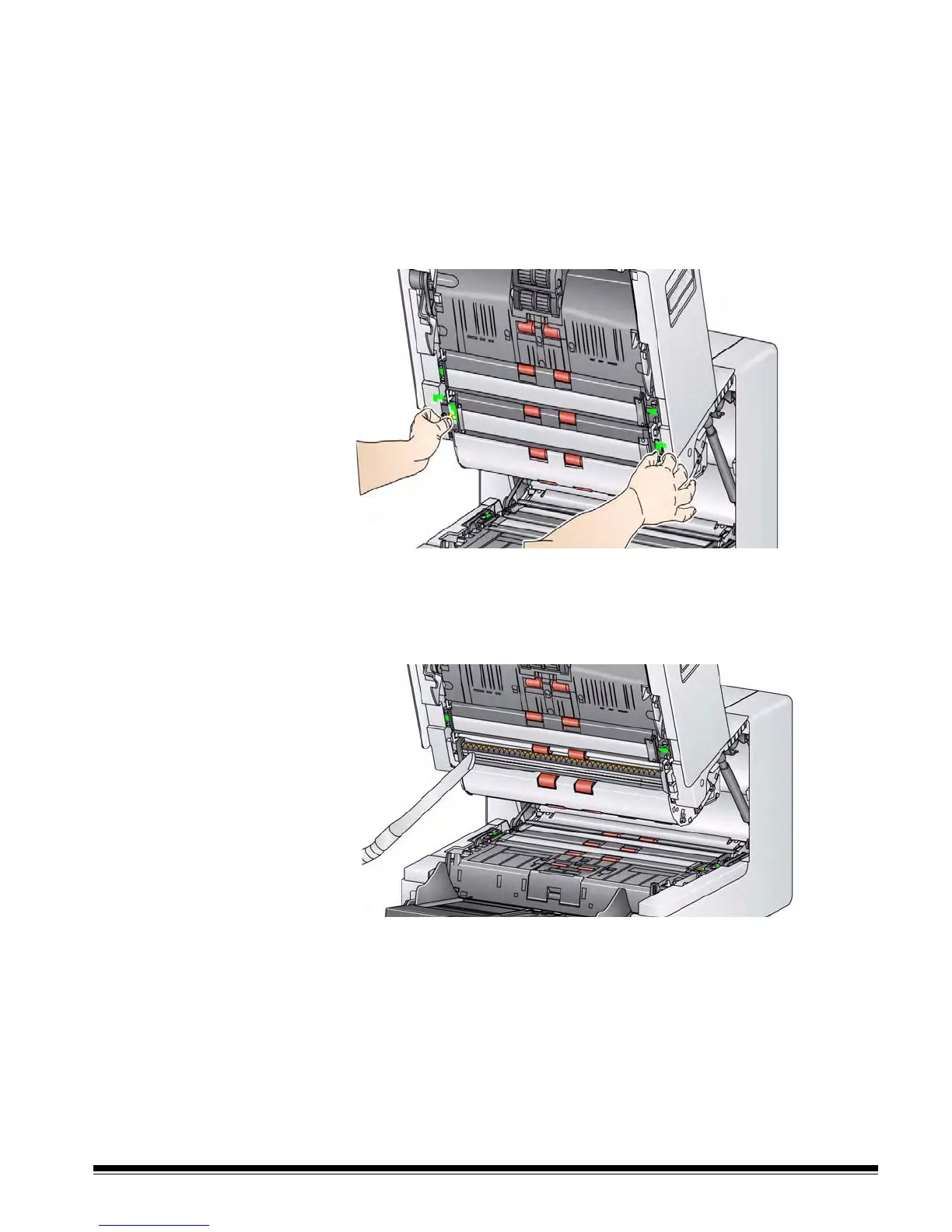

1. Open the scanner cover.
2. Turn the screw to the left on each end of the upper imaging guide and
remove it from its position. Set the imaging guide aside.
3. Carefully vacuum the area between the LEDs.
IMPORTANT: Avoid contact with the LEDs, as contact could cause
damage. Do not insert any objects into the area between the
upper LED strips, as you may damage the reflective mirrors
in the scan module on the illumination system.
4. Clean both the top and bottom of the imaging guide thoroughly with a
Staticide wipe.
5. Wipe the imaging guide again with an almost-dry Staticide wipe to remove
any streaks.
6. Reinstall the upper imaging guide.
