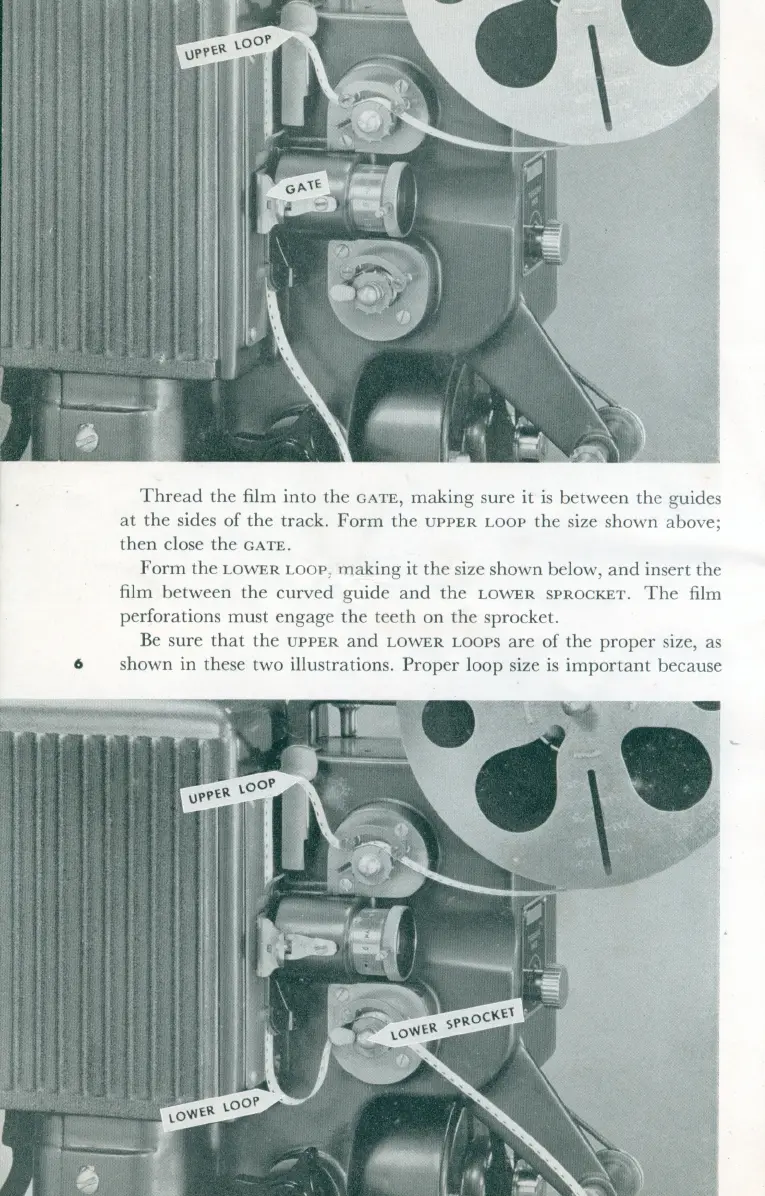

Thread the film into the GATE, making sure it is between the guides
at the sides of the track. Form the UPPER LOOP the size shown above;
then close the GATE.
Form the LOWER LOOP , making it the size shown below, and insert the
film
between the curved guide and the LOWER SPROCKET. The film
perforations must engage the teeth on the sprocket.
Be
sure that the UPPER and LOWER LOOPS are of the proper size, as
6 shown in these two illustrations. Proper loop size is important because
