Section 1 Introduction
All information in this publication represents data
available at time of print. Kohler Co. reserves the right to
change this literature and the products represented
without incurring obligation.
The safe and successful operation of a marine power
system depends primarily on the installation. See
Figure 1-1 or Figure 1-2. Use this manual as a guide to
install the marine generator set. For operating
instructions, refer to the operation manual.
Note: Only qualified persons should install the
generator set.
Marine generator set installations must comply with all
applicable regulations and standards.
The installer is responsible for improper installations
resulting in penalties from noncompliance with CARB or
EPA emission standards.
Refer to each model’s specification sheet for details.
Use the spec sheets as a guide in planning your
installation. Use current dimension drawings and wiring
diagrams.
598211
1
2
3
4
5
6
7
8
9
10
11
1. Heat exchanger
2. Coolant recovery tank
3. Seawater strainer*
4. Raw waterline
5. Intake through-hull strainer
6. Seacock*
7. Fuel line*
8. Worm clamps
9. Mounting tray
10. Mounting base
11. Exhaust line*
* Indicates components must conform to USCG regulations.

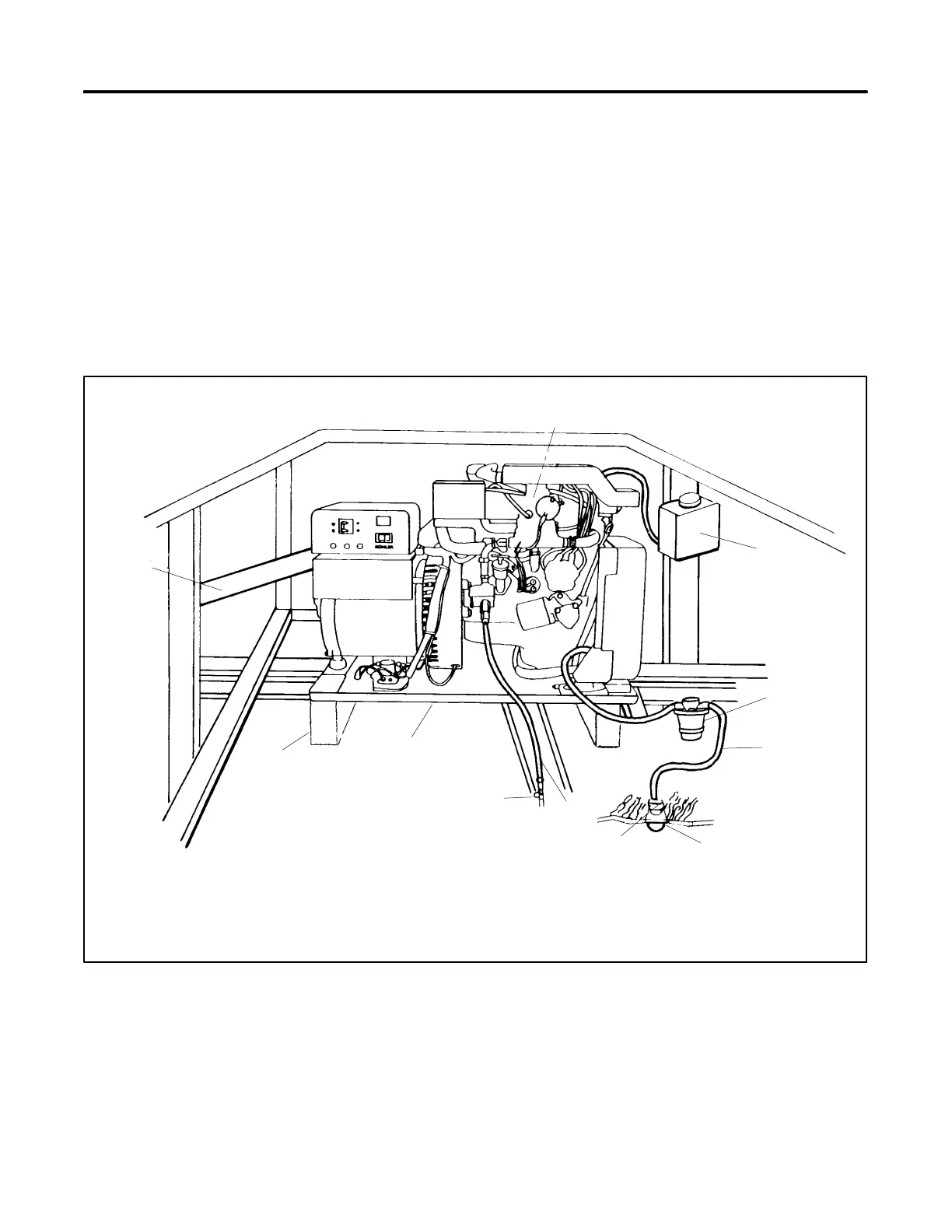

Figure 1-1 Typical Location and Mounting (5/7.3E, 4/6EF, 15/20C, and 12.5/16CF Models)
Note: See text for complete explanation of installation
requirements.
Note: Use two hose clamps on each end of all flexible
exhaust hose connections.
