TP-6843 7/15 Section 3 VSC Controller Operation 23
Section 3 VSC Controller Operation
3.1 VSC Generator Set Controller
All 6VSG generator sets are equipped with the VSC
generator set controller.
The VSC controls generator set and the optional
Programmable Interface Module (PIM) or
Communications Kit.
The VSC controller features include:
• Two-line x 16 character backlit digital display with
adjustable contrast
• OFF, AUTO, and RUN generator set master control
buttons
• Generator set status indicating LEDs (OFF, AUTO,
RUN)
• Up, Down, and Select buttons for navigation
through menus and adjustments
• Power system indicator LEDs to show power output
of the generator
3.2 Control and Indicators

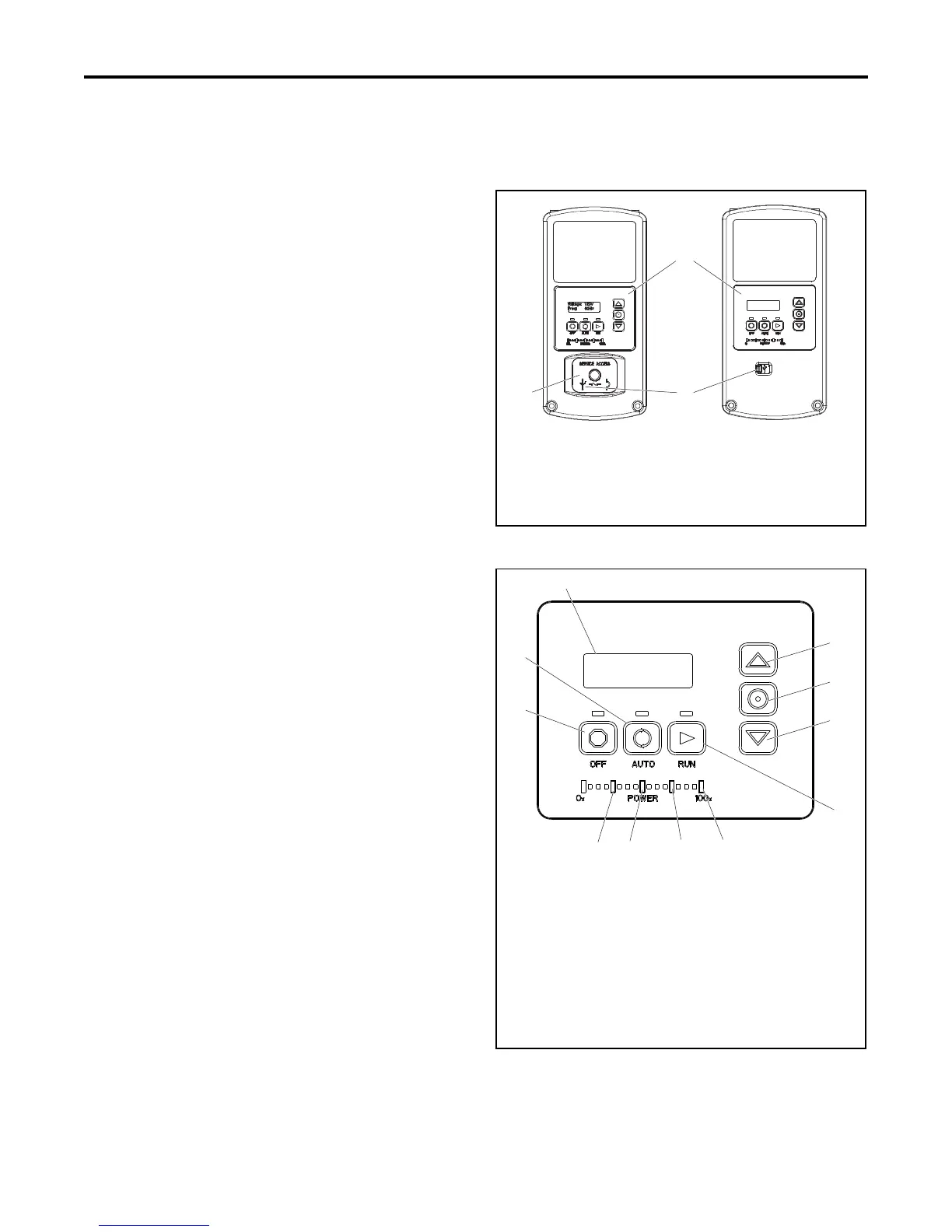

Figure 3-1 illustrates the VSC controller. See
Figure 3-2 for details of the controller’s user interface.
Figure 3-1
Figure 3-1 VSC Controls and Indicators
Figure 3-2
Figure 3-2 VSC User Interface
GM89864GM77569
1
2
3
1. User interface (see Figure 3-2)
2. Service access (see Section 5.4)
3. USB connection
1
10
3
2
5
11
4
6789
KPS_050
GM81498
1. 2-line LCD display
2. Up button
3. Select button
4. Down button
5. RUN button and LED
6. 100% load LED
7. 75% load LED
8. 50% load LED
9. 25% load LED
10. OFF button and LED
11. AUTO button and LED
