30 Section 3 VSC Controller Operation TP-6843 7/15
3.7 VSC Controller Menus
Controller menus display power system information,
including status information for the engine, generator,
and optional RBUS accessories, exercise settings,
and event history. Some menus allow changes to the
controller settings.
Diagrams in the following sections show how to
navigate through the menus.
Note: Use caution when navigating the controller
menus. In some menus, pressing the Select
button can enable editing of the controller
settings. Changing the settings to incorrect
values can adversely affect generator set
operation or render the unit inoperable.
If a setting on the controller display is flashing, edit
mode has been enabled. Press the OFF or AUTO
button to exit the edit mode.
3.8 Main Menu
Press the Select button once to bring up the main
menu. Overview is displayed. See Figure 3-9. Press
the down arrow button to step to the next menu,
Engine Metering. Use the UP and DOWN arrow
buttons to step up and down through the menus
shown in Figure 3-9.
The controller will exit the main menu after 5 minutes if
no buttons are pressed. To exit the main menu
immediately, press the controller’s OFF or AUTO
button.

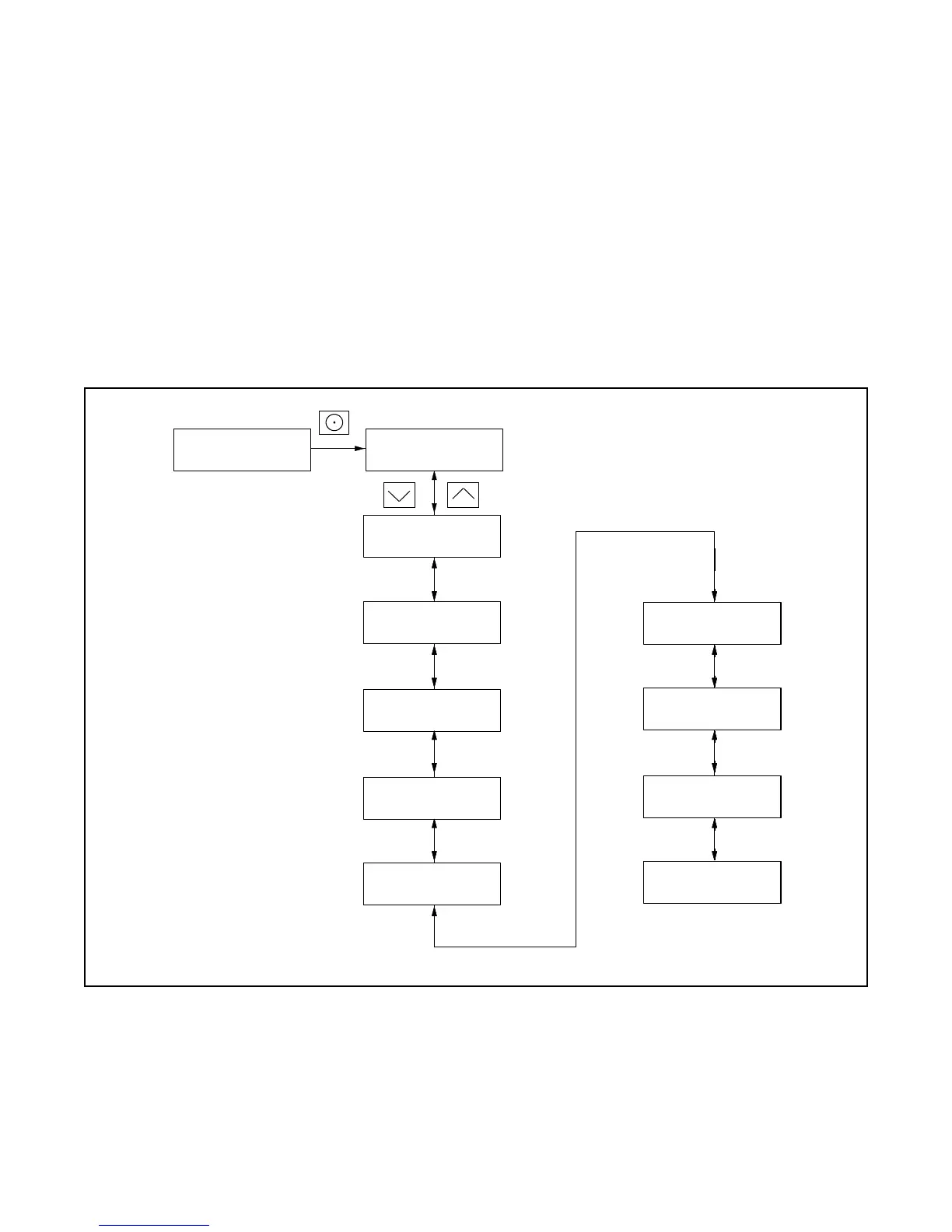

Figure 3-9
Figure 3-9 VSC Main Menu
Overview ---->
1.2 h
Engine ---->
Metering
Generator---->
Metering
Genset ---->
Information
Genset ---->
Run Time
Date ---->
and Time
Genset ---->
System
Event Log---->
PIM ---->
Status
Network ---->
Information
Status
Displays
Press the Up and Down arrow buttons
to move between menus.
Press OFF or AUTO to exit the menus.
To Next Page
