Reassembly
11562 690 05 Rev. E KohlerEngines.com

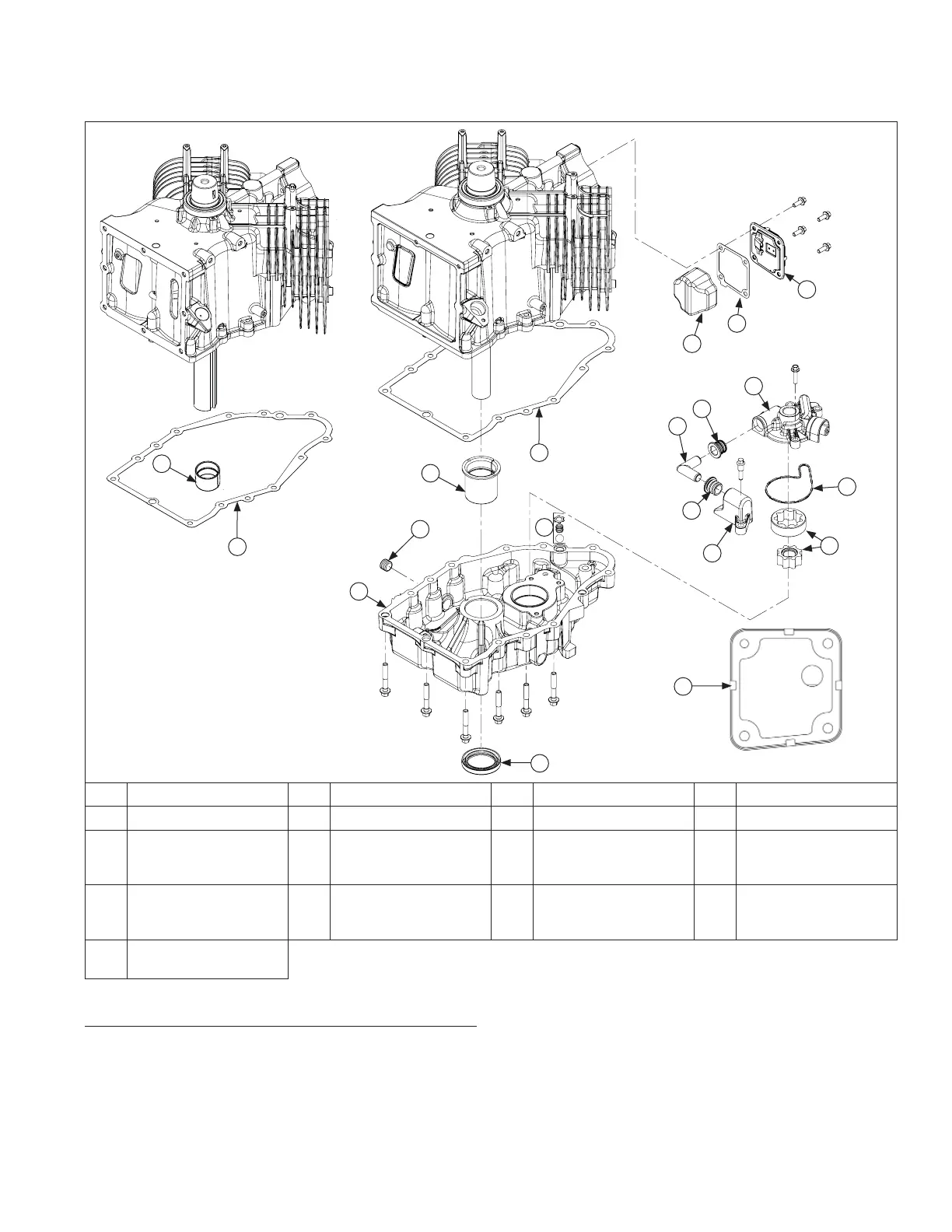

Breather/Oil Pan Components
1
2
4
3
Q
A
B
C
M
L
N
K
D
E
F
H
I
J
F
G
O
J
P
A Oil Pan B Gerotor Gears C Oil Pump O-Ring D Oil Pump Housing
E Pickup Tube F Inlet Seal G Pickup Screen H Drain Plug
I
Crankshaft Thrust
Bearing
(Flange PTO)
J Oil Pan Gasket K Breather Filter L Breather Gasket
M Breather Assembly N Oil Seal O
Crankshaft Non-
Thrust Bearing
(PTO)
P Check Ball Kit
Q
Breather Fastener
Torque Sequence
Install Oil Pan Seal and Crankshaft Bearing (PTO)
If bearing was removed in servicing, install a new
bearing using an arbor press and driver.
1. Make sure oil pan bore for bearing is clean, dry and
free of nicks or burrs.
2. Press crankshaft bearing (PTO) in place with notch
oriented in 12 o’clock position using an arbor press
and driver. Make sure bearing is fully seated against
fl ange.
3. Apply a light coat of clean engine oil to inner surface
of bearing.

Kohler Command PRO EFI Series Specifications

General

Fuel System	Electronic Fuel Injection (EFI)
Starter	Electric
Governor Type	Mechanical
Lubrication	Full Pressure
Cooling System	Air Cooled
Ignition System	Electronic
Engine Type	4-cycle, single cylinder, overhead valve (OHV)
