Kohler Command PRO EFI Series

Specifi cations
962 690 05 Rev. E
KohlerEngines.com
A
B
C
D
E
F
G
H
I
J
K
L
M
A Lifting Point B Cylinder #2 Shroud C Access to Oil Cooler D
156.2 mm (6.15 in.)
Cylinder #2 Shroud
Removal
E Lifting Point F
Fuel Filter
Fits 6.4 mm (0.25 in.)
Fuel Line
G
70.5 mm (2.78 in.)
Exhaust Port #2
H Mounting Hole "A"
I 652.3 mm (25.68 in.) J
Oil Drain Plug
1/2 NPT Inch
K
Engine Mounting
Surface
L 2.6 mm (0.10 in.)
M Muffl er (optional)

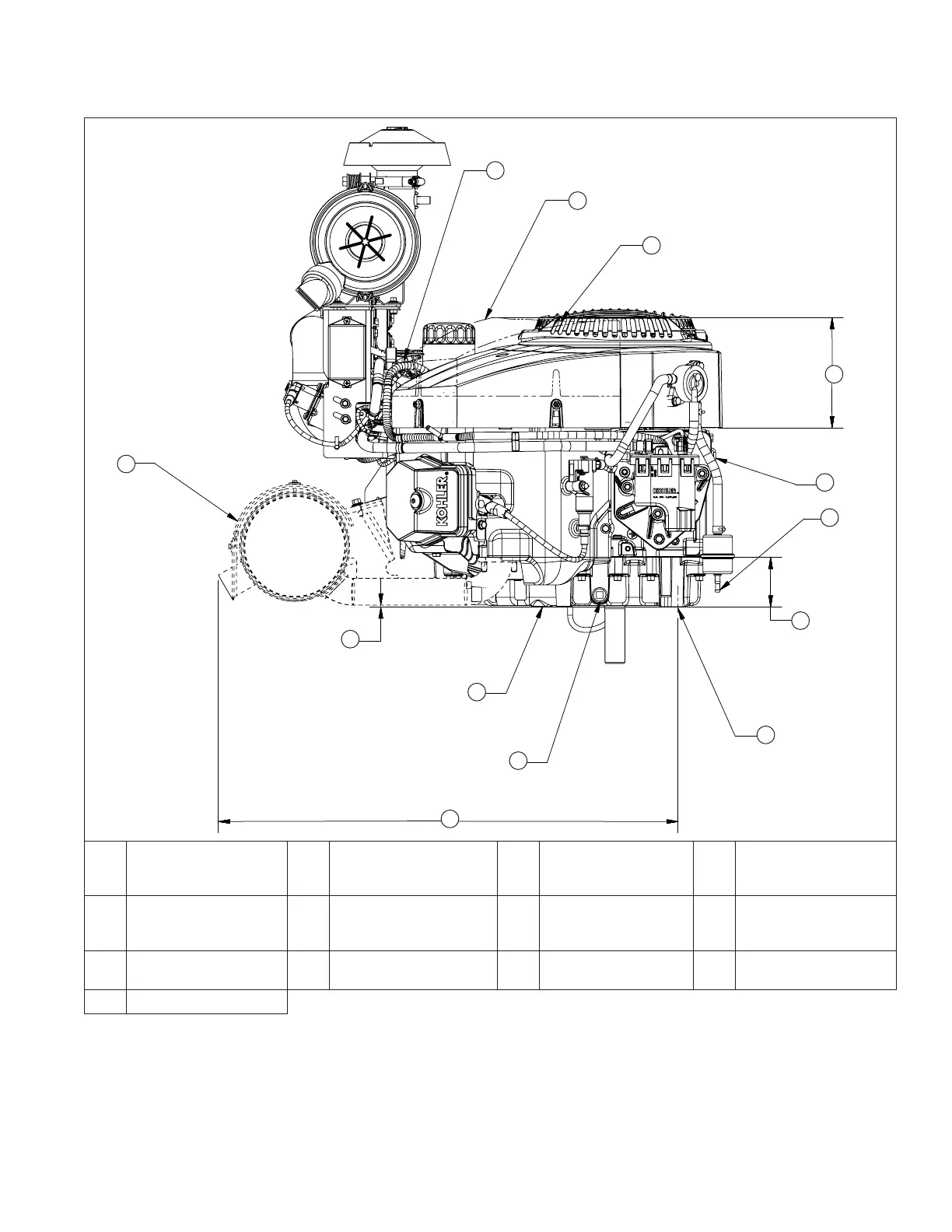

Engine Dimensions - Opposite Starter Side
