Reassembly
120 62 690 05 Rev. EKohlerEngines.com

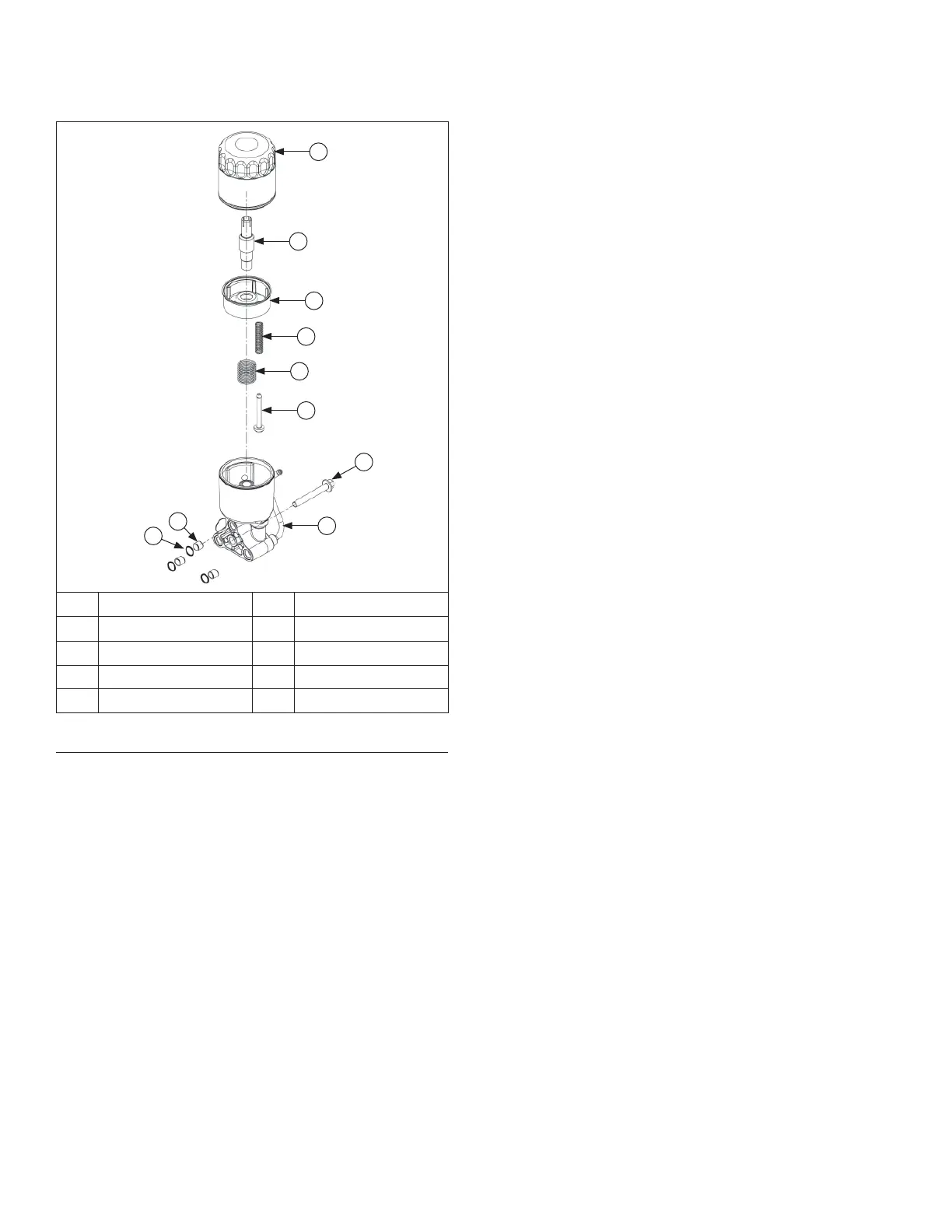

Oil Cooler/Filter Components
A
B
C
D
E
F
G
I
J
H
A Oil Filter B Oil Filter Nipple
C Cup D Valve Spring
E Cup Spring F Oil Filter Valve
G Screw H Oil Filter Housing
I Pin J O-Ring
Install Oil Filter Housing Assembly
Reassemble oil fi lter housing if disassembled previously.
Reassembly
1. Install small spring onto rubber valve, and insert
small end through corresponding hole in cup until
properly seated.
2. Install larger spring into fi lter housing.
3. Insert oil fi lter cup, aligning cutout with
corresponding section in housing.
4. Install nipple in housing and torque to 17.8 N·m
(158 in. lb.).
Installation
1. Make sure all sealing surfaces are clean and all
dowel pins are in position. Install or check new
O-rings are around all oil fi lter adapter dowel pins.
2. Install oil fi lter housing assembly and secure with M8
screw. Make sure housing is fl at on crankcase and
all O-rings remain in position. Torque screw to
23.7 N·m (210 in. lb.)
3. Oil fi lter may be installed now or upon completion of
engine assembly.
