Kohler Command PRO EFI Series User Manual

Reassembly
124 62 690 05 Rev. EKohlerEngines.com

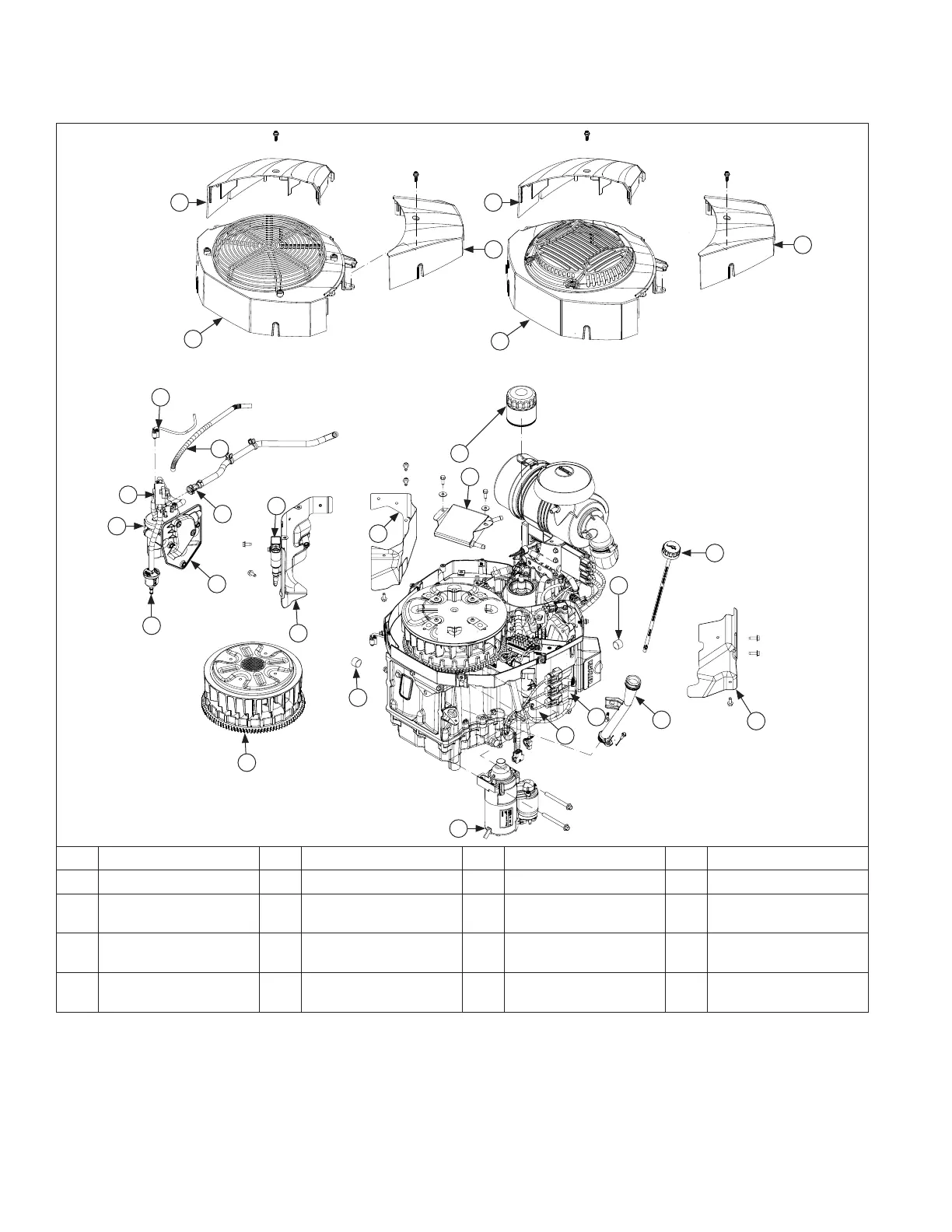

External Engine Components
M
B
S
Q
A
B
D
P
F
D
L
J
R
C
O
N
S
I
H
G
E
F
K
T
S
S
R
A Dipstick B Oil Drain Plug C Oil Fill Tube D Valley Baffl e
E Spark Plug Lead F Barrel Baffl e G Starter Assembly H Ignition Coil
I
Fuel Pump Module
Baffl e
J Fuel Filter K Fuel Pump Module L Fuel Pump
M Electrical Connector N Evap Line O
High Pressure Fuel
Line Connector
P Oil Cooler
Q Oil Filter R
Blower Housing with
Fixed Guard
S Cylinder Shroud T
Fan/Flywheel
Assembly

Kohler Command PRO EFI Series Specifications

General

Fuel System	Electronic Fuel Injection (EFI)
Starter	Electric
Governor Type	Mechanical
Lubrication	Full Pressure
Cooling System	Air Cooled
Ignition System	Electronic
Engine Type	4-cycle, single cylinder, overhead valve (OHV)
