EFI SYSTEM
62 690 05 Rev. E KohlerEngines.com

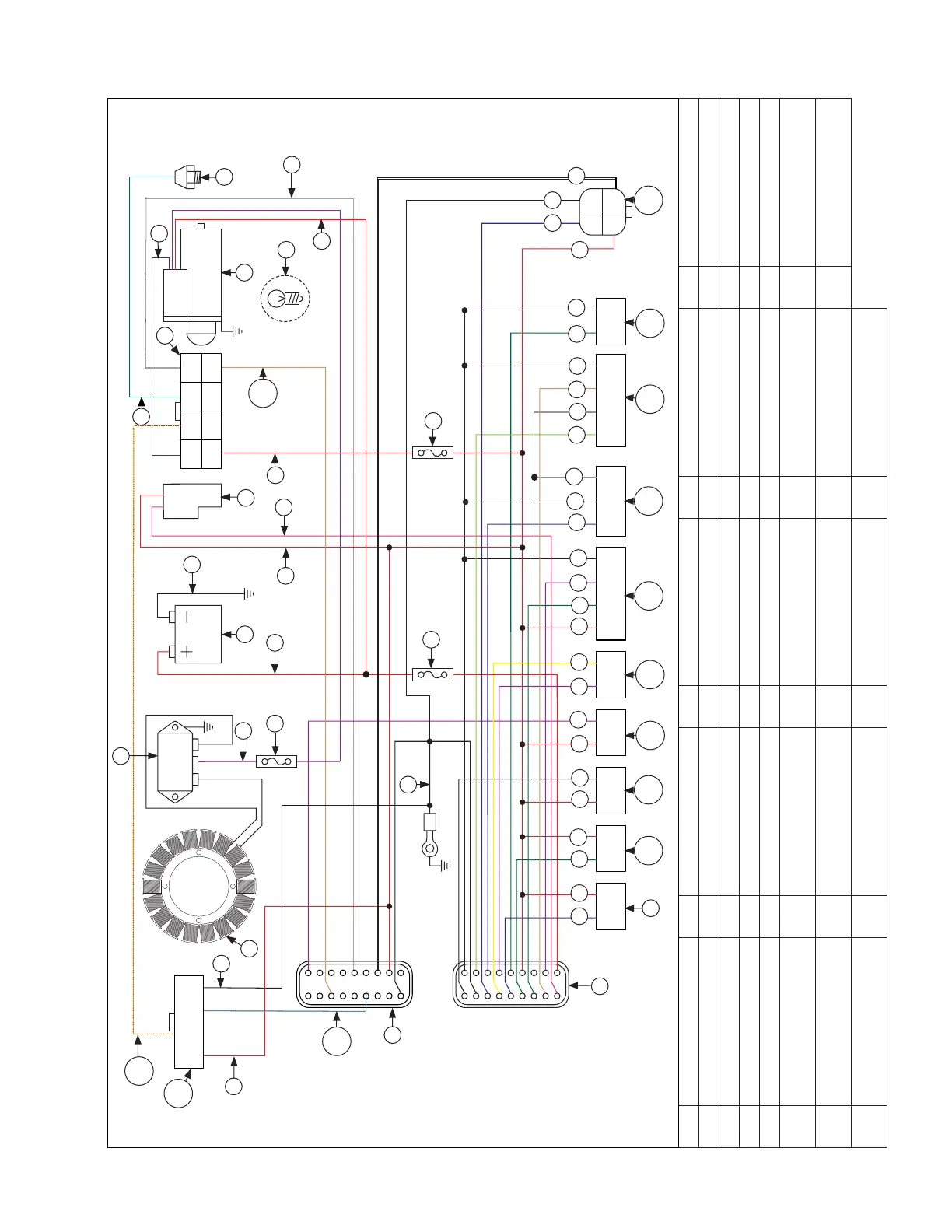

EFI Wiring Diagram 8-Terminal Connector (engines with TMAP sensor)
A Red B Red/Black C Red/White D Yellow E Light Green
F Dark Green G Dark Blue H Purple I Pink J Tan
K White L Grey M Black N Stator O Rectifi er-Regulator
P 30A Fuse Q Battery R Fuel Pump S 8-Terminal Connector T Starter Motor
U Oil Pressure Switch V MIL (Optional) W 10A Fuse X Black Connector Y Grey Connector
Z Fuel Injector #1 AA Fuel Injector #2 AB Ignition Coil #1 AC Ignition Coil #2 AD
Crankshaft Position
Sensor
AE Oxygen Sensor AF
Throttle Position
Sensor
AG TMAP Sensor AH
Oil Temperature
Sensor
AI Diagnostic Connector
AJ Grey/Blue AK
Electronic Governor
only
AL Red/Yellow AM Tan (MIL Ground)
