Kohler Command PRO EFI Series User Manual

Governor System
78 62 690 05 Rev. EKohlerEngines.com
B+
10
8
12
13
14
1
2
6
7
1B
1A
2A
2B
Application Supplied
Speed Control Input
Operation Input Voltage:
0-1 Volts at Idle/9+ Volts at High Speed
Device
Ground
Power
Speed Signal
ECU Speed Output
(speed signal)
DLA Driver
Controls
DLA
ECU
*
*
Green LED Light
Yellow LED Light

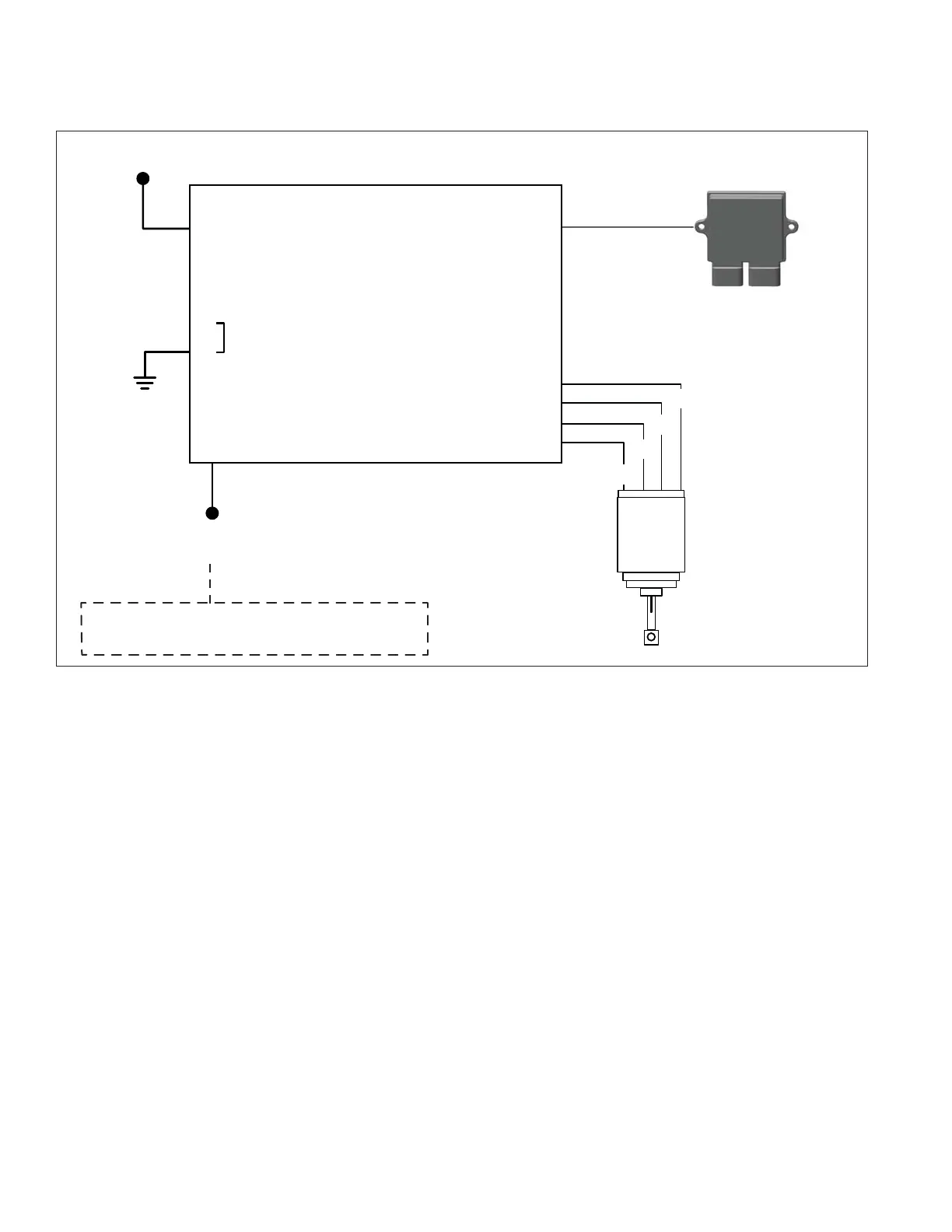

Basic Electrical Diagram of Electronic Governor System

Kohler Command PRO EFI Series Specifications

General

Fuel System	Electronic Fuel Injection (EFI)
Starter	Electric
Governor Type	Mechanical
Lubrication	Full Pressure
Cooling System	Air Cooled
Ignition System	Electronic
Engine Type	4-cycle, single cylinder, overhead valve (OHV)
