Fuel system
Overview

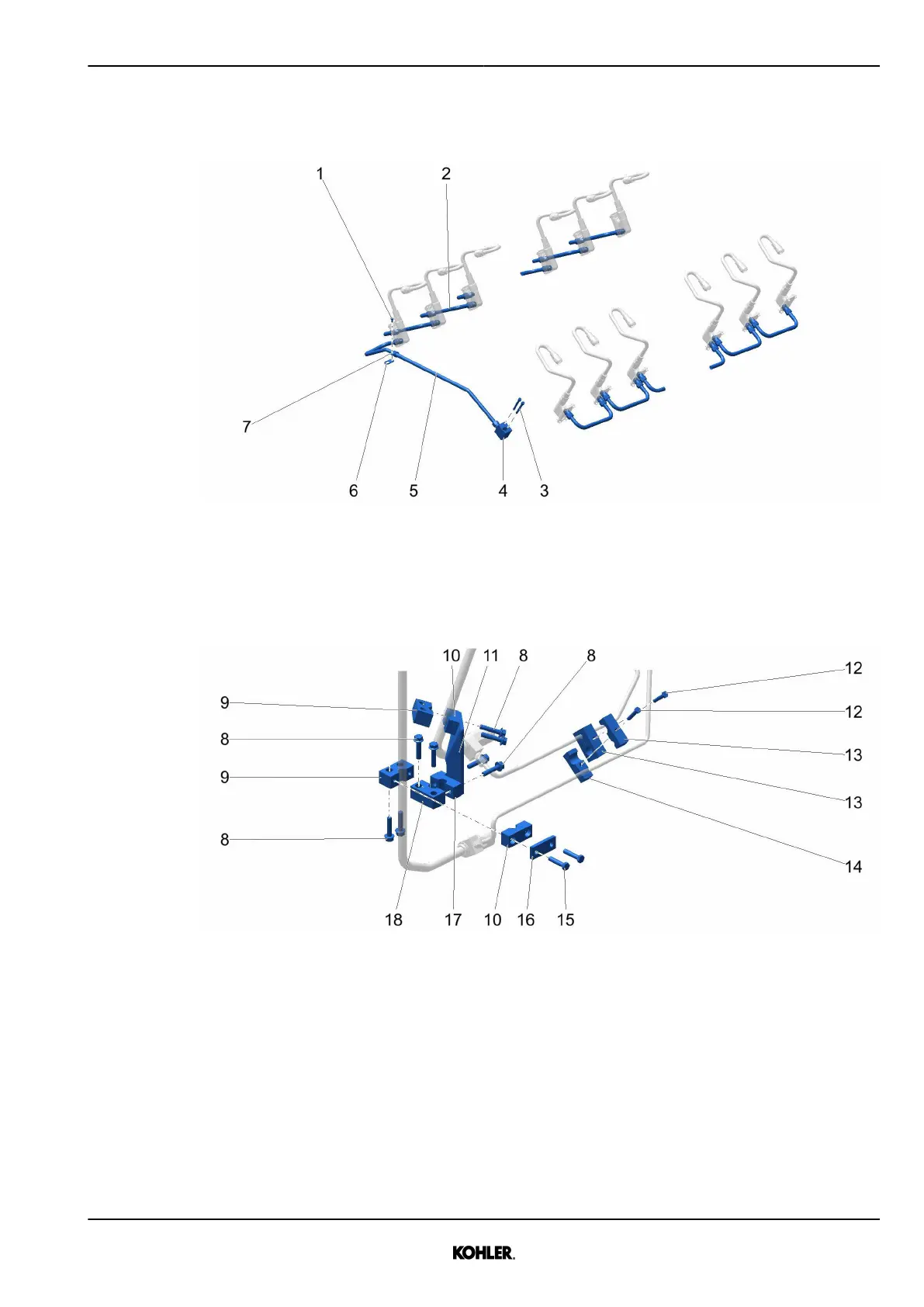

Fig. 120: Task overview
1 Screw (M8) 5 Fuel pipe
2 Fuel pipe 6 Retaining plate
3 Screw (M10) 7 Clamp
4 Distributor block
Fig. 121: Task overview
8 Screw (M10) 14 Clamp
9 Clamp 15 Screw (M10)
10 Clamp 16 Plate
11 Holder 17 Clamp
12 Screw (M8) 18 Clamp
13 Clamp
