Fuel system

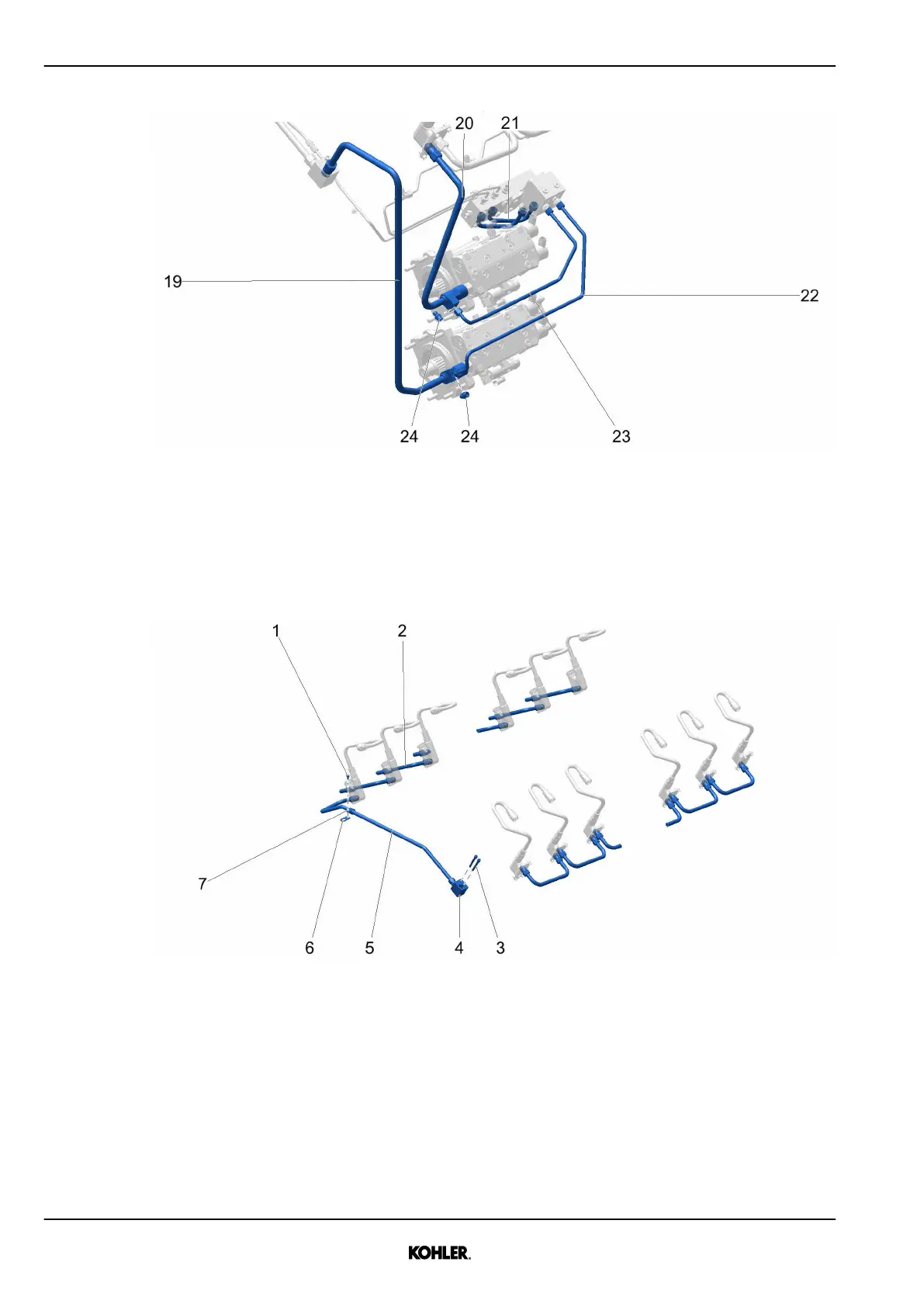

Fig. 122: Task overview
19 Fuel pipe 22 Fuel pipe
20 Fuel pipe 23 Fuel pipe
21 Fuel pipe 24 Flange joint
Removal
Fig. 123: Removing high pressure piping
u Remove screw 1 with retaining plate 6 and clamp 7.
u Remove screw 3.
u Remove distributor block 4.
u Remove fuel pipes 2, 5.
112
© 2021 by Kohler Co. All rights reserved.
KD62V12 33525088601_7_1 EN_US
2021-07
