Kohler KD62V12

Repair Service and Repair Manual
Exhaust gas system
Consumables and equipment
– Hot temperature grease
– Rags
– Cleaner
Overview

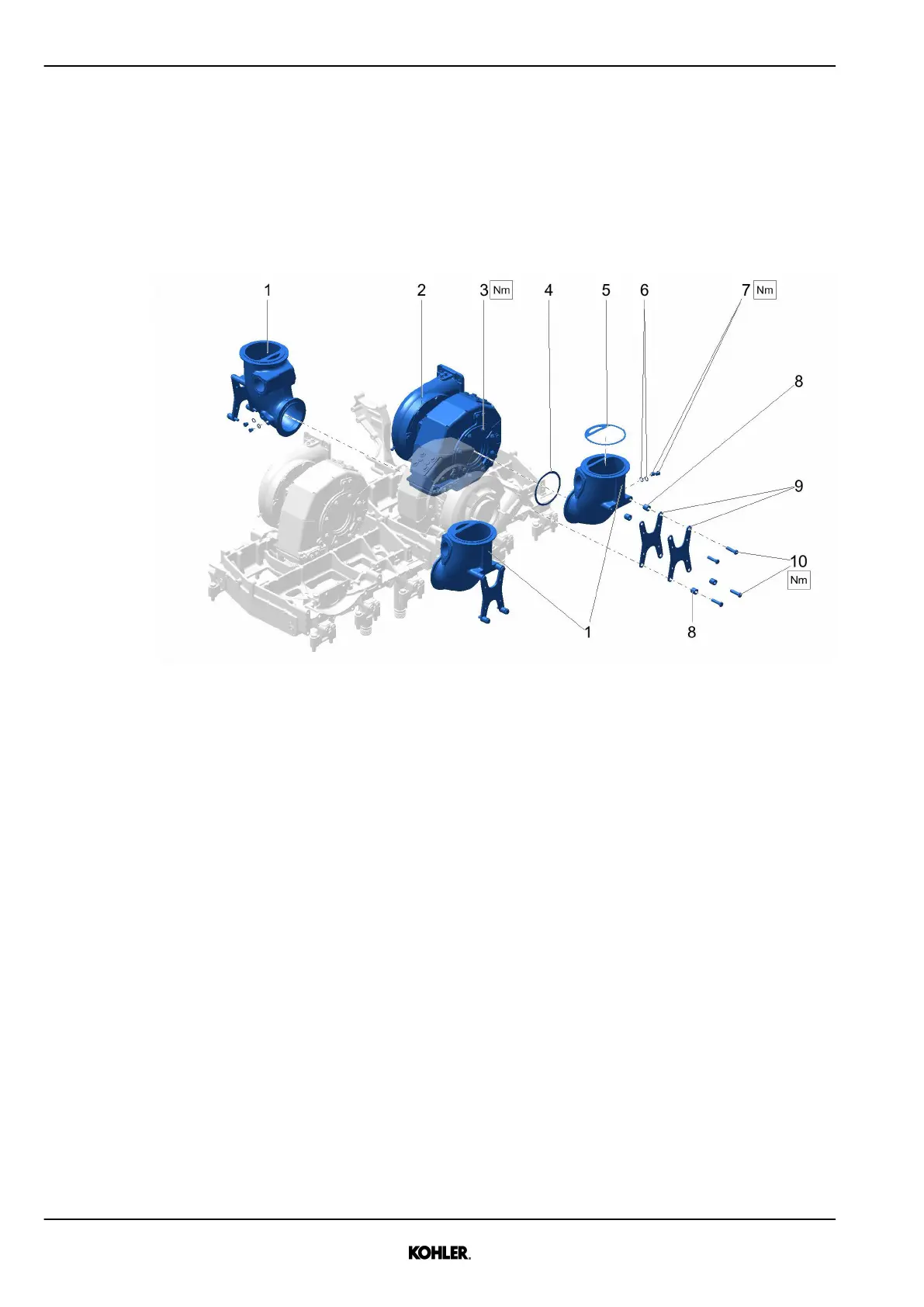

Fig. 180: Task overview
1 Exhaust elbow 6 Washer
2 Exhaust gas turbocharger 7 Screw plug
3 Nut (M10) 8 Distance sleeve
4 Seal 9 Retaining plate
See next page for continuation of the image legend
160
