Service and Repair Manual Repair
Exhaust gas system
5 Orifice plate 10 Screw (M12)

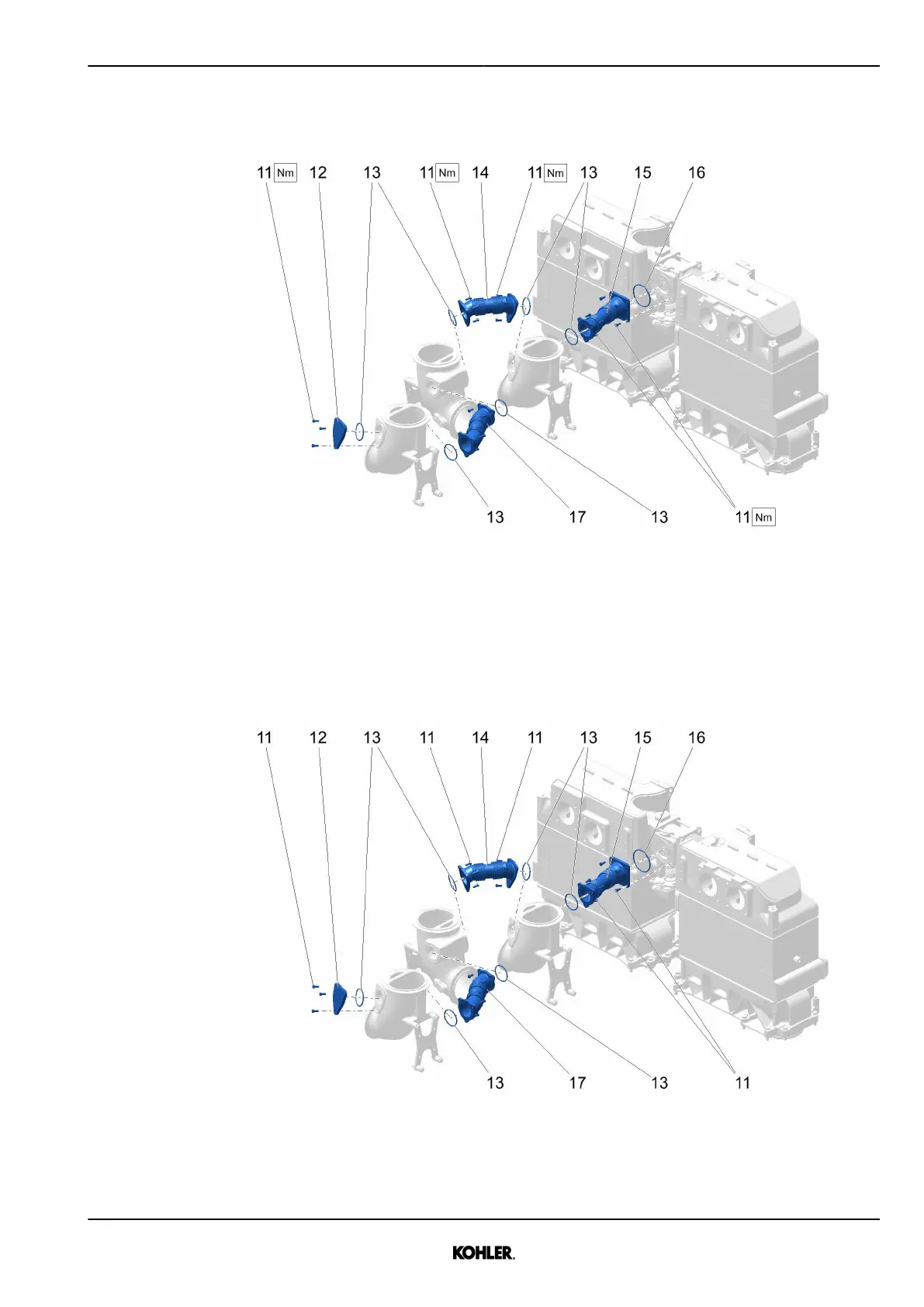

Fig. 181: Task overview
11 Screw (M8) 15 Compensator
12 Cover 16 O-ring
13 O-ring 17 Compensator
14 Compensator
Removal
Fig. 182: Removing compensators
u Remove screws 11.
u Remove compensators 14, 15, 17.
