Kohler KD62V12 Service And Repair Manual

Service and Repair Manual Repair
Lubricating system
u Tighten screws 4.
u Hand-tighten prelubricating pump 3 with clamps 2 and screws 1.
u Hand-tighten oil line 13 with screws 12 and o-ring 10.
u Install return valve 8.
u Tighten return valve 8.
u Hand-tighten oil line 9.
u Tighten screws 1.
u Tighten oil lines 9, 12 nuts.
Specific values
Not applicable.
Tightening specifications

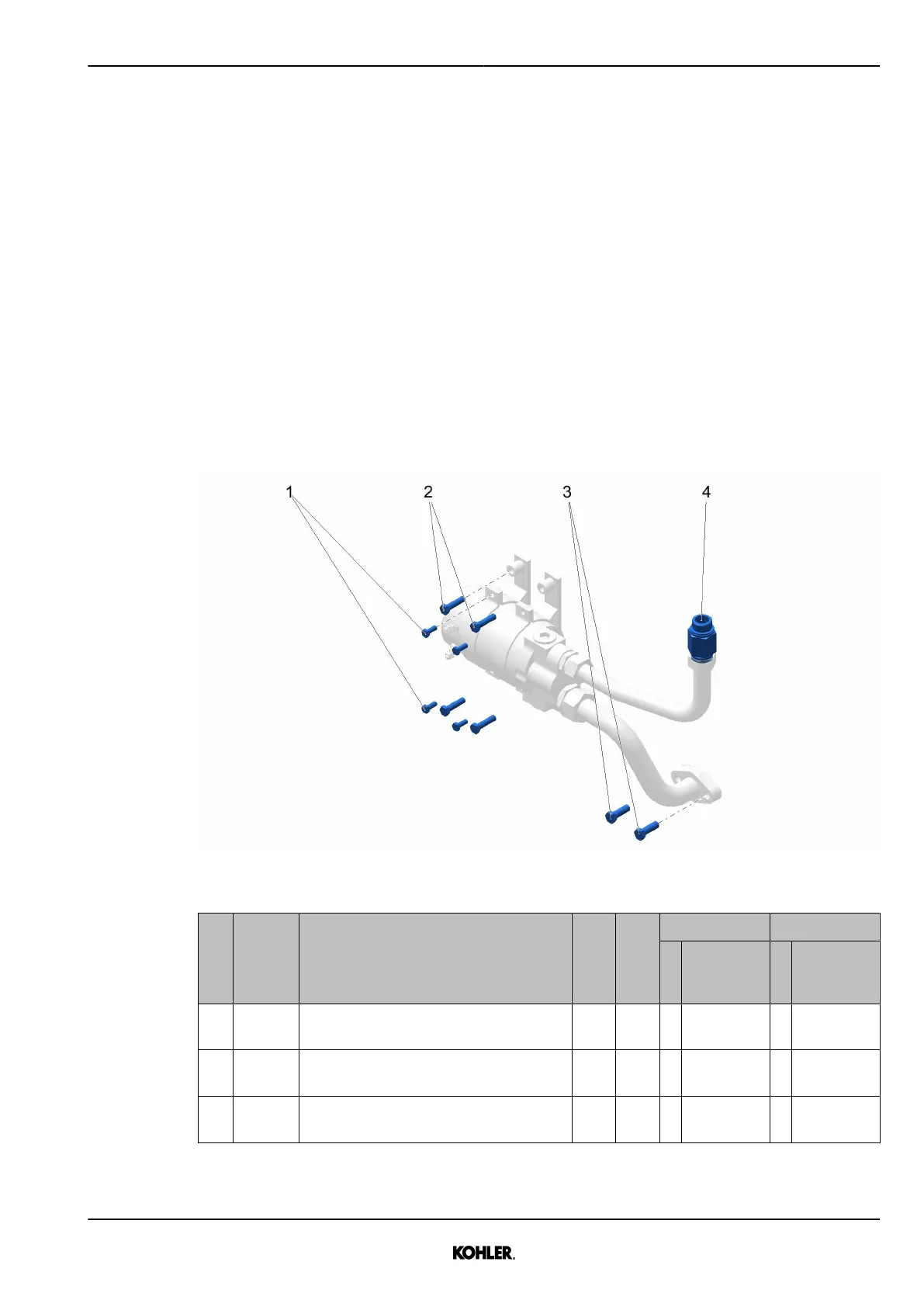

Fig. 218: Prelubricating pump screws and connections
Reference
Key Screw specifications
Lubricant *
Reuse**
Torque Angle (°)
Step
± 5%
Step
± 5°
1 - M8 10.9 480H - Yes 1 34 Nm
25 ft-lb
- -
2 - M10 10.9 FLZN - Yes 1 66 Nm
49 ft-lb
- -
3 - M12 10.9 FLZN - Yes 1 113 Nm
83 ft-lb
- -
KD62V12 33525088601_7_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
195
