Driving gear
u Install a cap on the sample container.
u Tighten the sample container cap by hand.
u Install a new screw plug into the lower sample opening 2.
Information
Always replace the screw plug.
u Tighten the screw plug to torque. (For more information see: Tightening specifications,
page 108.)
u Fill in the sample form delivered with the sampling kit.
u Place the sample container and form into the padded envelope and send them for analysis.
Specific values
Not applicable.
Tightening specifications

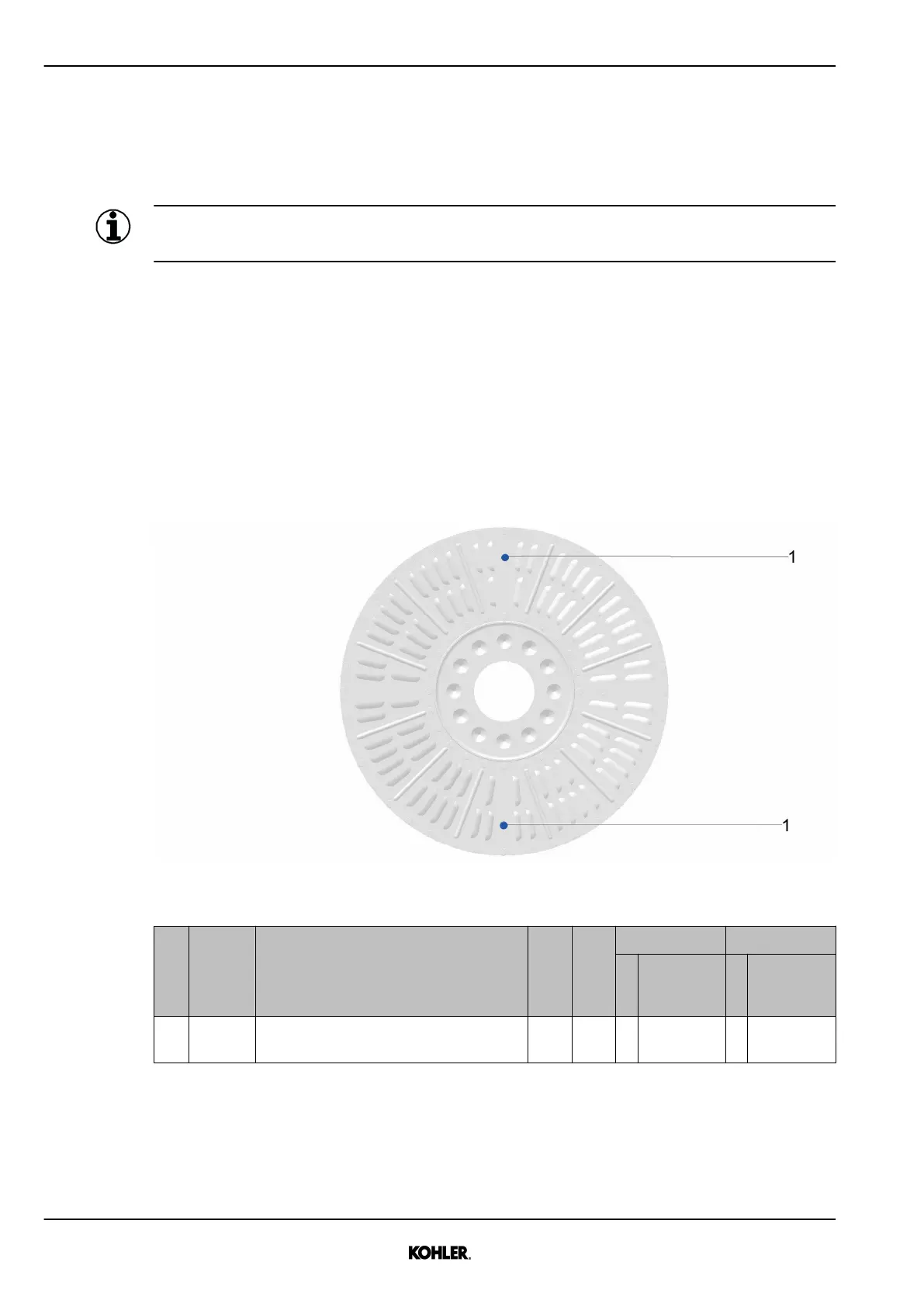

Fig. 118: Screw plugs for silicon oil collection
Reference
Key Screw specifications
Lubricant *
Reuse**
Torque Angle (°)
Step
± 5%
Step
± 5°
1 - Screw plug - No 1 15 Nm
11 ft-lb
- -
Tab. 27: Tightening specifications table
*Lubricants:
MG = Molykote G-n-plus
MW = Castrol Optimol paste white T
MH = Molykote HSC
108
© 2021 by Kohler Co. All rights reserved.
KD83V16 33525088901_2_1 EN_US
2021-07
