Service and Repair Manual Repair
Fuel system

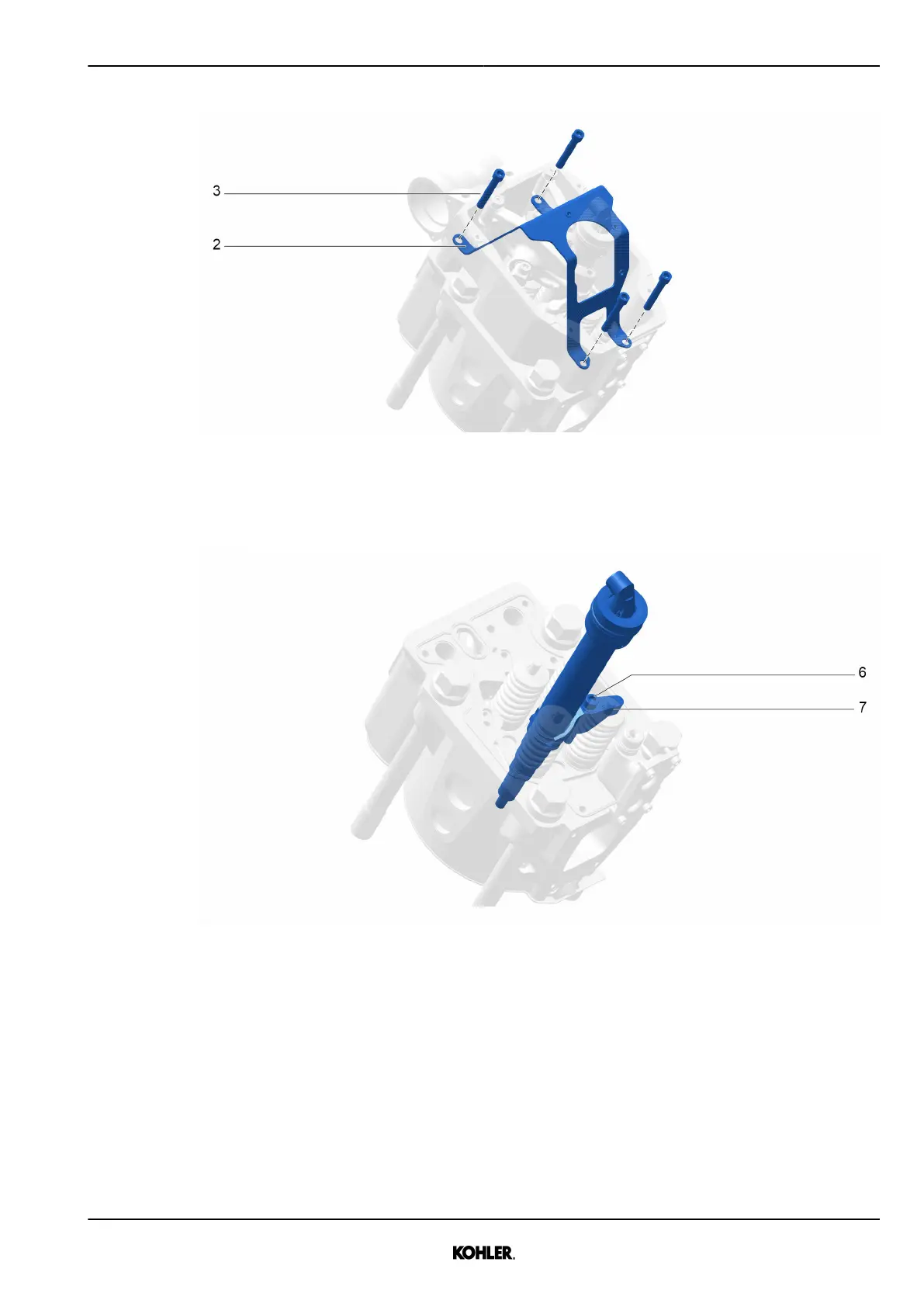

Fig. 138: Removing retaining plate
u Remove retaining plate 2 with screws 3.
u Close all open connections with the matching plugs (available as replacement parts).
Fig. 139: Removing clamp
u Remove clamp 7 by opening screw 6.
KD83V16 33525088901_2_1 EN_US
2021-07
