Service and Repair Manual Repair
Fuel system
XX = Loctite 243
YY = Loctite 577
**Refer to screws reuse rules. (For more information see: 5.3.2 Screws pre-tightening, reuse and
marking, page 274.)
3.6.5 Fuel filters removal and installation
Previous tasks
q Disconnect fuel pipes and sensors.
q Close fuel supply.
Specific safety instructions
Not applicable.
Special tools
Not applicable.
Consumables and equipment
– Rags
– Cleaner
– Bucket for fuel
Overview

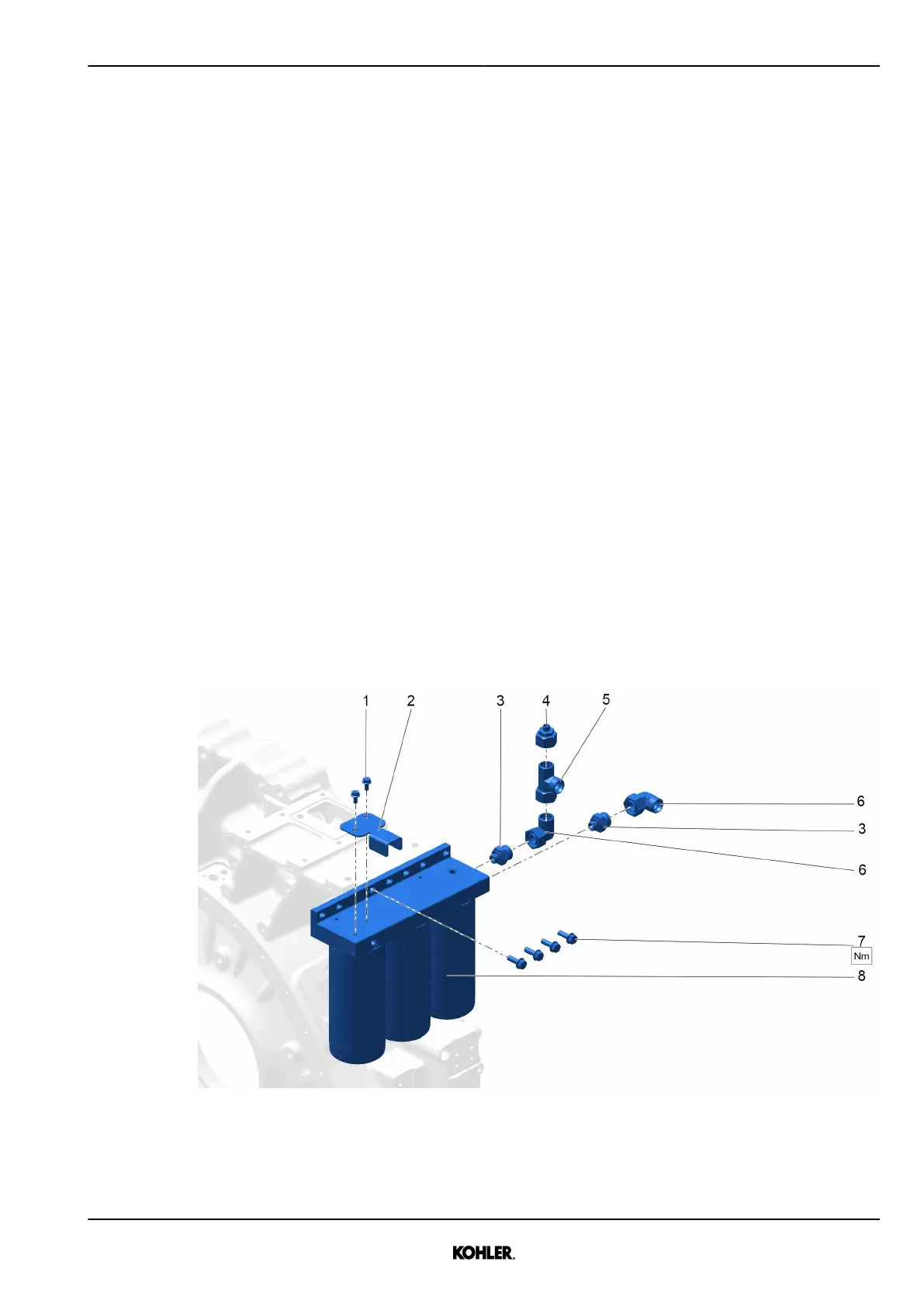

Fig. 149: Task overview
1 Screw (M8) 5 Flange joint
2 Protection guard 6 Flange joint
See next page for continuation of the image legend
KD83V16 33525088901_2_1 EN_US
2021-07
