Fuel system
3 Flange joint 7 Screw (M10)
4 Flange joint 8 Fuel filter unit
Removal
u Remove flange joints 3, 4, 5, 6.
u Remove screws 1.
u Remove protection guard 2.
u Remove screws 7.
u Remove fuel filter units 8.
Installation
u Install fuel filter units 8 with screws 7.
u Tighten screws 7 to torque.
u Screw protection guard 2 with screws 1.
u Tighten screws 1 to torque.
u Install flange joints 3, 4, 5, 6.
Specific values
Not applicable.
Tightening specifications

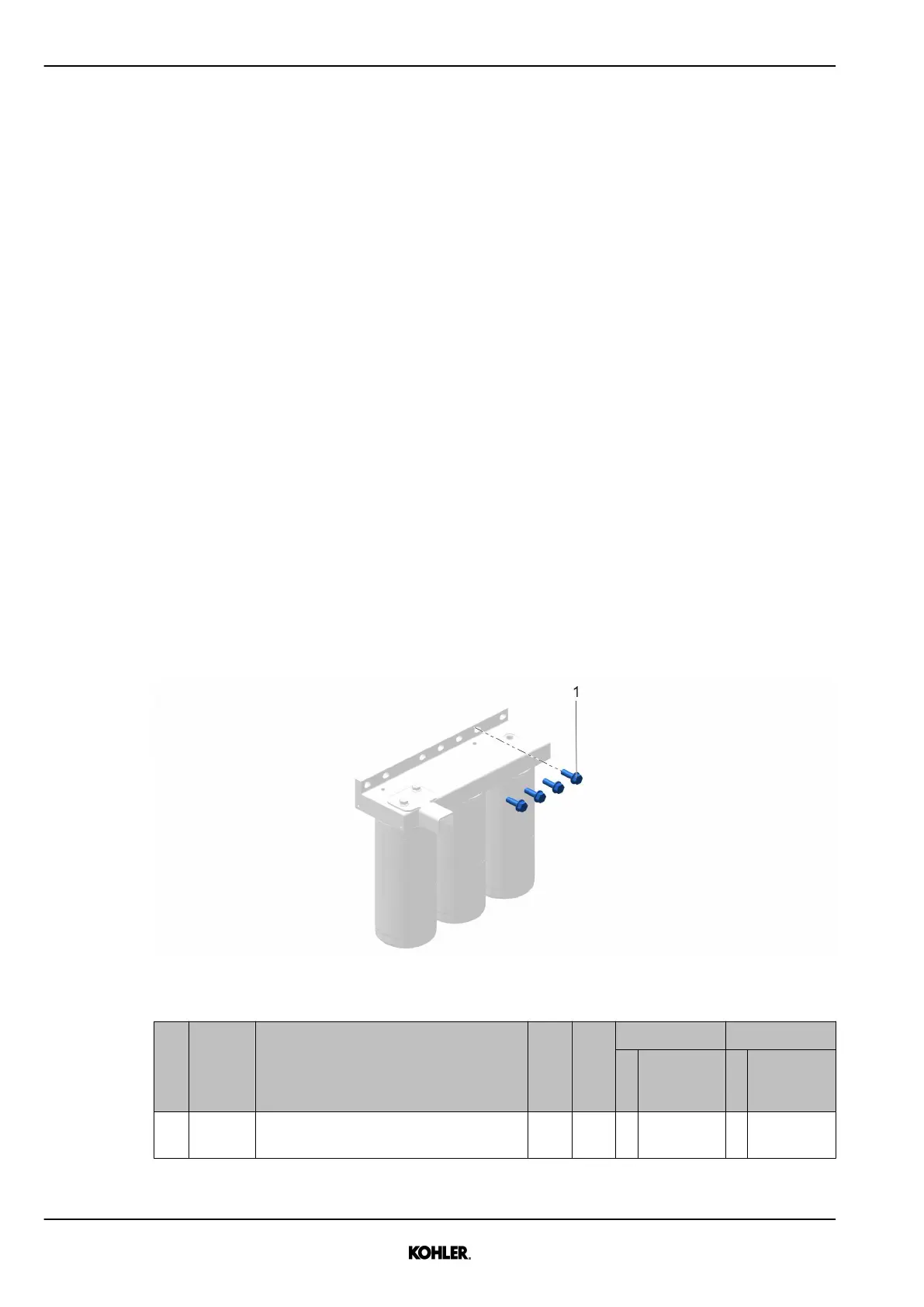

Fig. 150: Fuel filter screws
Reference
Key Screw specifications
Lubricant *
Reuse**
Torque Angle (°)
Step
± 5%
Step
± 5°
1 201AA EN 1665 M10x1.5x30-8.8-FLZN - Yes 1 25 Nm
18 ft-lb
- -
Tab. 32: Tightening specifications table
132
© 2021 by Kohler Co. All rights reserved.
KD83V16 33525088901_2_1 EN_US
2021-07
