*Lubricants:
MG = Molykote G-n-plus
MW = Castrol Optimol paste white T
MH = Molykote HSC
O = Engine oil
XX = Loctite 243
YY = Loctite 577
**Refer to screws reuse rules. (For more information see: 5.3.2 Screws pre-tightening, reuse and
marking, page 274.)
3.6.6 Leakage fuel block removal and installation
Previous tasks
q Disconnect leak fuel piping and sensors.
Specific safety instructions
Not applicable.
Special tools
Not applicable.
Consumables and equipment
– Rags
– Cleaner
– Bucket for fuel
Overview

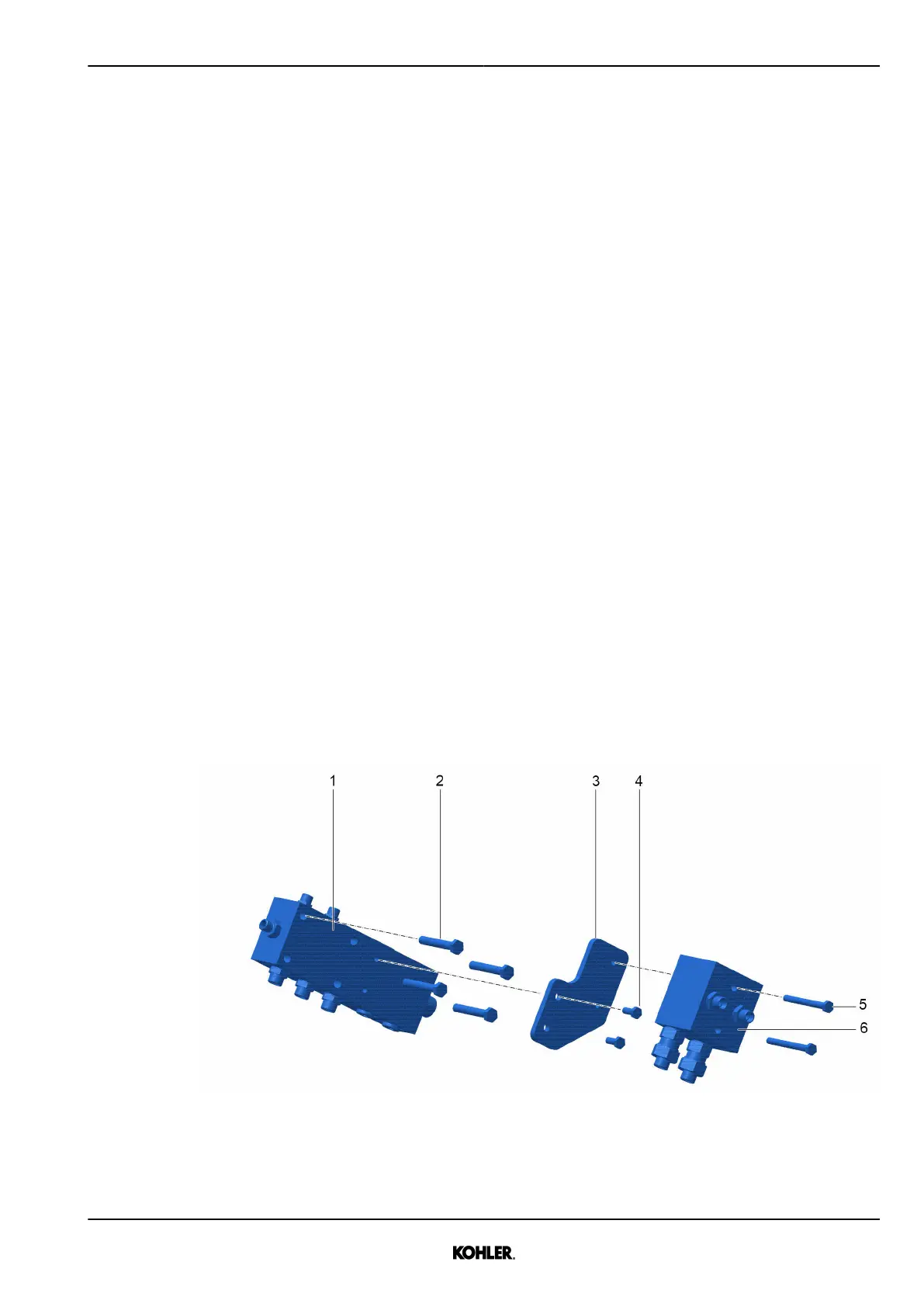

Fig. 151: Task overview
1 Fuel return block 4 Screw (M8)
2 Screw (M10) 5 Screw (M8)
3 Retaining plate 6 Break leakage detection block
KD83V16 33525088901_2_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
133
