Kohler KD83V16

Repair Service and Repair Manual
Charge air system
Consumables and equipment
– Rags
– Cleaner
– Grease (Optimol)
Overview

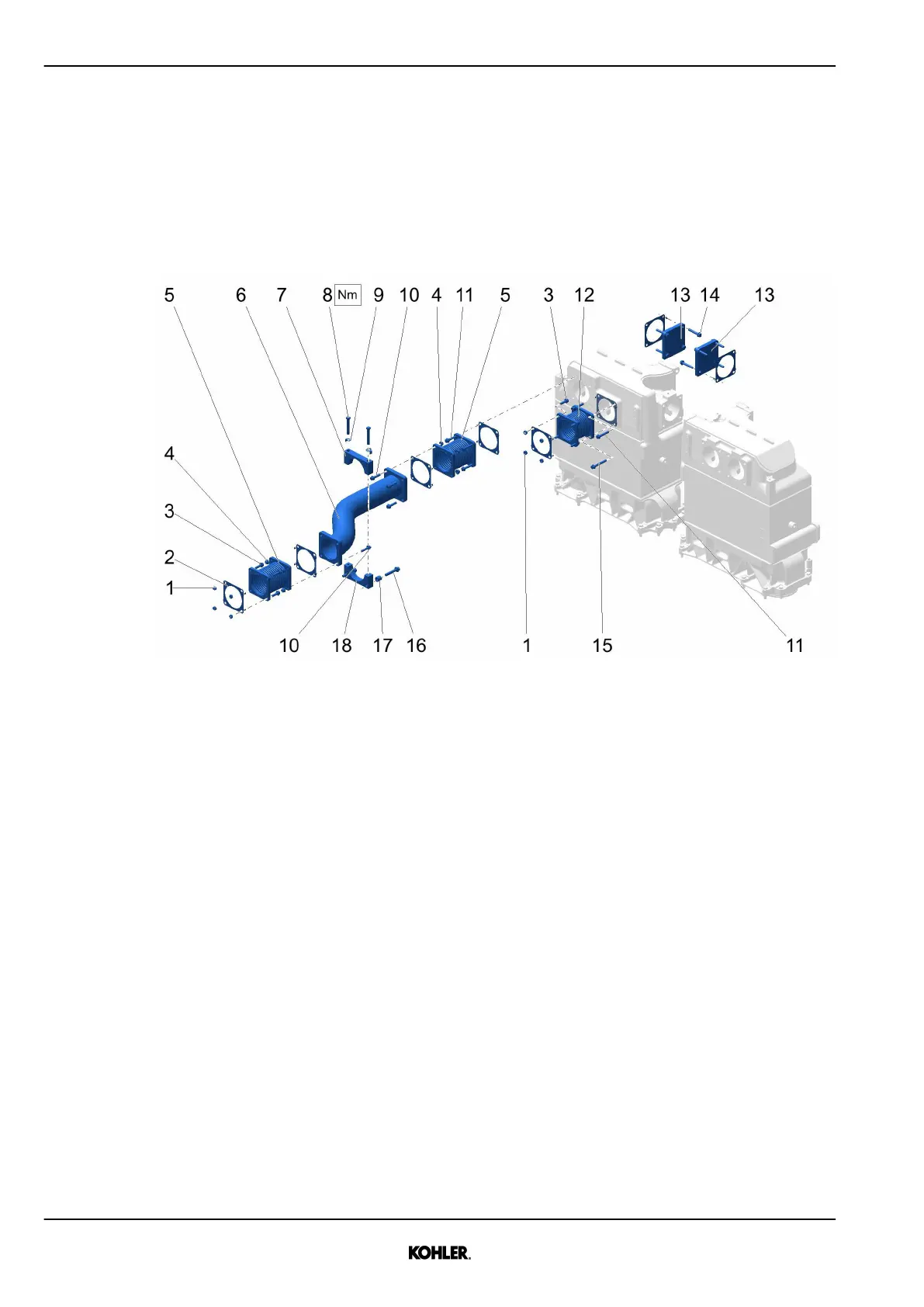

Fig. 161: Task overview
1 Nut (M10) 10 Screw (M10)
2 Seal 11 Screw (M10)
3 Screw (M10) 12 Compensator
4 Nut (M10) 13 End cover
5 Compensator 14 Screw (M10)
6 Pipe 15 Screw (M10)
7 Clamp 16 Screw (M12)
8 Screw (M12) 17 Distance sleeve
See next page for continuation of the image legend
142
