Exhaust gas system
Overview

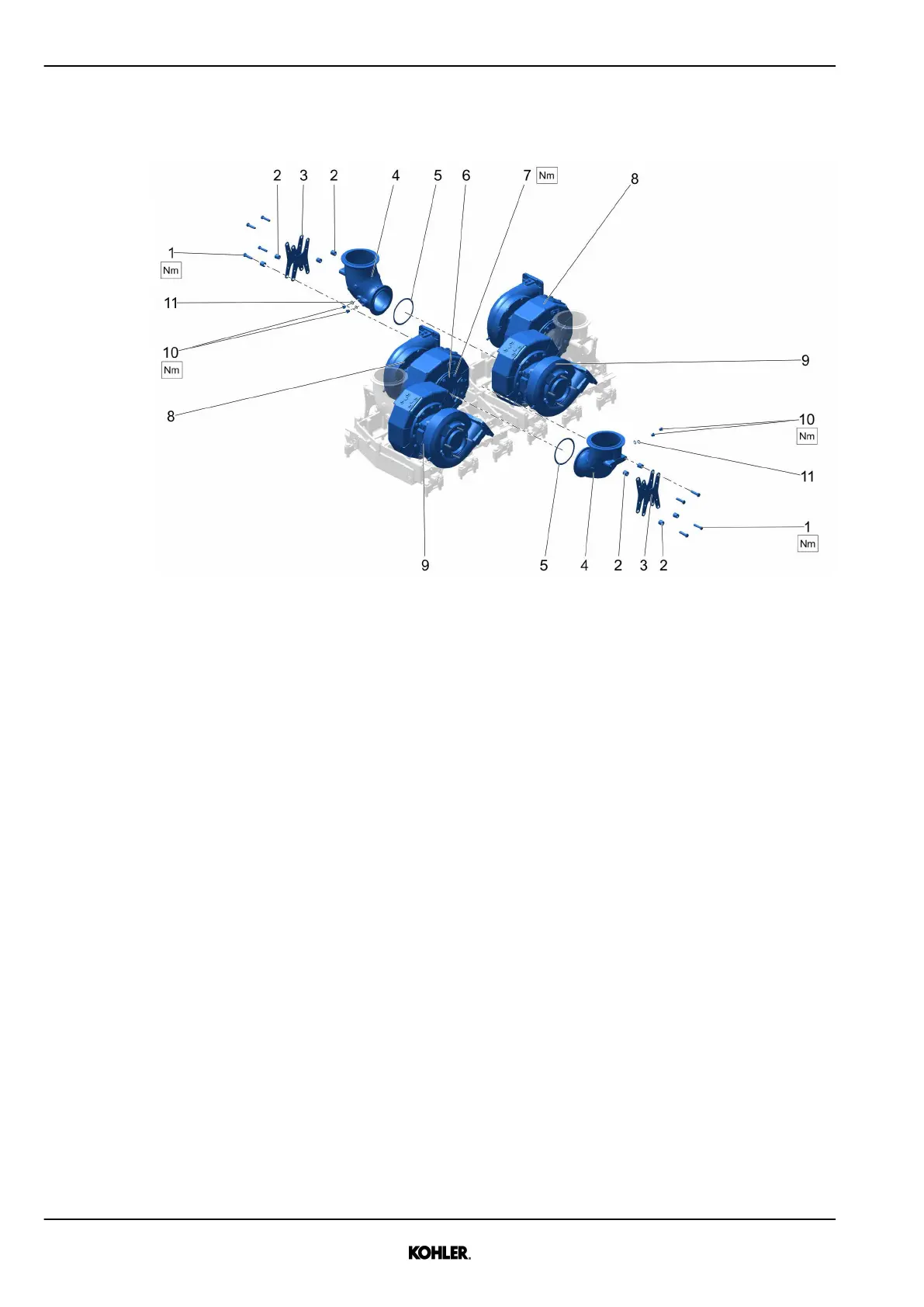

Fig. 183: Task overview
1 Screw (M12) 7 Nut (M10)
2 Distance sleeve 8 Turbocharger
3 Support 9 Turbocharger
4 Exhaust elbow 10 Screw plug
5 Seal 11 Washer
6 Clamp segment
Removal
u Remove screws 1 with distance sleeves 2.
u Remove supports 3.
u Remove nuts 7 with clamp segments 6.
u Remove exhaust elbow 4.
Installation
u Install screw plugs 10 with washers 11 into exhaust elbows 4.
u Tighten screw plugs 10 to torque.
u Position exhaust elbow 4 with seal 5 in turbocharger outlet.
u Position clamp segments 6 and hand tighten nuts 7.
u Position supports 3 with distance sleeves 2.
u Tighten nuts 7 to torque.
u Tighten screws 1 to torque.
162
© 2021 by Kohler Co. All rights reserved.
KD83V16 33525088901_2_1 EN_US
2021-07
