Service and Repair Manual Repair
Exhaust gas system
Overview

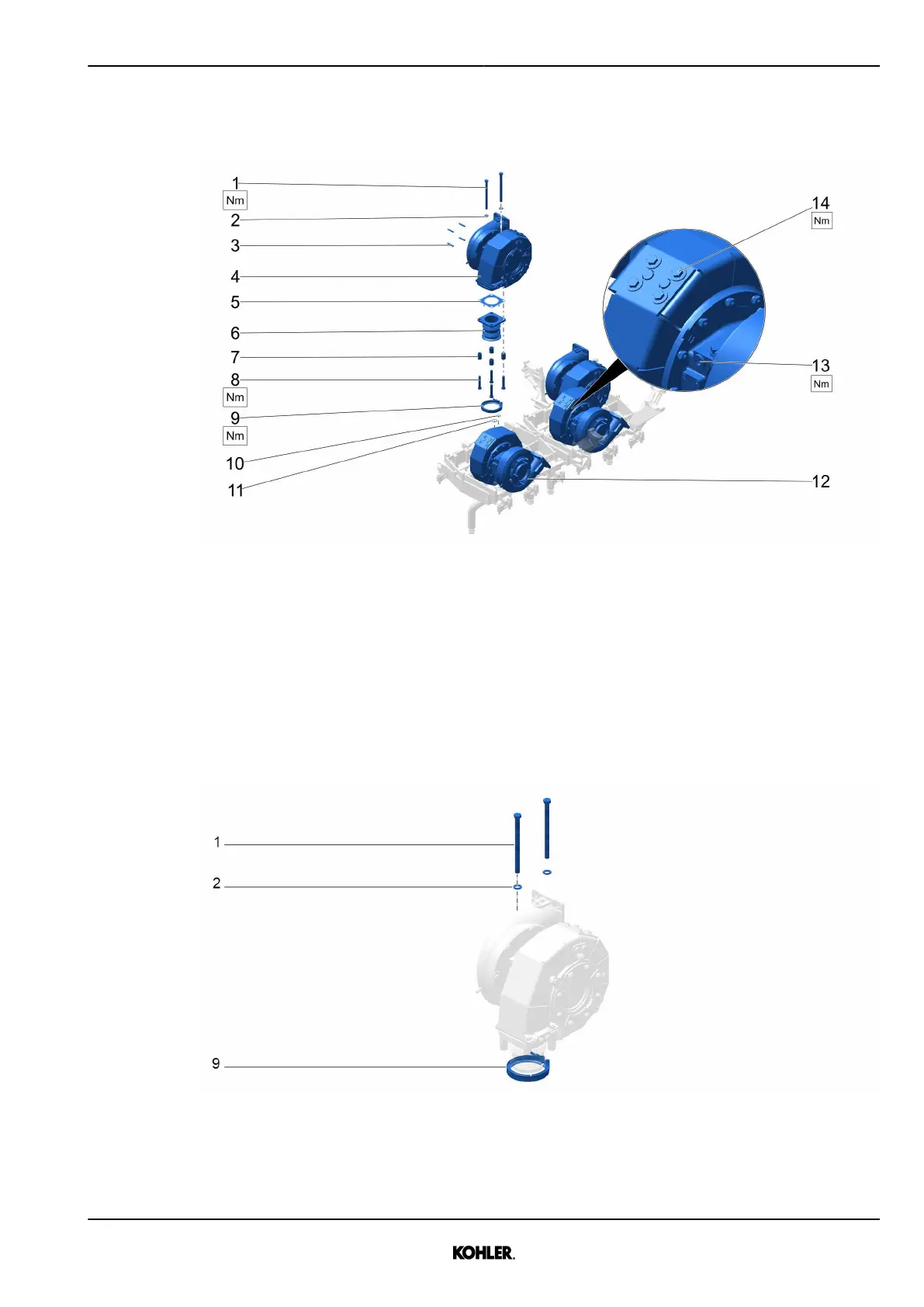

Fig. 192: Task overview
1 Screw (M16) 8 Screw (M16)
2 Washer 9 V-clamp
3 Stud 10 O-ring
4 Turbocharger 11 O-ring
5 Seal 12 Turbocharger
6 Compensator 13 Screw plug
7 Distance sleeve 14 Screw (M10)
Removal
Fig. 193: Removing turbocharger
u Remove screws 1 and washers 2.
u Open and loosen V-clamp 9.
KD83V16 33525088901_2_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
171
