Exhaust gas system
u Lift the turbocharger.
Information
During lifting, make sure the turbocharger does not tilt.
u Place the turbocharger on a workbench.
u Remove the straight air intake connection. (For more information see: 3.8.1 Admission pipes to
turbocharger removal and installation, page 159.)
u Remove the exhaust elbow. (For more information see: 3.8.2 Exhaust pipes to turbocharger
removal and installation, page 161.)
u Remove screws 8 and distance sleeves 7.
u Remove compensator 6 and seal 5.
u Repeat procedure for all turbochargers.
Installation

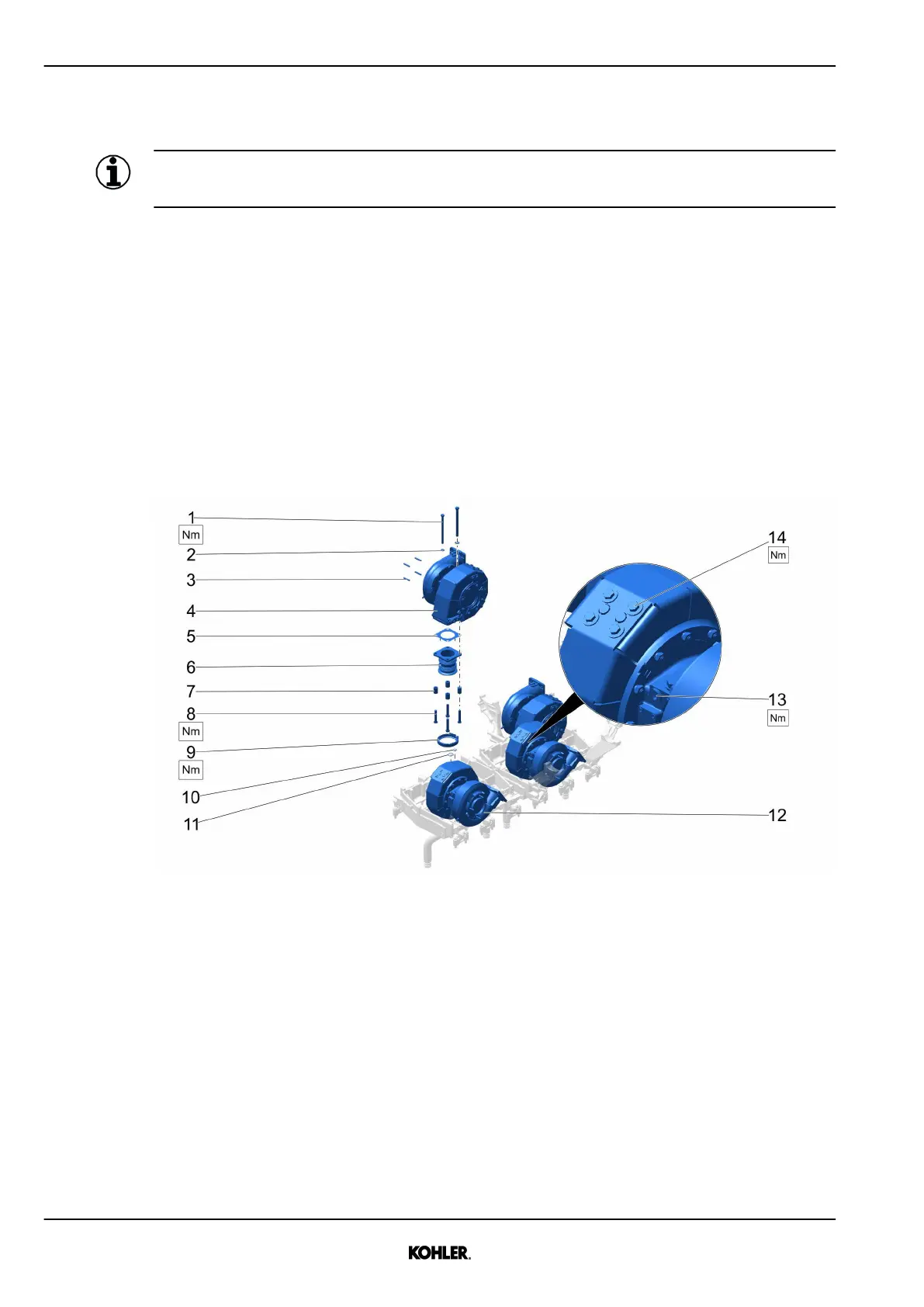

Fig. 194: Installing turbocharger
u Place the turbocharger on a workbench.
u Install the straight air intake connection. (For more information see: 3.8.1 Admission pipes to
turbocharger removal and installation, page 159.)
u Install the exhaust elbow. (For more information see: 3.8.2 Exhaust pipes to turbocharger
removal and installation, page 161.)
u Grease screws 1, 8 with Molykote HSC before installation.
u Install studs 3.
u Mount compensator 6 with seal 5 on turbocharger 4, 12.
u Tighten screws 8 with applied distance sleeves 7 to torque.
u Insert o-rings 10, 11 in turbocharger bracket.
