Kohler KD83V16 Service And Repair Manual

Repair Service and Repair Manual
Exhaust gas system
Tightening specifications

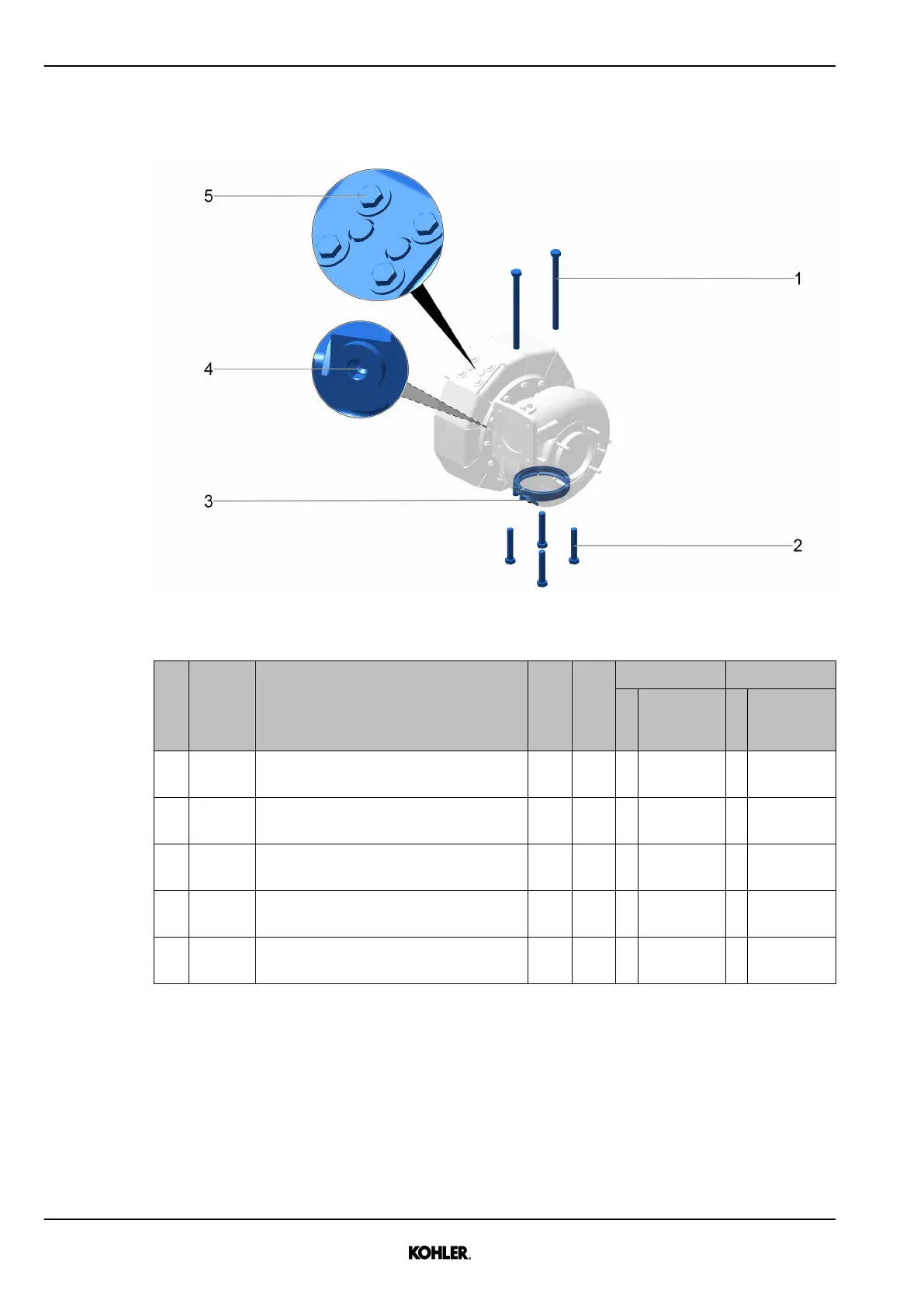

Fig. 196: Turbocharger screws
Reference
Key Screw specifications
Lubricant *
Reuse**
Torque Angle (°)
Step
± 5%
Step
± 5°
1 430AB ISO 4014 M16x2x220-10.9-FLZN MH Yes 1 230 Nm
170 ft-lb
- -
2 430AD M16x2x90-C3J MH No 1 120 Nm
89 ft-lb
- -
3 430AE M8x1.25 MH Yes 1 20 Nm
15 ft-lb
- -
4 430AF M22x1.5 O Yes 1 90 Nm
66 ft-lb
- -
4 430AG M10x1.5 - Yes 1 20 Nm
15 ft-lb
- -
Tab. 40: Tightening specifications table
*Lubricants:
MG = Molykote G-n-plus
MW = Castrol Optimol paste white T
MH = Molykote HSC
O = Engine oil
XX = Loctite 243
YY = Loctite 577
174
© 2021 by Kohler Co. All rights reserved.
KD83V16 33525088901_2_1 EN_US
2021-07
