**Refer to screws reuse rules. (For more information see: 5.3.2 Screws pre-tightening, reuse and
marking, page 274.)
3.8.4 Oil supply – turbocharger removal and installation
Previous tasks
Not applicable.
Specific safety instructions
Not applicable.
Special tools
Not applicable.
Consumables and equipment
– Rags
– Cleaner
Overview

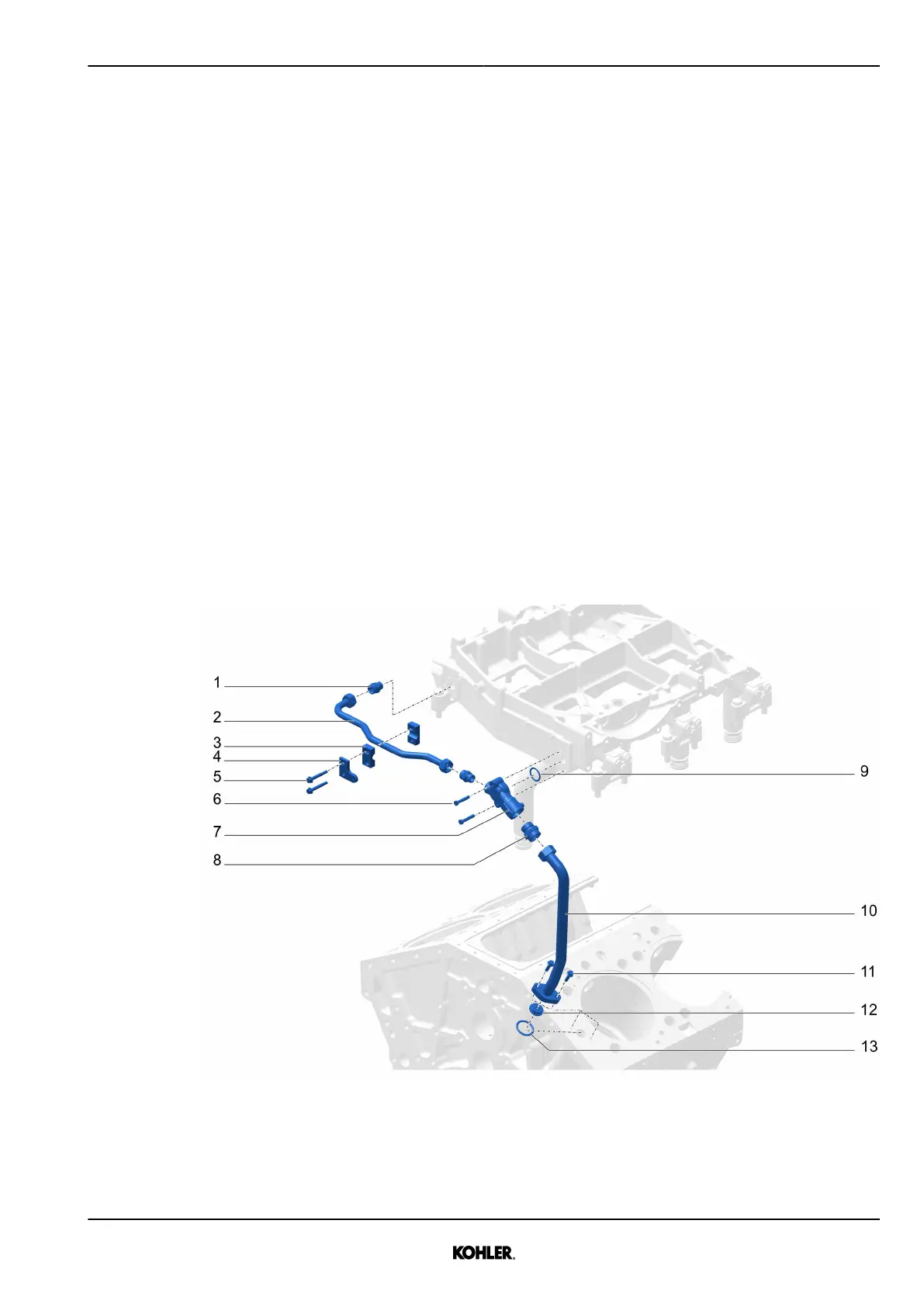

Fig. 197: Task overview
1 Flange joint 8 Flange joint
2 Pipe 9 O-ring
3 Clamp 10 Pipe
See next page for continuation of the image legend
KD83V16 33525088901_2_1 EN_US
2021-07
