Kohler KD83V16 Service And Repair Manual

Repair Service and Repair Manual
Exhaust gas system
4 Plate 11 Screw (M10)
5 Screw (M8) 12 Orifice
6 Screw (M8) 13 O-ring
7 Distribution block

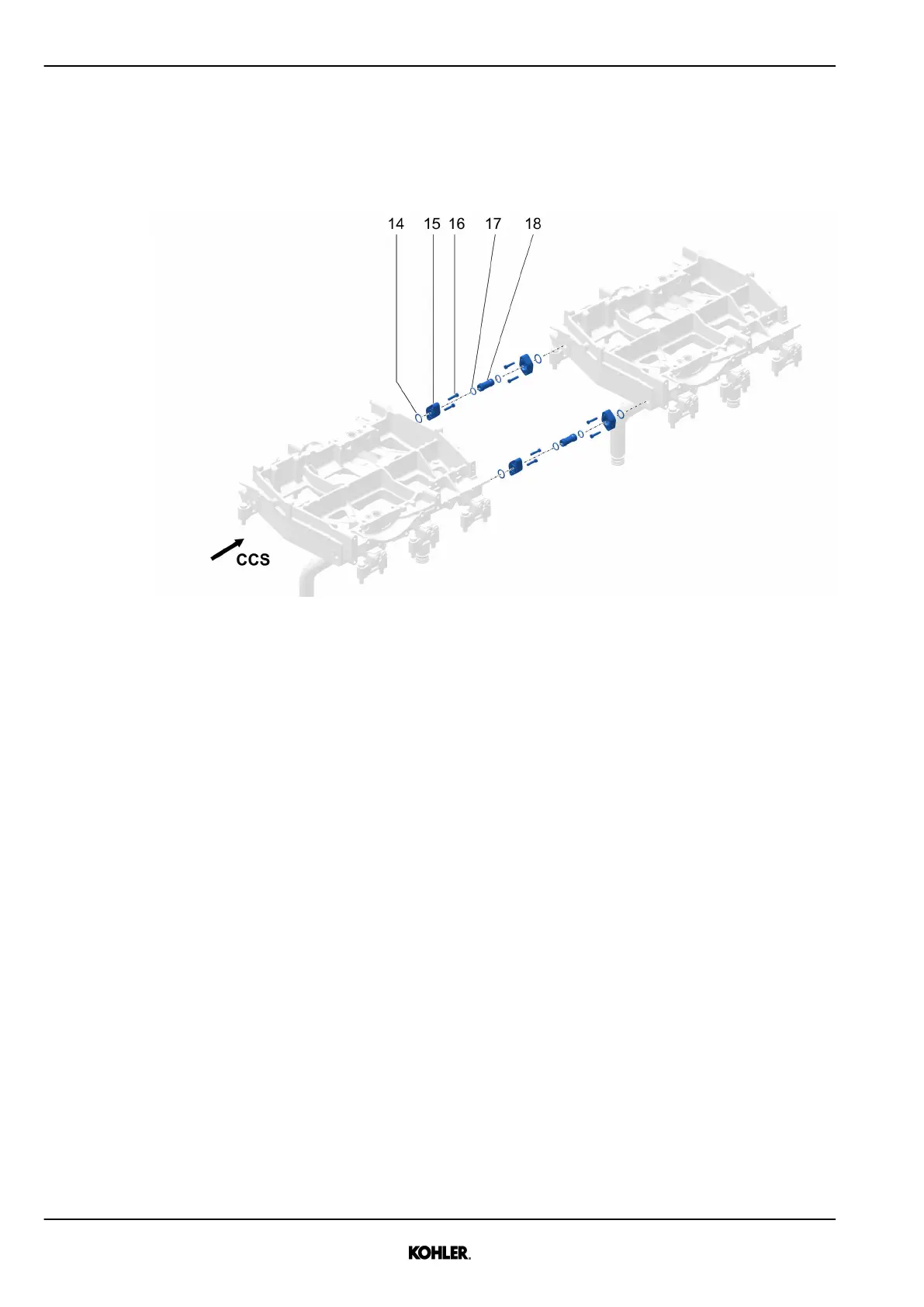

Fig. 198: Task overview
14 O-ring 17 O-ring
15 Flange 18 Pipe
16 Screw (M8)
176
© 2021 by Kohler Co. All rights reserved.
KD83V16 33525088901_2_1 EN_US
2021-07
