Service and Repair Manual Repair
Exhaust gas system
Removal

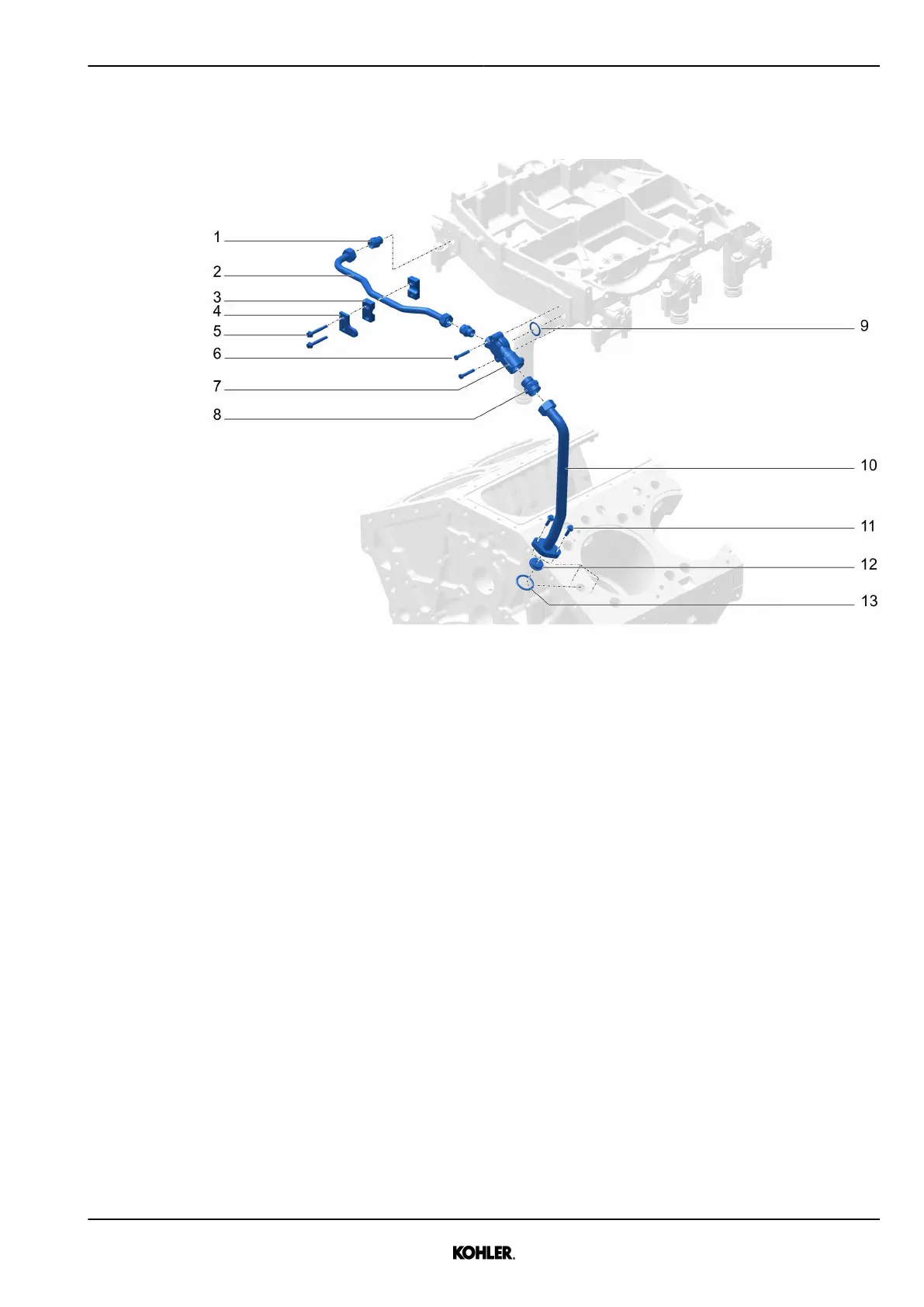

Fig. 199: Removing distribution block and pipes
u Remove screws 5 with plate 4 and clamps 3.
u Remove pipe 2.
u Remove screws 11.
u Remove pipe 10, orifice 12 and o-ring 13.
u Remove screws 6.
u Remove distribution block 7 and o-ring 9.
u Remove flange joints 1, 8.
KD83V16 33525088901_2_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
177
