Repair Service and Repair Manual
Exhaust gas system

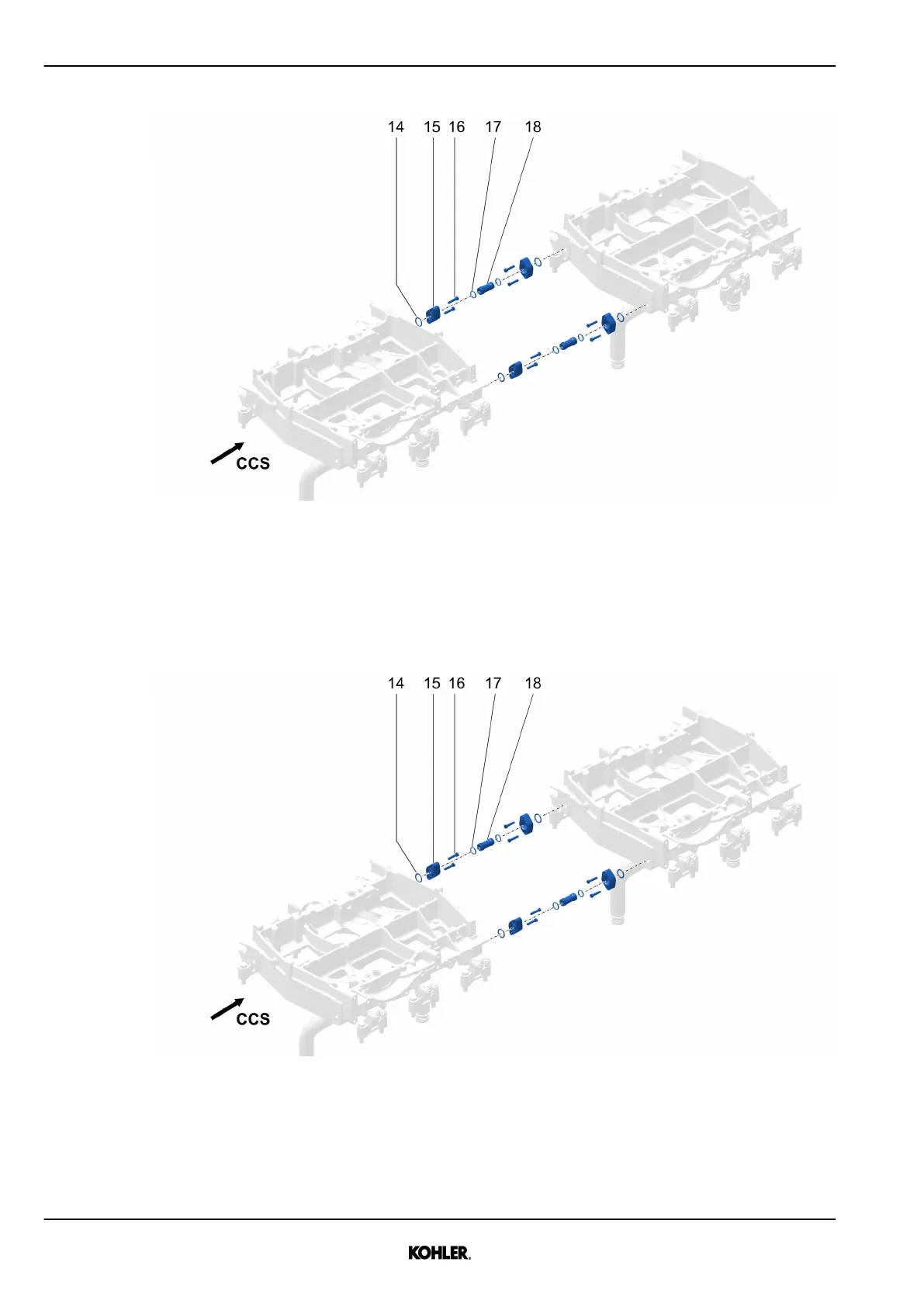

Fig. 200: Removing flanges and pipes
u Remove screws 16.
u Remove flanges 15 with o-rings 14 and pipe 18.
Installation
Fig. 201: Installing flanges and pipes
u Assemble o-rings 17 on pipe 18 and place both flanges 15.
u Insert o-rings 14 in bothflanges 15.
u Position assembly with screws 16 between both turbocharger brackets on oil supply connection.
178
© 2021 by Kohler Co. All rights reserved.
KD83V16 33525088901_2_1 EN_US
2021-07
