Kohler KD83V16 Service And Repair Manual

Service and Repair Manual Repair
Exhaust gas system
u Tighten screws 16 to torque.

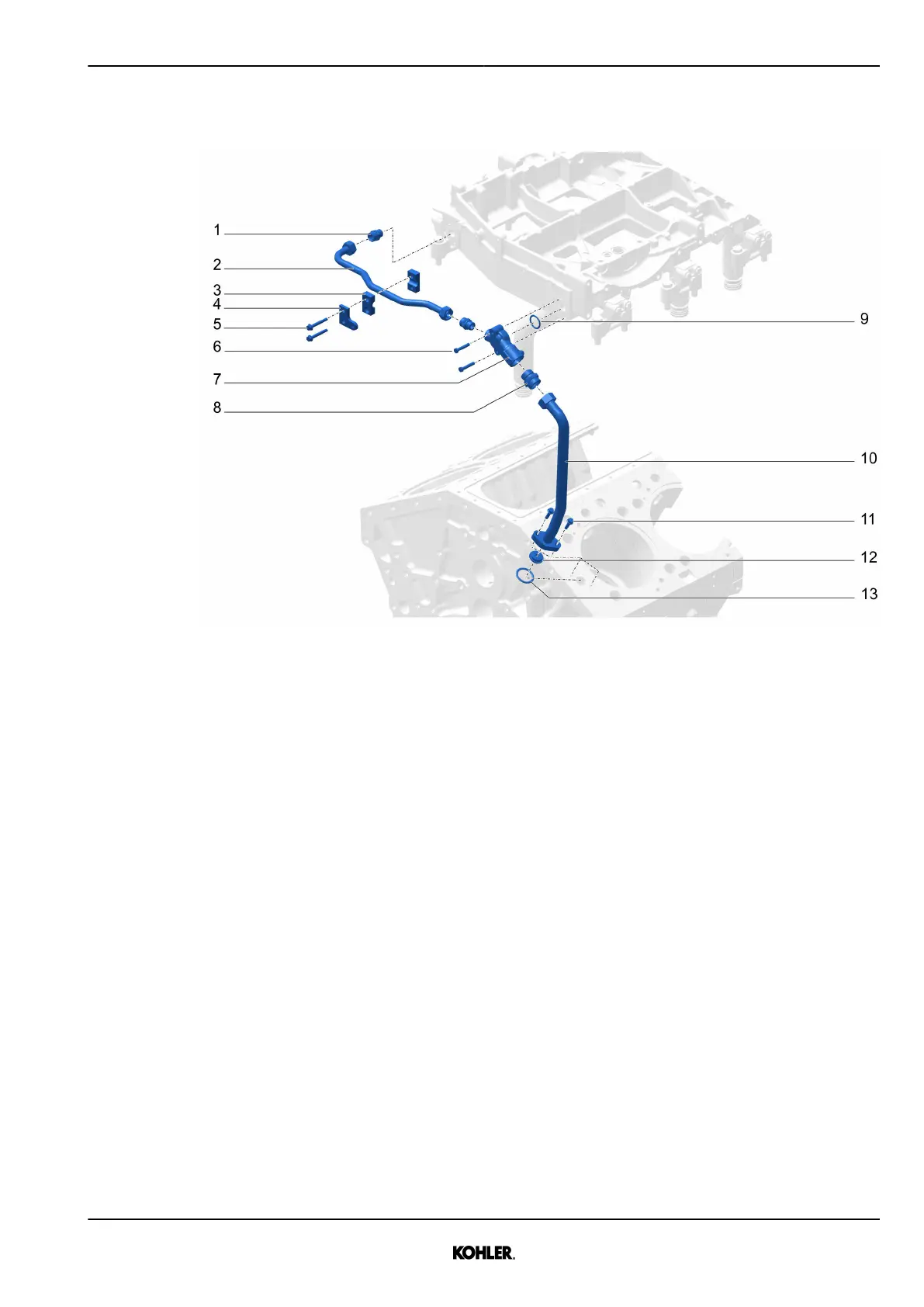

Fig. 202: Installing distribution block and pipes
u Insert o-ring 9 in distribution block 7.
u Position distribution block 7 with screws 6 on oil entry of turbocharger bracket.
u Tighten screws 6 to torque.
u Install and tighten flange joints 1, 8 to torque.
u Grease orifice 12.
u Install pipe 10 with orifice 12, screws 11 and seal 13 between flange joint 8 and crankcase.
u Install pipe 2 with flange joints 1 on oil entry of turbocharger bracket.
u Tighten screws 11 to torque.
u Install plate 4 and clamps 3 with screws 5.
u Tighten screws 5 to torque.
Specific values
Not applicable.
Tightening specifications
Refer to standard tightening torques. (For more information see: 5.3 Standard tightening torques,
page 274.)
KD83V16 33525088901_2_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
179
