Service and Repair Manual Repair
Exhaust gas system

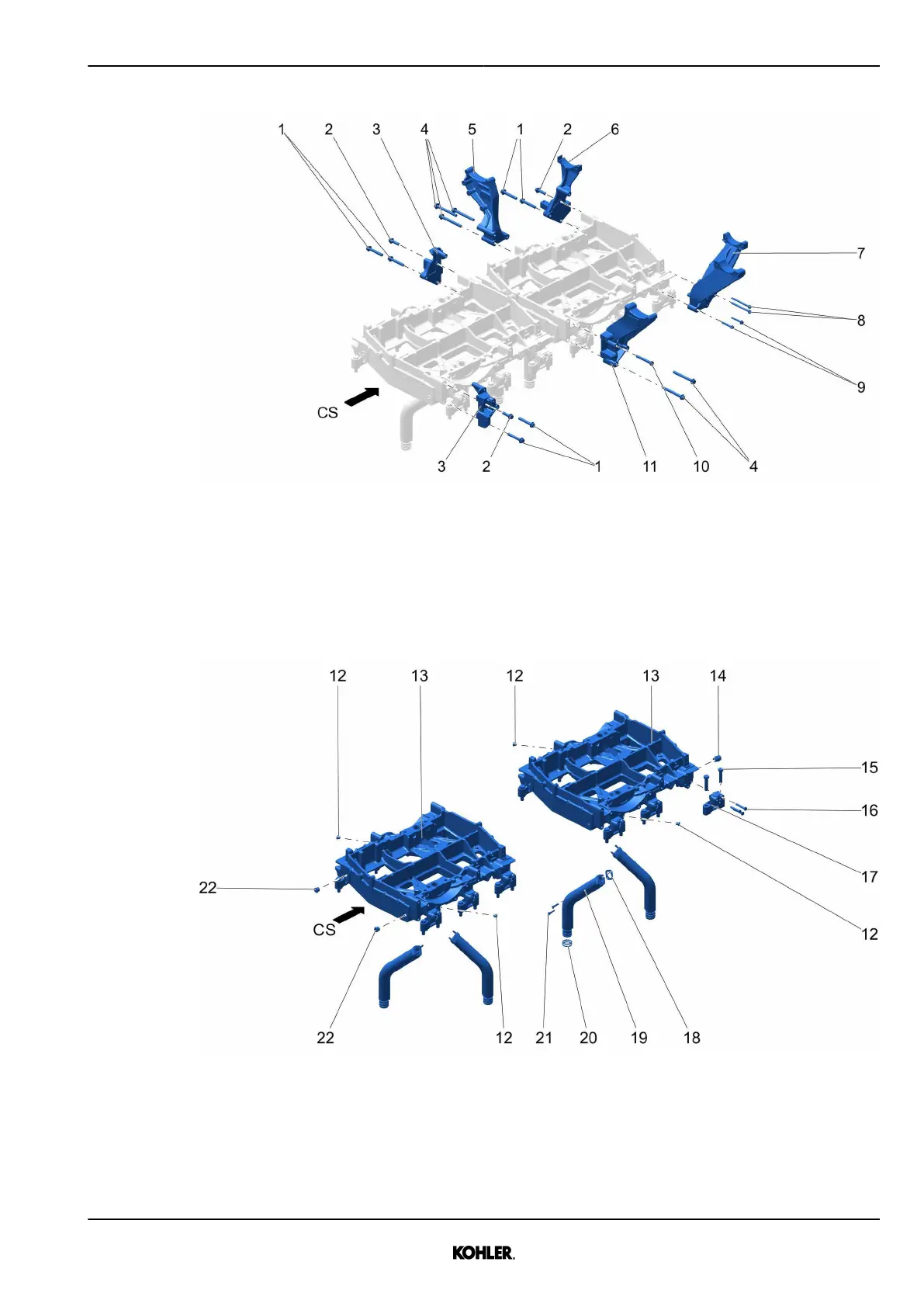

Fig. 204: Task overview - 60 Hz engine with EATS and 50 Hz engine
1 Screw (M12) 7 Holder
2 Screw (M12) 8 Screw (M8)
3 Holder 9 Screw (M8)
4 Screw (M12) 10 Screw (M12)
5 Holder 11 Holder
6 Holder
Fig. 205: Task overview
12 Screw plug 18 Seal
13 Turbocharger bracket 19 Oil return pipe
14 Fitting 20 O-ring
15 Screw (M16) 21 Screw (M8)
See next page for continuation of the image legend
KD83V16 33525088901_2_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
181
