Exhaust gas system
16 Screw (M10) 22 Screw plug
17 Holder
Removal

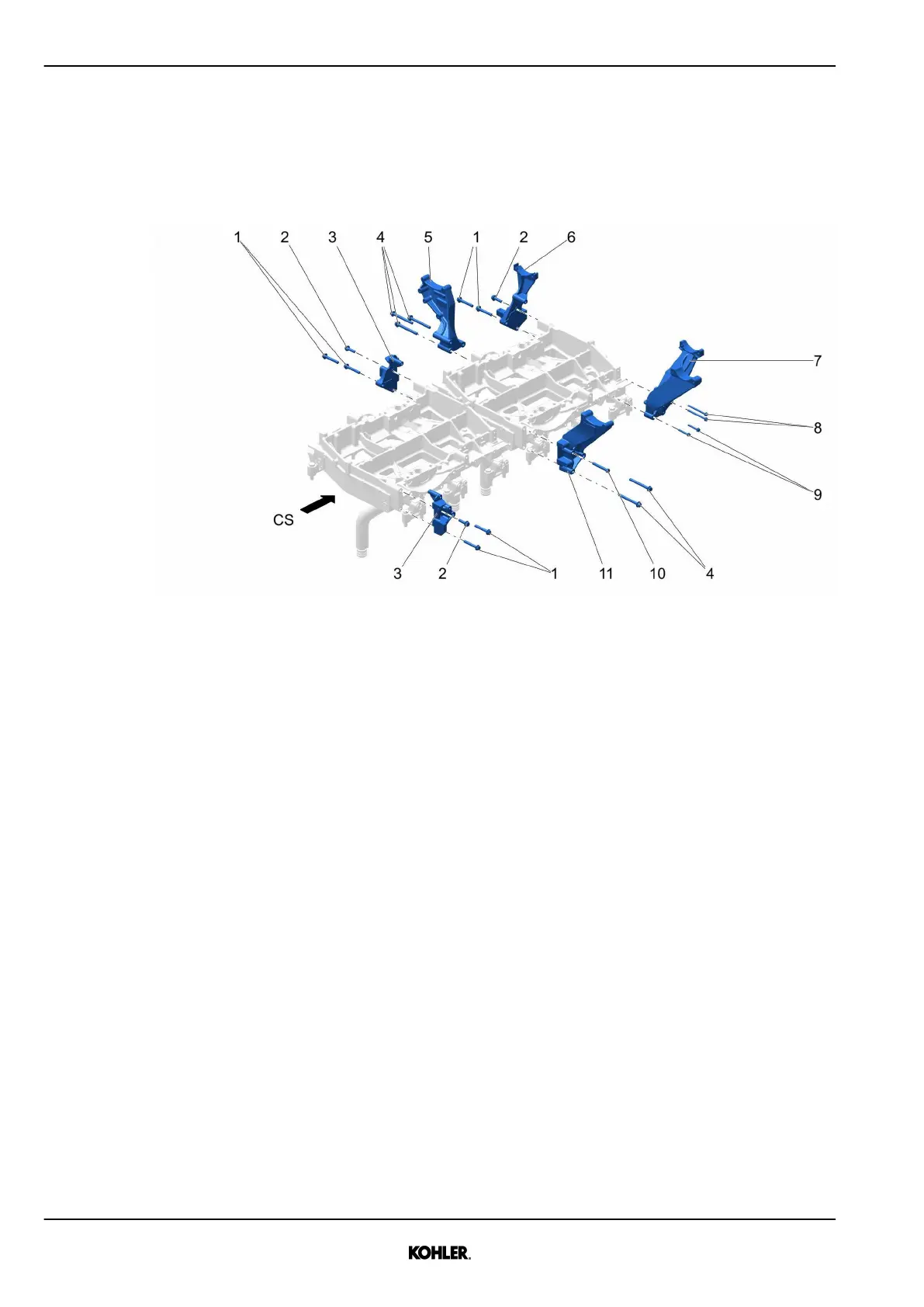

Fig. 206: Removing holders
u Remove screws 1, 2.
u Remove holders 3, 6.
u Remove screws 4.
u Remove holder 5.
u Remove screws 8, 9.
u Remove holder 7.
u Remove screws 4, 10.
u Remove holder 11.
