Exhaust gas system

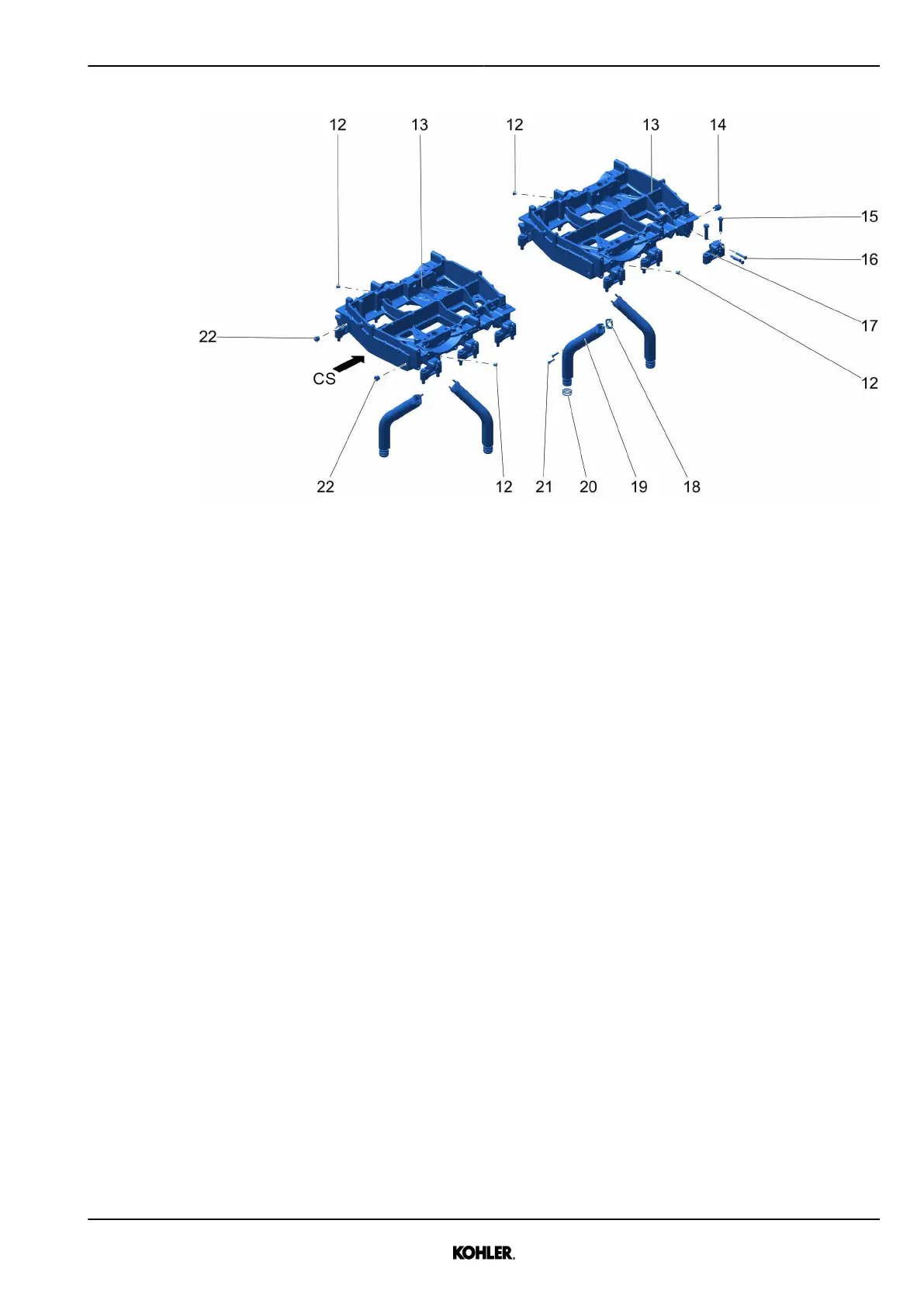

Fig. 207: Removing turbocharger brackets and oil return pipes
u Remove screws 15.
u Lift off turbocharger brackets 13.
u Remove screws 21.
u Remove oil return pipe 19 with seal 18 and o-ring 20.
u Repeat procedure for all oil return pipes 19.
u Remove screws 16.
u Remove bracket 17.
u Repeat procedure for all brackets 17.
KD83V16 33525088901_2_1 EN_US
2021-07
