Repair Service and Repair Manual
Exhaust gas system
Installation

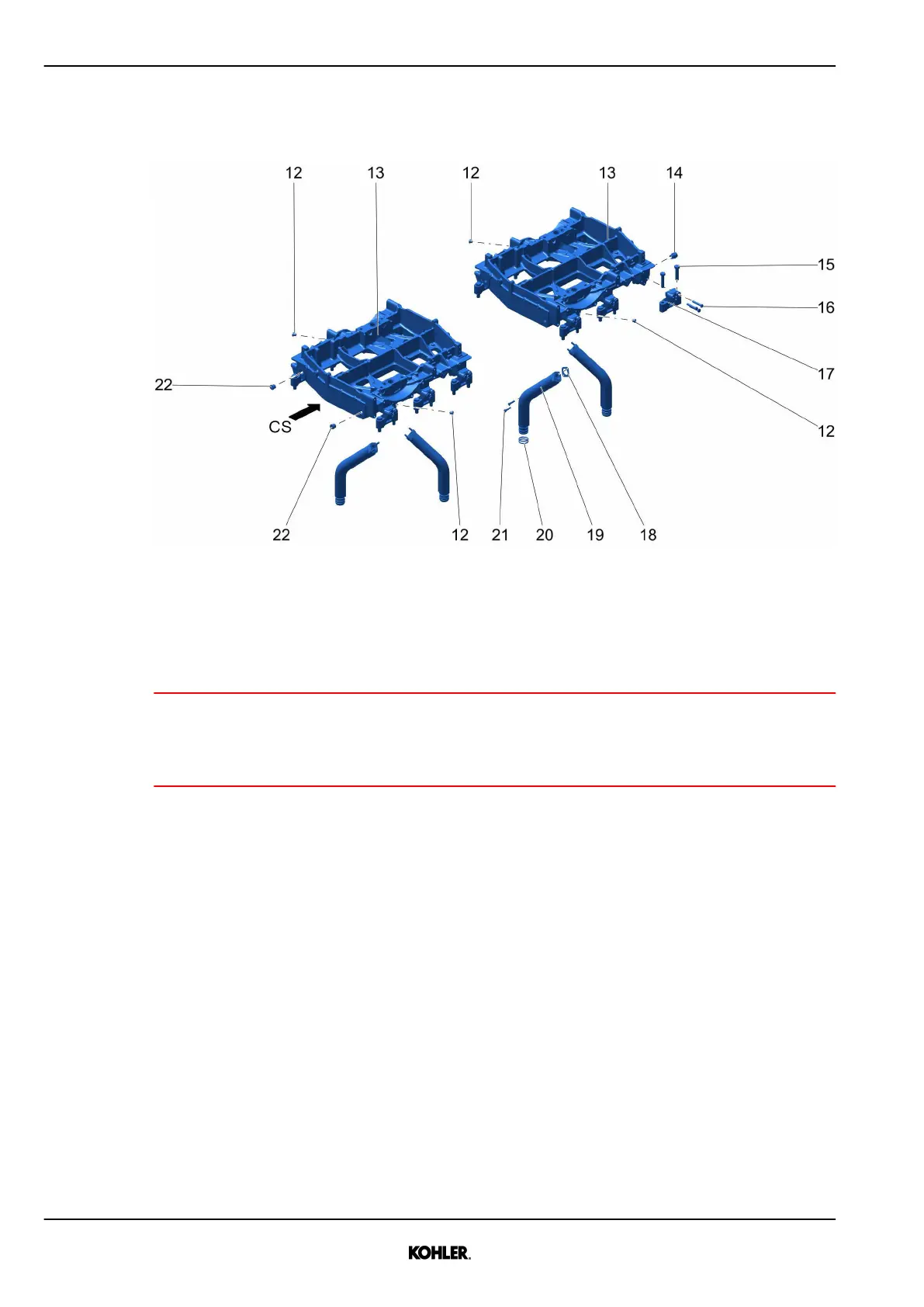

Fig. 208: Installing turbocharger brackets and oil return pipes
u Position brackets 17 on turbocharger brackets 13.
u Tighten screws 16 to torque.
u Position oil return pipes 19 with seals 18 and screws 21.
NOTICE
Misalignment.
Parts damage.
u Pay attention to align oil return pipes in camshaft cover plate properly.
u Tighten screws 21 to torque.
u Insert o-rings 20 on the oil return pipes 19.
u Position turbocharger brackets 13 on the rocker arm housings with screws 15.
u Tighten screws 15 to torque.
u Install screw plugs 12, 22.
