Service and Repair Manual Repair
Exhaust gas system

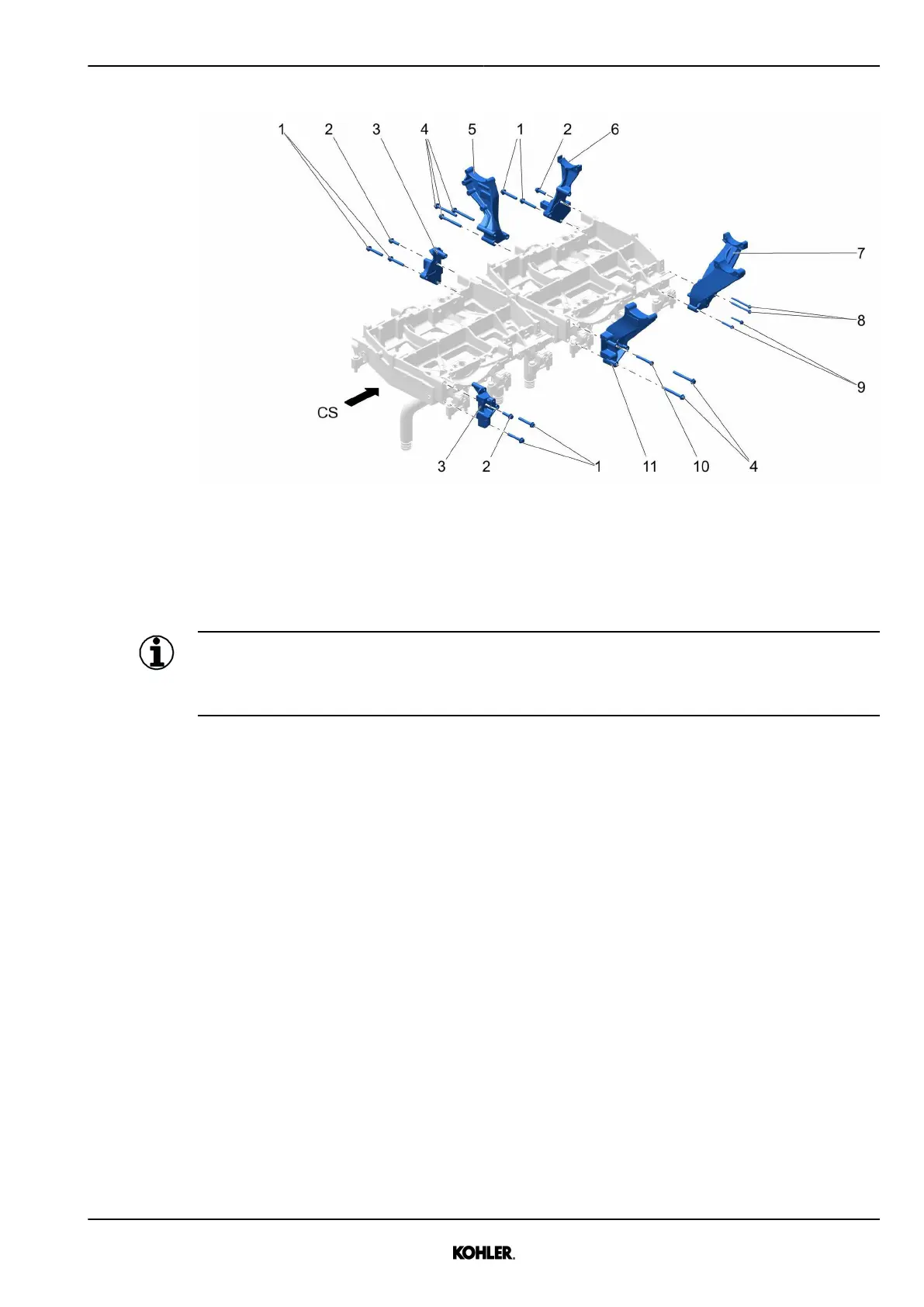

Fig. 209: Installing holders - 50Hz engine
u Install holders 3, 6 with screws 1, 2.
u Install holder 5 with screws 4.
u Install holder 7 with screws 8, 9.
Information
At this stage, screw screws 1, 2, 8, 9 on charge air cooler side without tightening.
Tighten screws 1, 2, 8, 9 to standard torque when charge air cooler is correctly positioned.
u Install holder 11 with screws 4, 10.
Specific values
Not applicable.
Tightening specifications
Refer to standard tightening torques. (For more information see: 5.3.2 Screws pre-tightening, reuse
and marking, page 274.)
3.8.6
Exhaust pipes and compensators (SL 214)
Previous tasks
q Remove turbocharger. (For more information see: 3.8.3 Exhaust gas turbocharger removal and
installation (SL 213), page 170.)
q Remove turbocharger bracket. (For more information see: 3.8.5 Turbocharger brackets removal
and installation, page 180.)
