Repair Service and Repair Manual
Lubricating system
Removal

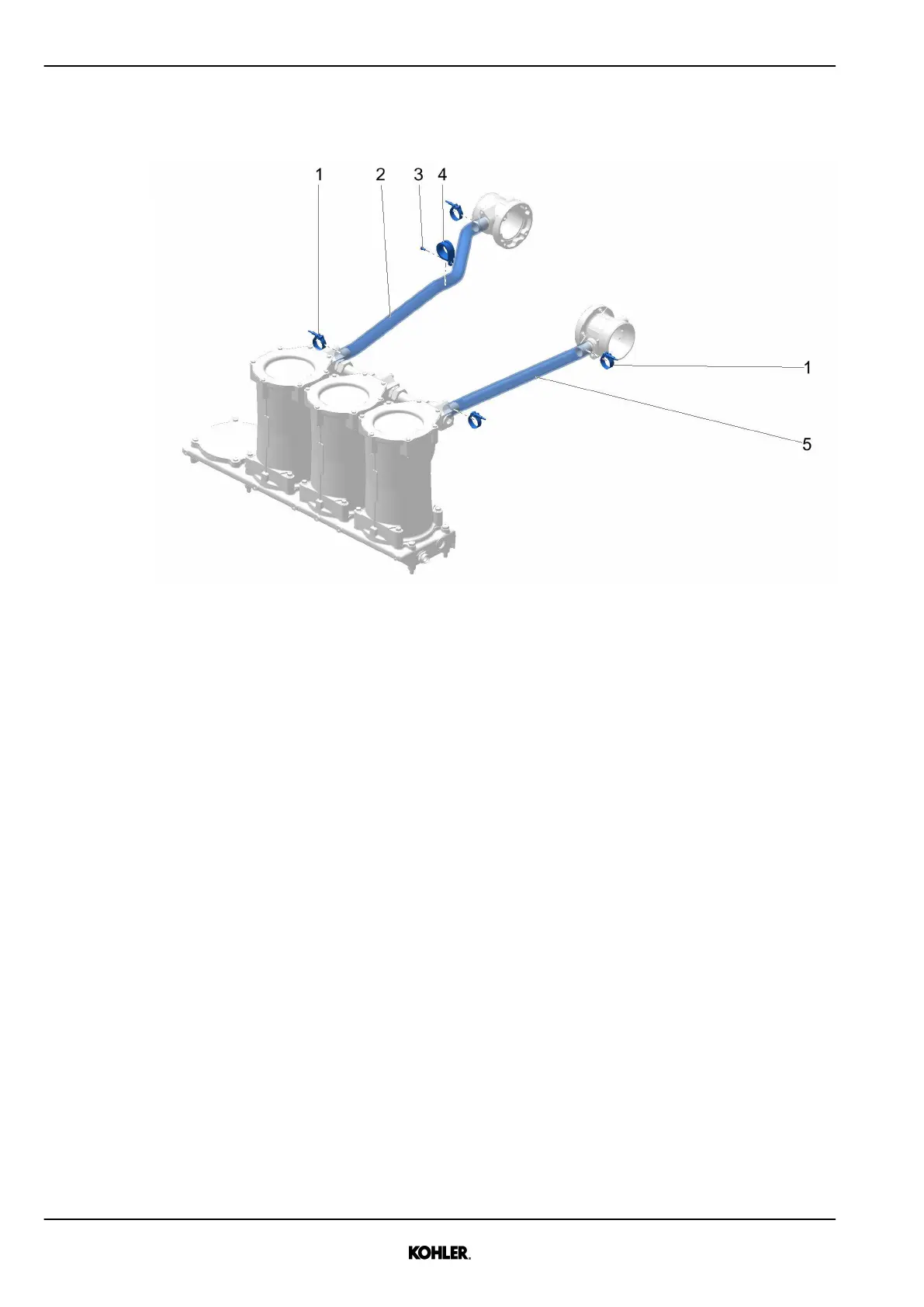

Fig. 216: Removing hoses
u Remove screw 3.
u Remove clamp 4.
u Loosen clamps 1.
u Remove hoses 2, 5.
192
© 2021 by Kohler Co. All rights reserved.
KD83V16 33525088901_2_1 EN_US
2021-07
