Lubricating system
Installation

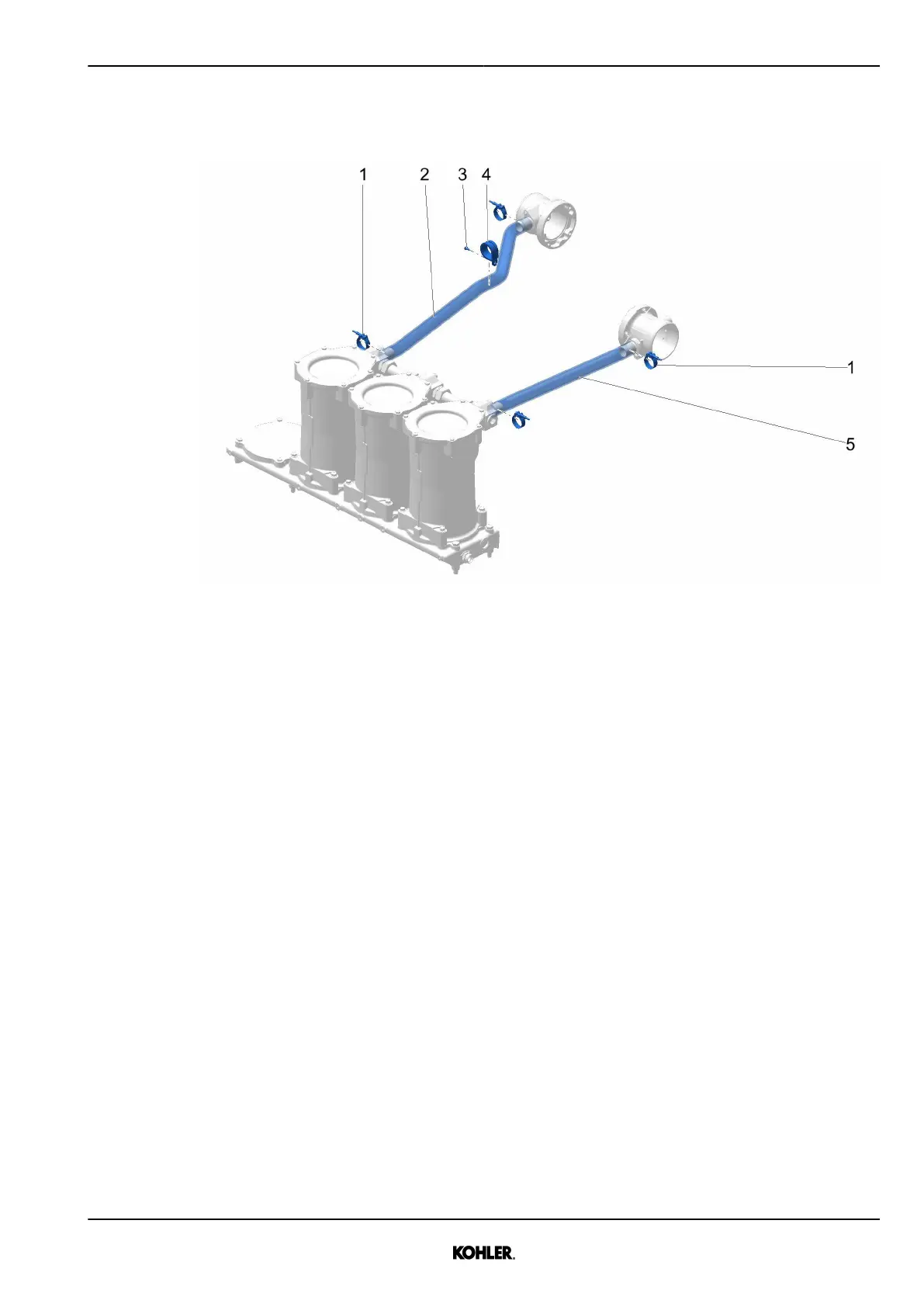

Fig. 217: Installing hoses
u Install hoses 2, 5 with clamps 1.
u Install clamp 4 with screw 3 on hose 2.
u Tighten clamps 1.
Specific values
Not applicable.
Tightening specifications
**Refer to screws reuse rules. (For more information see: 5.3.2 Screws pre-tightening, reuse and
marking, page 274.)
3.9.2 Oil centrifuge removal and installation (depending on application)
Previous tasks
q Drain engine oil.
Specific safety instructions
Not applicable.
Special tools
Not applicable.
