Lubricating system
Consumables and equipment
– Rags
– Cleaner
Overview

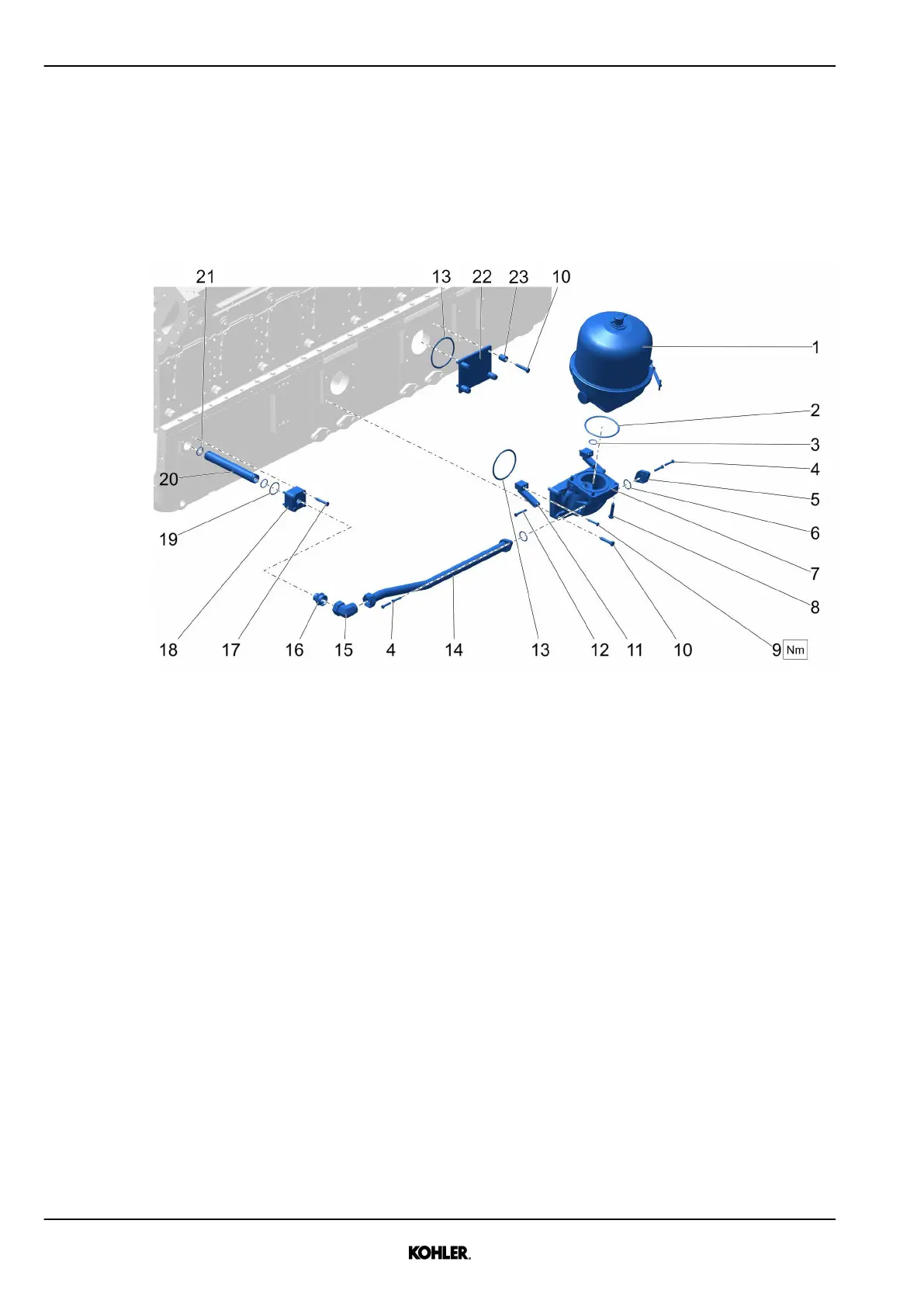

Fig. 218: Task overview
1 Oil centrifuge 13 O-ring
2 O-ring 14 Pipe
3 O-ring 15 Flange joint
4 Screw (M8) 16 Flange joint
5 Cover plate 17 Screw (M10)
6 O-ring 18 Flange
7 Oil centrifuge base 19 O-ring
8 Screw (M12) 20 Pipe
9 Screw (M8) 21 O-ring
10 Screw (M12) 22 Flange
11 Holder 23 Distance sleeve
12 Screw (M8)
Removal
u Remove screws 10 with distance sleeves 23.
u Remove flange 22.
u Remove screws 4 from pipe 14.
u Disconnect pipe 14 with flange joints 15, 16.
u Remove screws 9, 10.
u Remove screws 12.
u Remove holders 11.
