Service and Repair Manual Repair
Lubricating system
u Remove screws 8.
u Remove oil centrifuge base 7 from oil centrifuge 1.
u Remove screws 17.
u Remove flange 18 with pipe 20.
Installation
u Install o-rings 21 on pipe 20.
u Install o-rings 19 on flange 18.
u Assemble pipe 20 with flange 18.
u Install flange 22 with o-ring 13, screws 10 and distance sleeves 23
u Assemble oil centrifuge base 7 and oil centrifuge 1 with screws 8 and o-rings 2, 3.
u Install holders 11 with screws 12.
u Install oil centrifuge assembly to oil pan with o-ring 13 and screws 9, 10.
u Install pipe 14 to oil centrifuge base 7 with o-ring 6 and screws 4.
u Connect flange joints 15, 16 to pipe 14.
u Install cover plate 5 with o-ring 6 and screws 4.
Specific values
Not applicable.
Tightening specifications

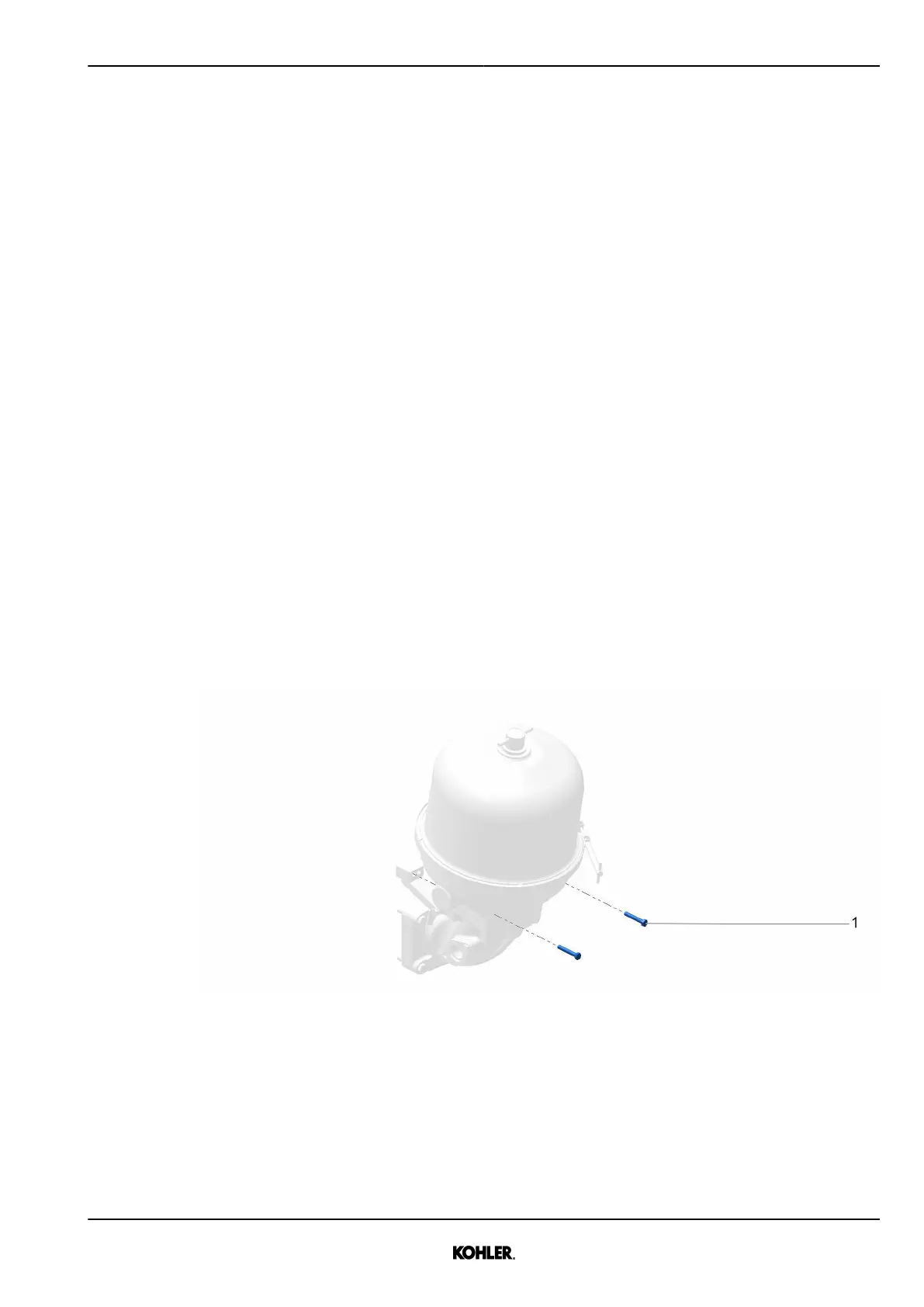

Fig. 219: Oil centrifuge screws
