Service and Repair Manual Repair
Lubricating system
Overview

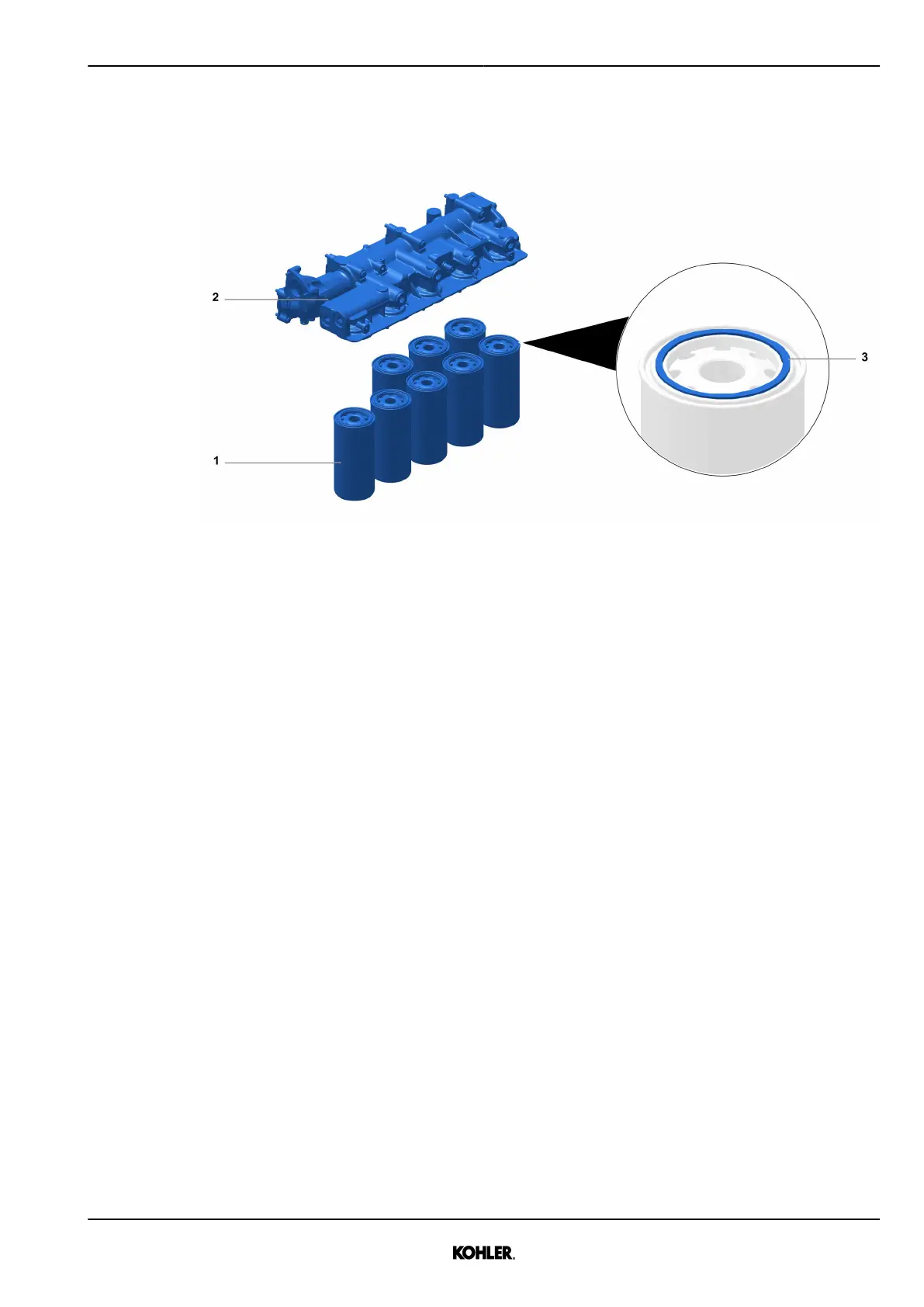

Fig. 220: Task overview
1 Spin-on oil filter 3 Seal
2 Filter head
Removal
u Clean sealing area.
u Open spin-on oil filter 1 with filter wrench.
u Remove filter.
u Repeat procedure for all filters.
Installation
u Clean sealing area.
u Lubricate filter seal 3 with engine oil.
u Screw spin-on oil filter 1 in filter head 2 until it contacts base.
u Tighten filter by hand by 1/2 turn.
Specific values
Not applicable.
Tightening specifications
Refer to standard tightening torques. (For more information see: 5.3 Standard tightening torques,
page 274.)
KD83V16 33525088901_2_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
197
