Repair Service and Repair Manual
Cooling system
Overview

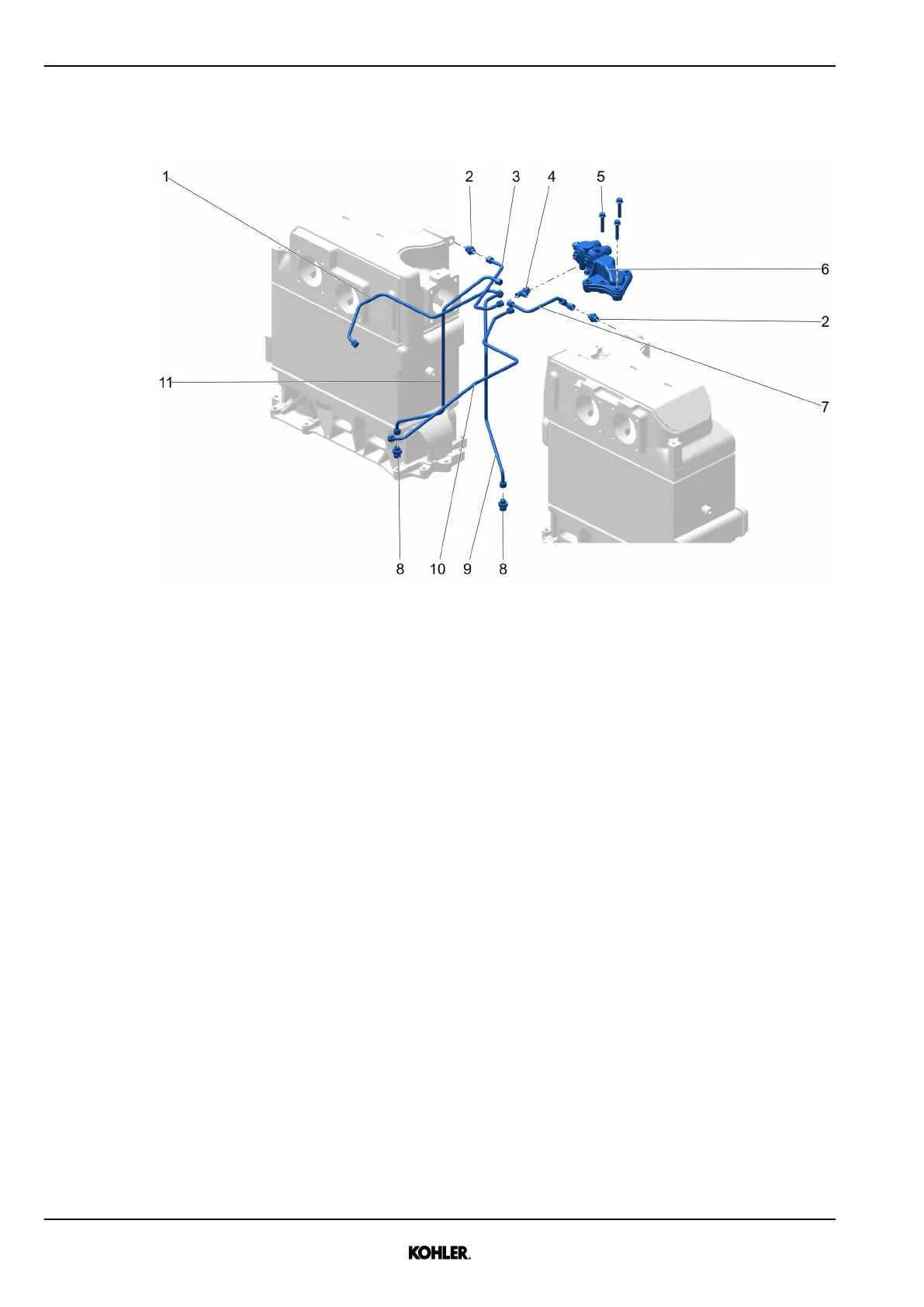

Fig. 232: Task overview
1 Venting LT turbocharger 7 Venting LT charge air cooler
2 Flange joint 8 Flange joint
3 Venting LT charge air cooler 9 Venting HT thermostat
4 T connector 10 Venting LT turbocharger
5 Screw (M10) 11 Venting HT collecting pipe
6 Distribution block
206
© 2021 by Kohler Co. All rights reserved.
KD83V16 33525088901_2_1 EN_US
2021-07
