Kohler KD83V16

Repair Service and Repair Manual
Cooling system
Consumables and equipment
– Vaseline
– Rags
– Cleaner
Overview

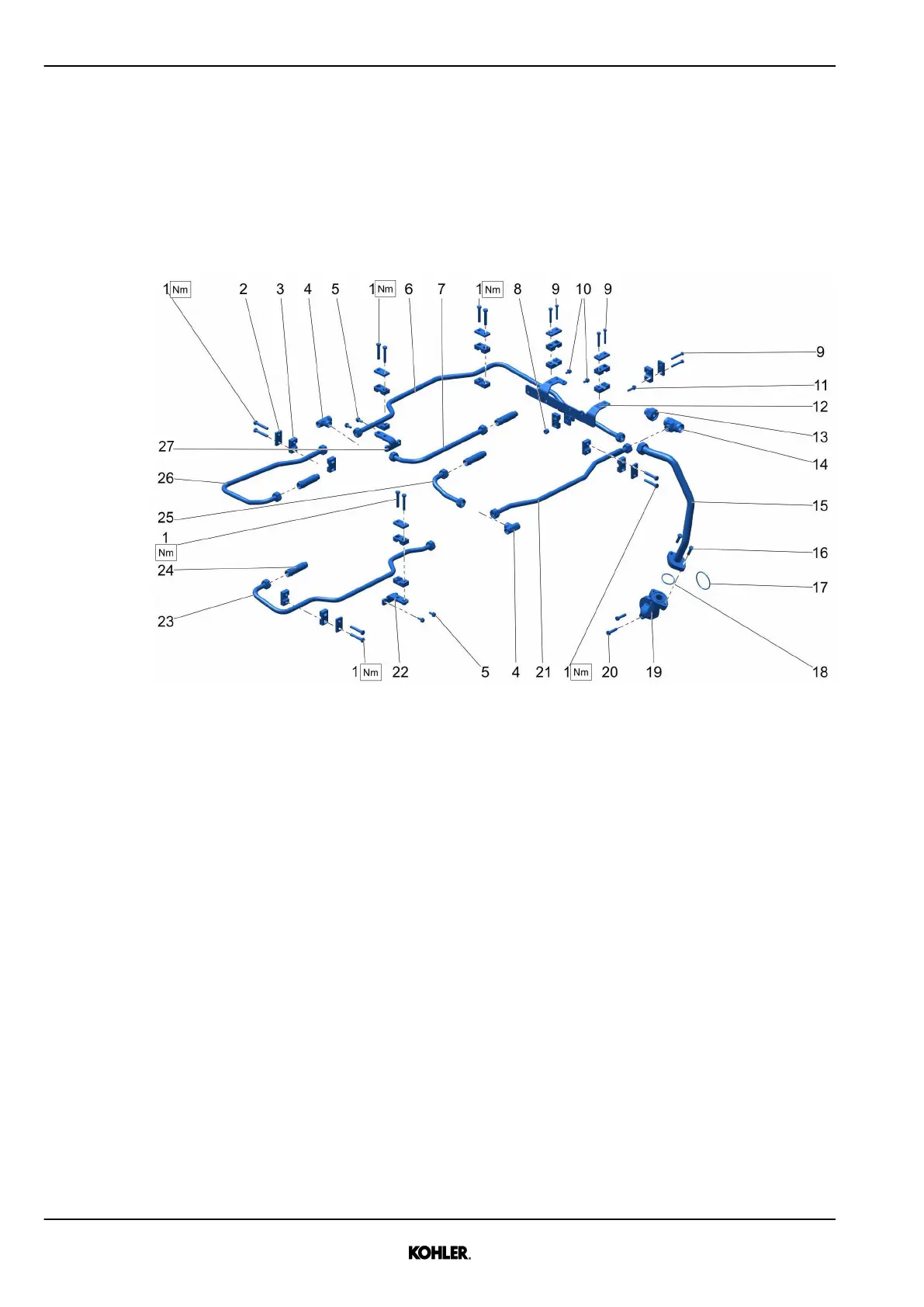

Fig. 241: Task overview
1 Screw (M10) 15 Pipe
2 Plate 16 Screw (M10)
3 Clamp 17 O-ring
4 T connector 18 O-ring
5 Screw (M8) 19 Aggregate support connector
6 Pipe 20 Screw (M10)
7 Pipe 21 Pipe
8 Distance sleeve 22 Retaining plate
9 Screw (M8) 23 Pipe
10 Screw (M8) 24 Fitting
11 Screw (M8) 25 Pipe
12 Retaining plate 26 Pipe
13 Flange joint 27 Retaining plate
14 T connector
