Service and Repair Manual Repair
Cooling system

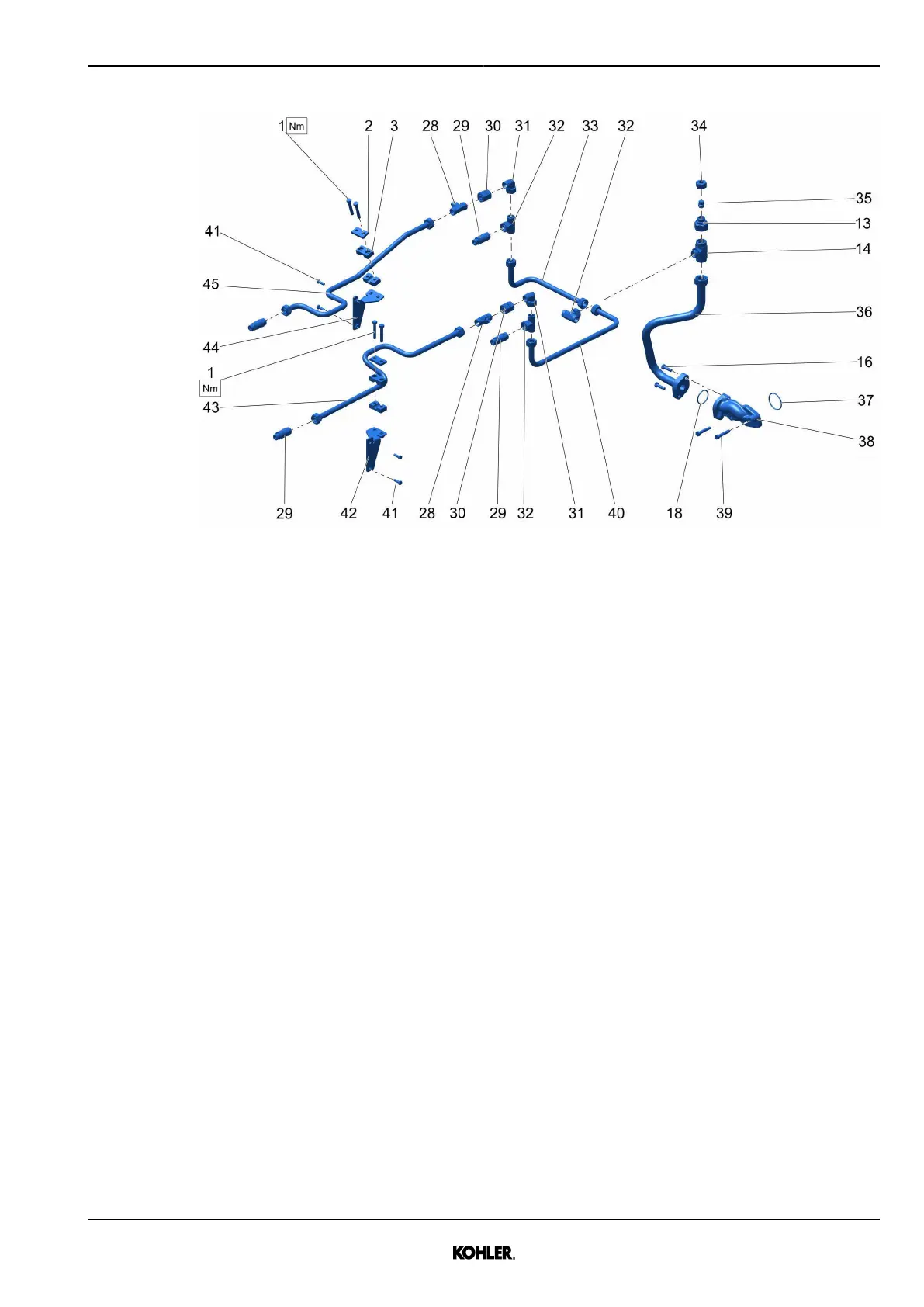

Fig. 242: Task overview
28 T connector 37 O-ring
29 Fitting 38 Aggregate support connector
30 Fitting 39 Screw (M10)
31 90° connector 40 Pipe
32 T connector 41 Screw (M8)
33 Pipe 42 Retaining plate
34 Flange joint 43 Pipe
35 Adaptor 44 Retaining plate
36 Pipe 45 Pipe
KD83V16 33525088901_2_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
213
