Repair Service and Repair Manual
Cooling system
Removal

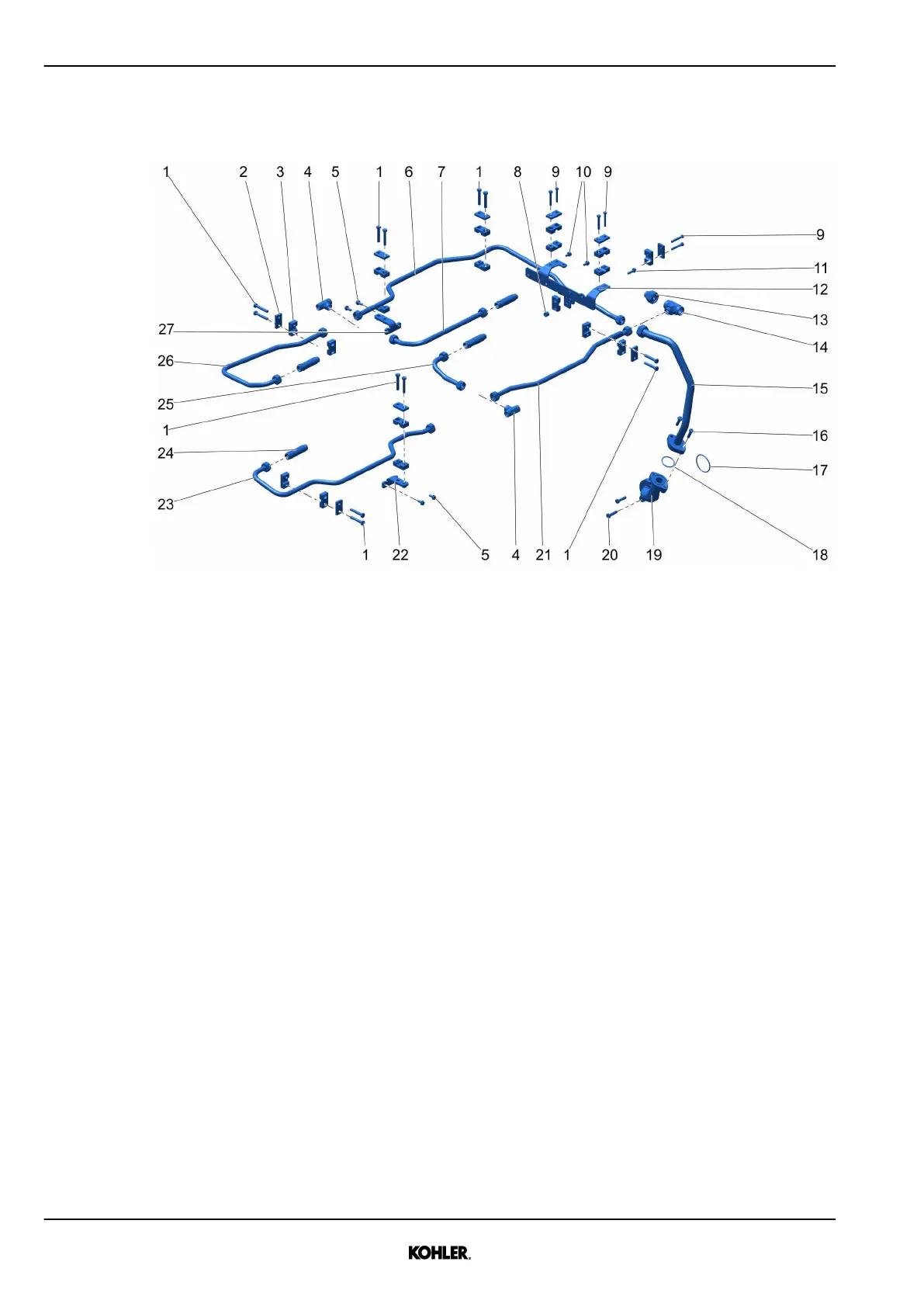

Fig. 243: Removing pipes
u Remove screws 1, 9.
u Remove plates 2 and clamps 3.
u Remove screws 9, 11 and distance sleeve 8.
u Remove screws 16, 20.
u Remove aggregate support connector 19.
u Unscrew connection nuts of pipes 6, 7, 15, 21, 23, 25, 26.
u Remove fittings 24.
u Remove screws 10, 11 and distance sleeve 8.
u Remove retaining plate 12.
214
© 2021 by Kohler Co. All rights reserved.
KD83V16 33525088901_2_1 EN_US
2021-07
