Cooling system

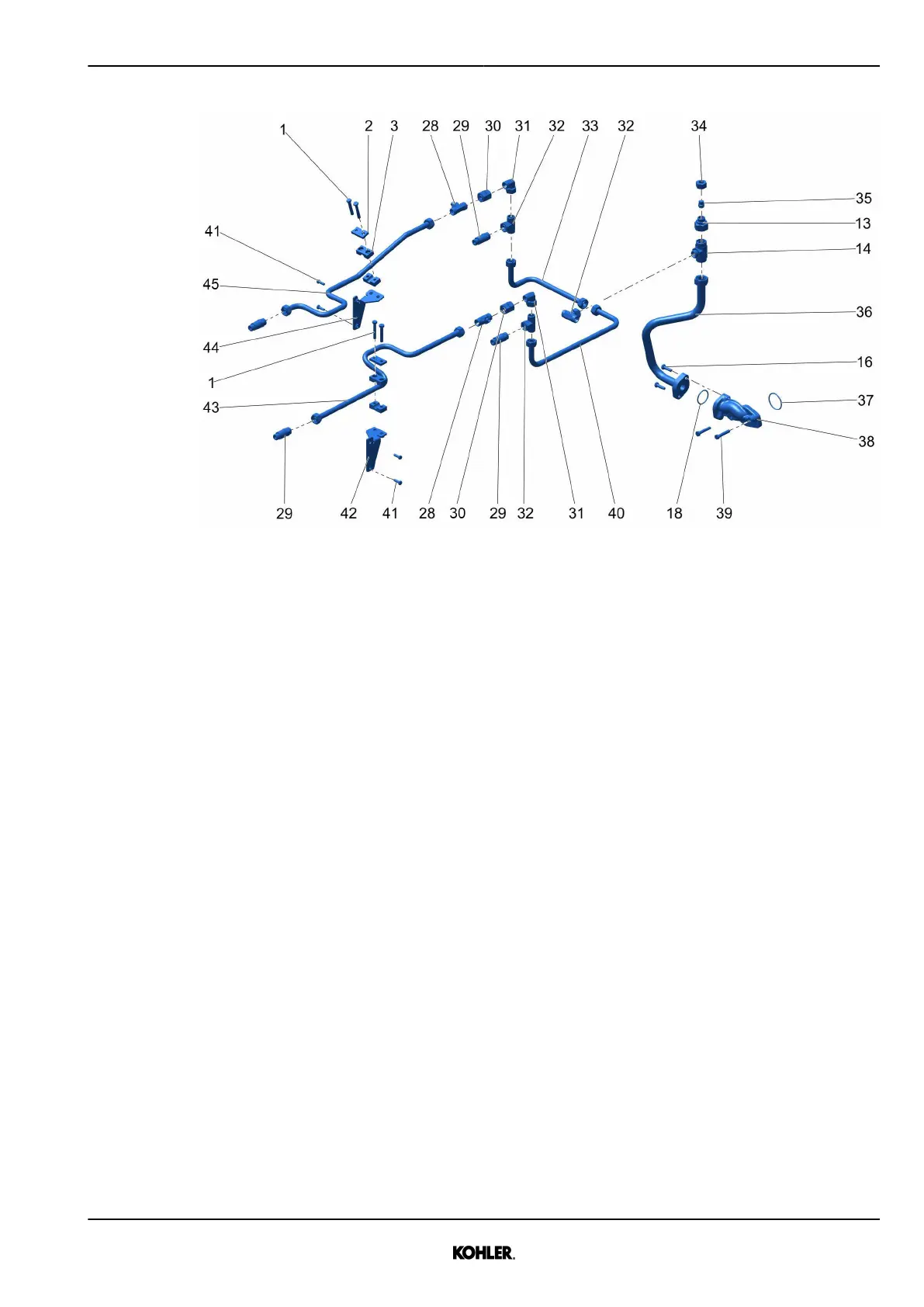

Fig. 244: Removing pipes
u Remove screws 1, 16, 39.
u Unscrew connection nuts of pipes 33, 36, 40, 43, 45.
u Remove pipes 33, 36, 40, 43, 45.
u Remove aggregate support connector 38.
u Disconnect fittings, flange joints, and connectors.
