Service and Repair Manual Repair
Cooling system
Overview

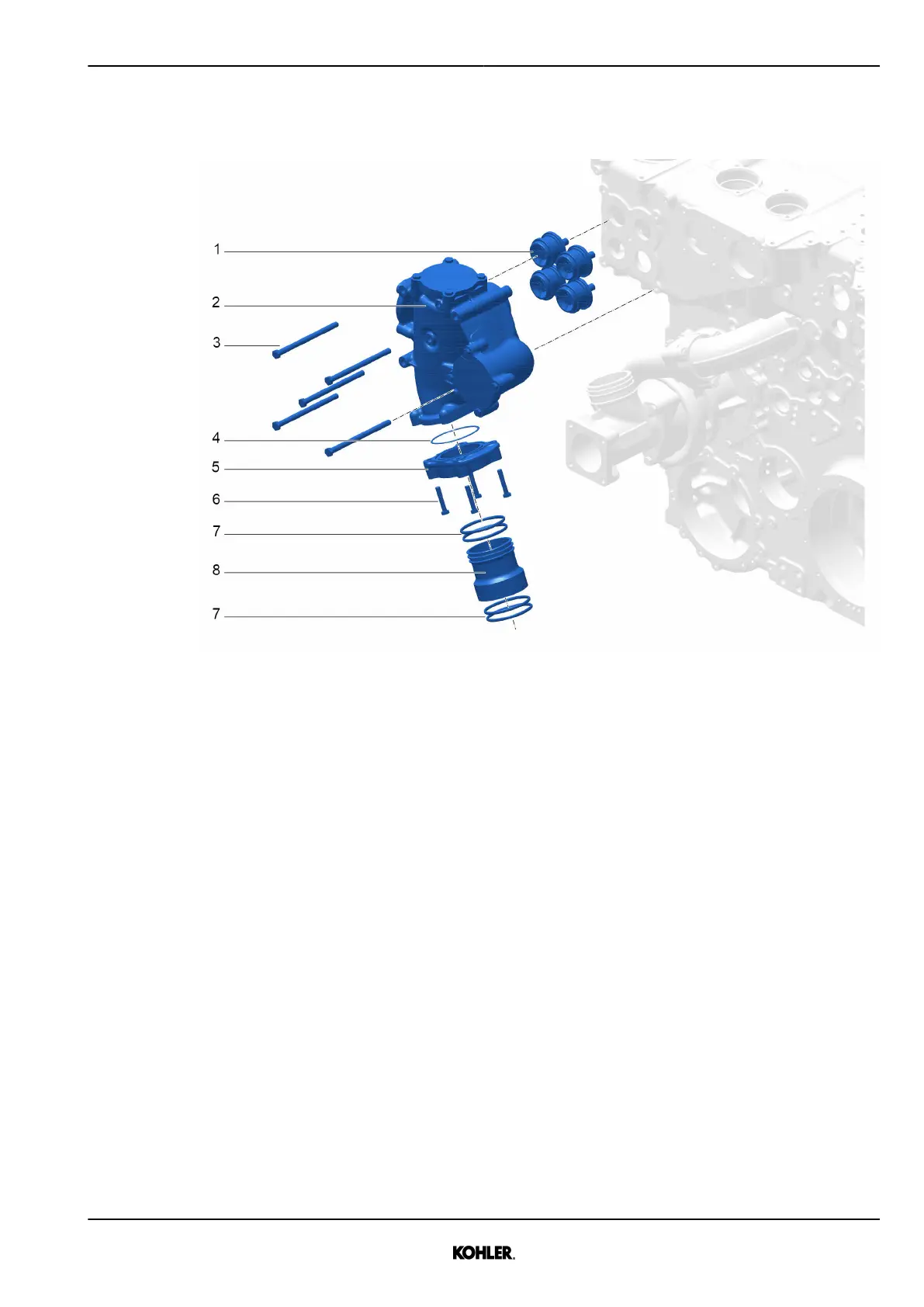

Fig. 258: Task overview
1 Thermostat 5 Flange
2 Thermostat housing 6 Screw (M10)
3 Screw (M12) 7 O-ring
4 O-ring 8 Pipe
Removal
u Remove two screws 3 diametrically opposed.
u Place guiding rods in place of the two screws 3.
u Remove remaining screws 3 and screws 6.
u Remove thermostat housing 2.
u Remove guiding rods.
u Remove thermostats 1.
u Remove pipe 8 with flange 5.
Installation
u Assemble pipe 8 and flange 7 with o-rings 4, 7.
u Insert o-rings 7 on coolant pump inlet.
u Position pipe assembly on coolant pump inlet.
u Position thermostats 1 in thermostats housing 2.
KD83V16 33525088901_2_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
229
