Service and Repair Manual Repair
Cooling system
Special tools
Special tool Designation
Guiding rod M12x100 - Coolant pump (x2)
Tab. 50: Special tools
Consumables and equipment
– Rags
– Cleaner
– Vaseline
Overview

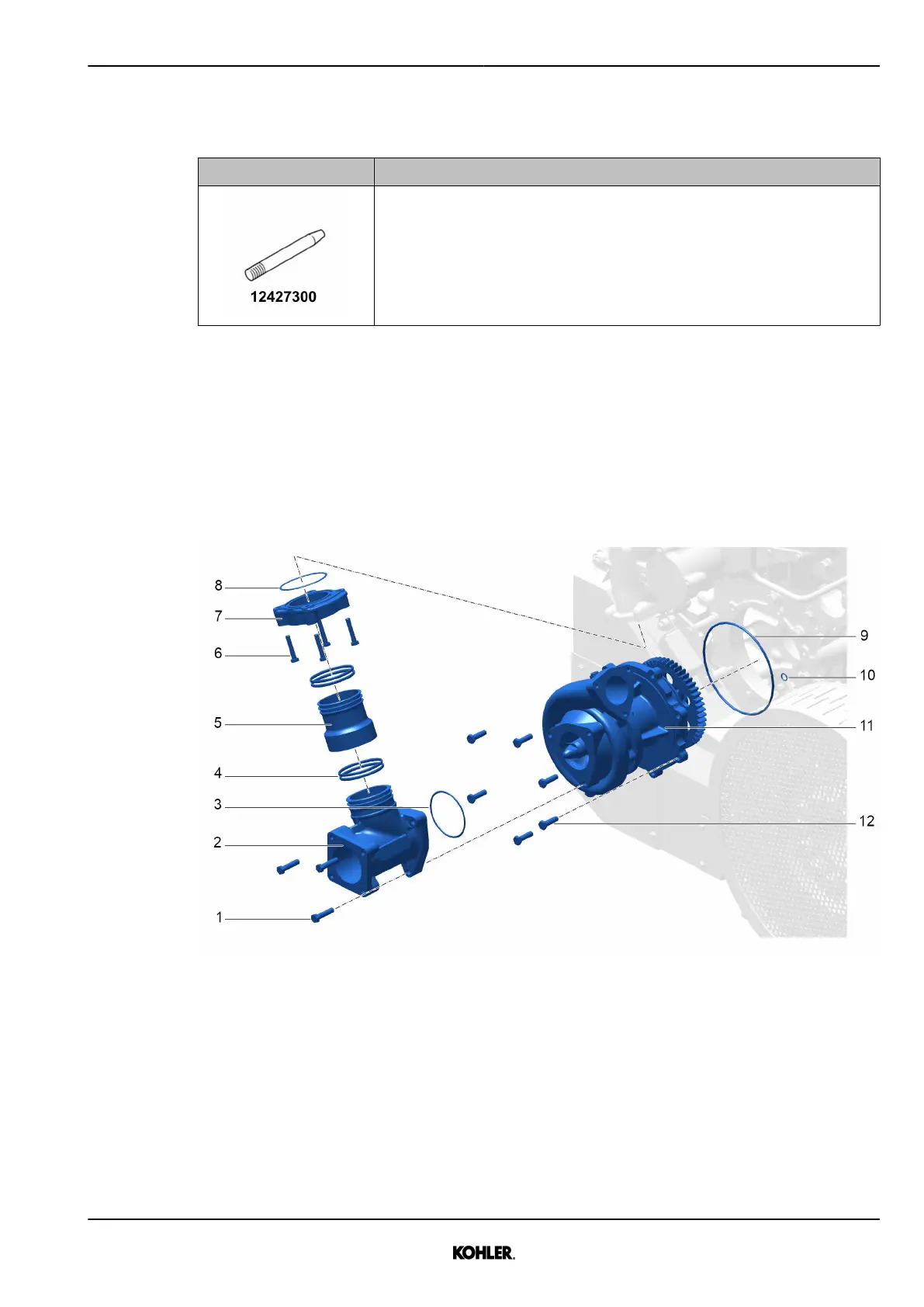

Fig. 262: Task overview
1 Screw (M12) 7 Flange
2 Branch pipe 8 O-ring
3 O-ring 9 O-ring
4 O-ring 10 O-ring
5 Pipe 11 Coolant pump LT
6 Screw (M10) 12 Screw
KD83V16 33525088901_2_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
233
