Service and Repair Manual Repair
Electrical system

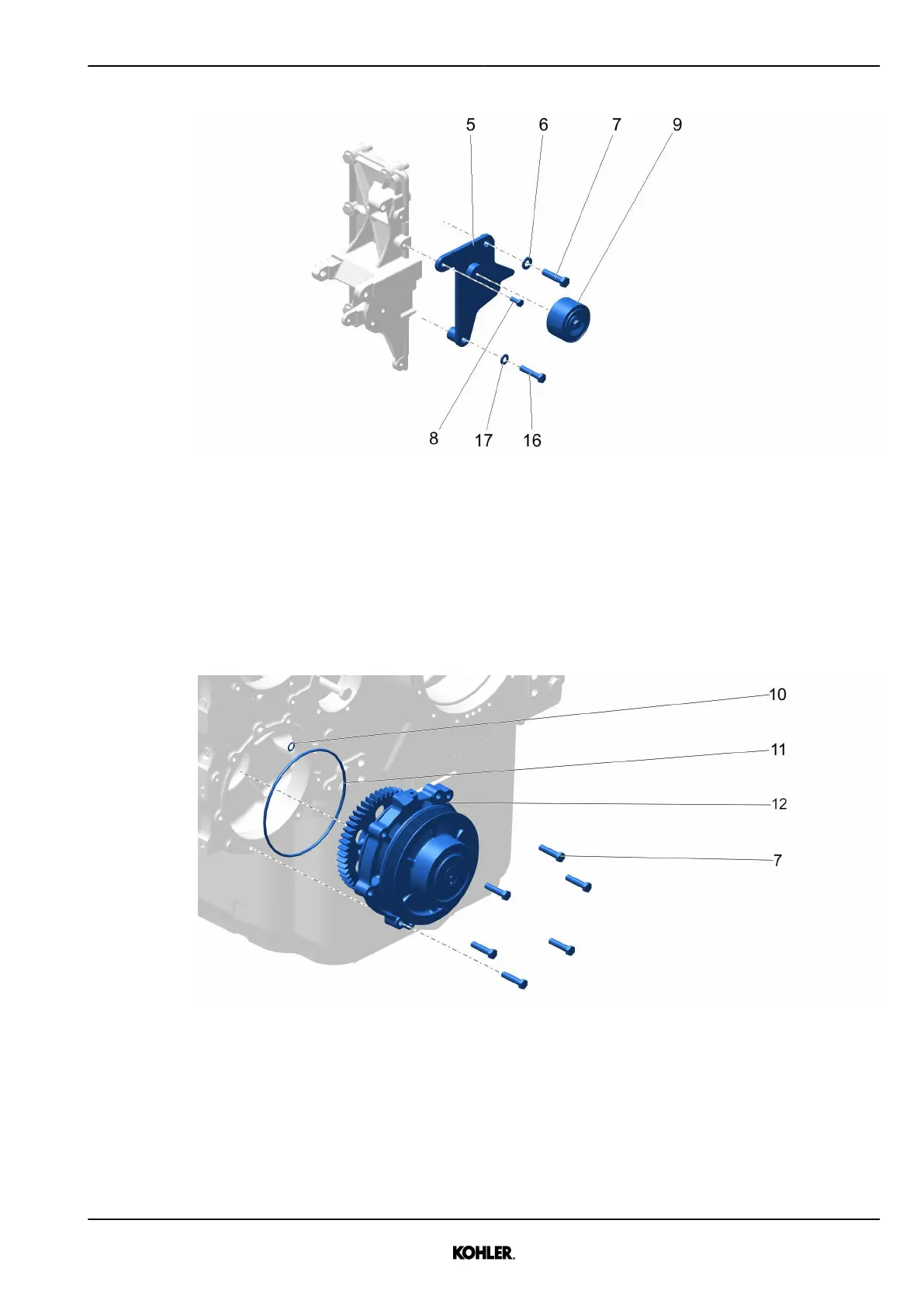

Fig. 278: Removing roller
u Loosen roller 9 fastening.
u Remove roller 9.
u Remove screws 7, 8, 16 and washers 6, 17.
u Remove plate 5.
Installation
Fig. 279: Installing auxiliary PTO
u Grease o-rings 10, 11.
u Insert o-rings 10, 11 in auxiliary PTO 12.
u Install auxiliary PTO 12 with screws 7.
KD83V16 33525088901_2_1 EN_US
2021-07
© 2021 by Kohler Co. All rights reserved.
245
